– AMF20/25, SW version 2.2, ©ComAp – September 2014 38
IL-NT-AMF-2.2-Reference Guide.pdf

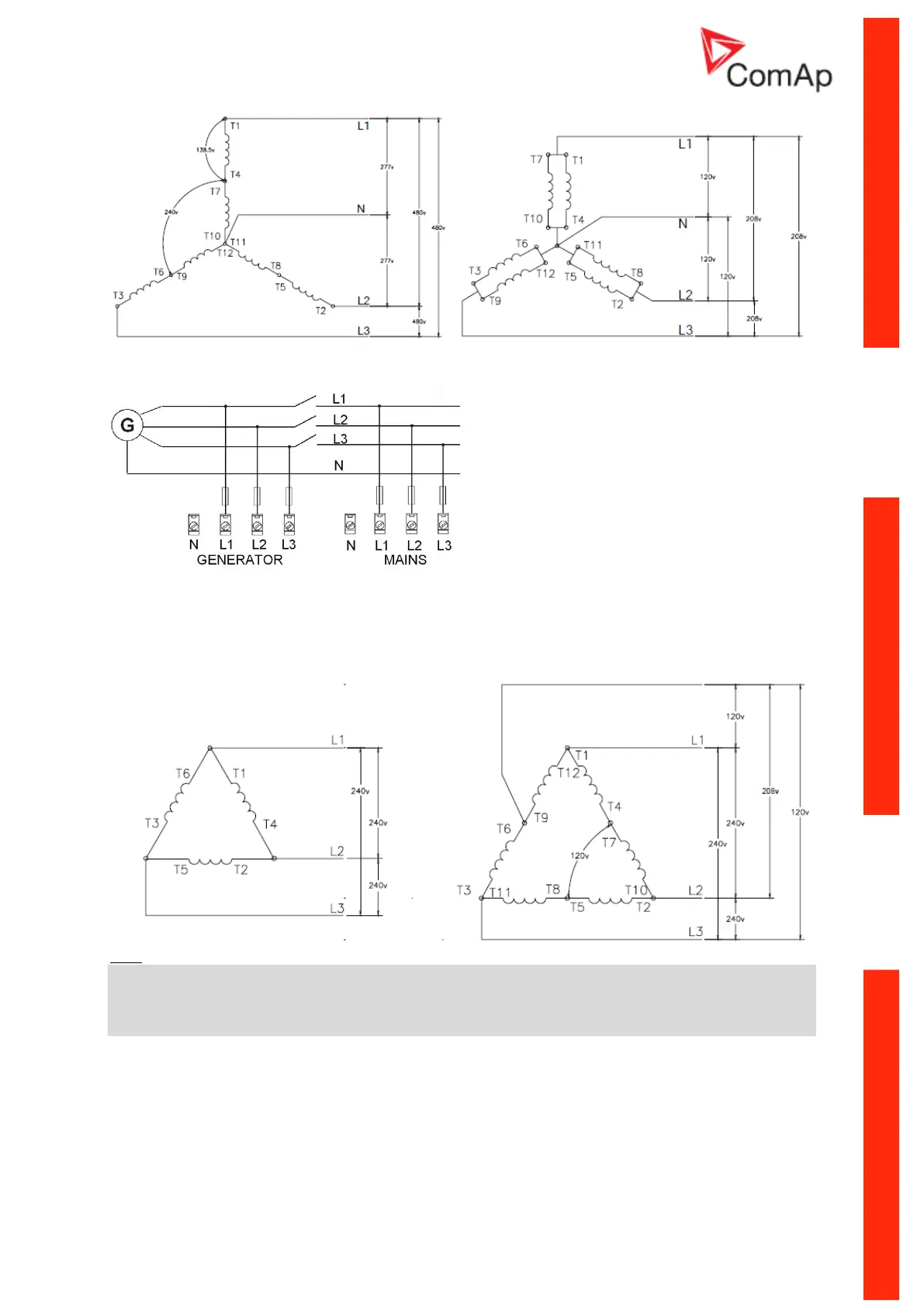

ConnectionType: 3 Phase 3 Wires
3 Phase 3 Wires
– DELTA Connection – HI-LEG (WILD-LEG, RED-LEG) DELTA
Connection
Hint:
Only L1, L2 and L3 wires should be connected. In case of HI-LEG (WILD-LEG, RED-LEG) DELTA
connection the N (neutral)
wire (in the diagram connected between T6 and T9) has to be disconnected.
No separation transformers for three wires voltage connection (without N) are needed.
