InteliLite
NT
– AMF20/25, SW version 2.2, ©ComAp – September 2014 39
IL-NT-AMF-2.2-Reference Guide.pdf

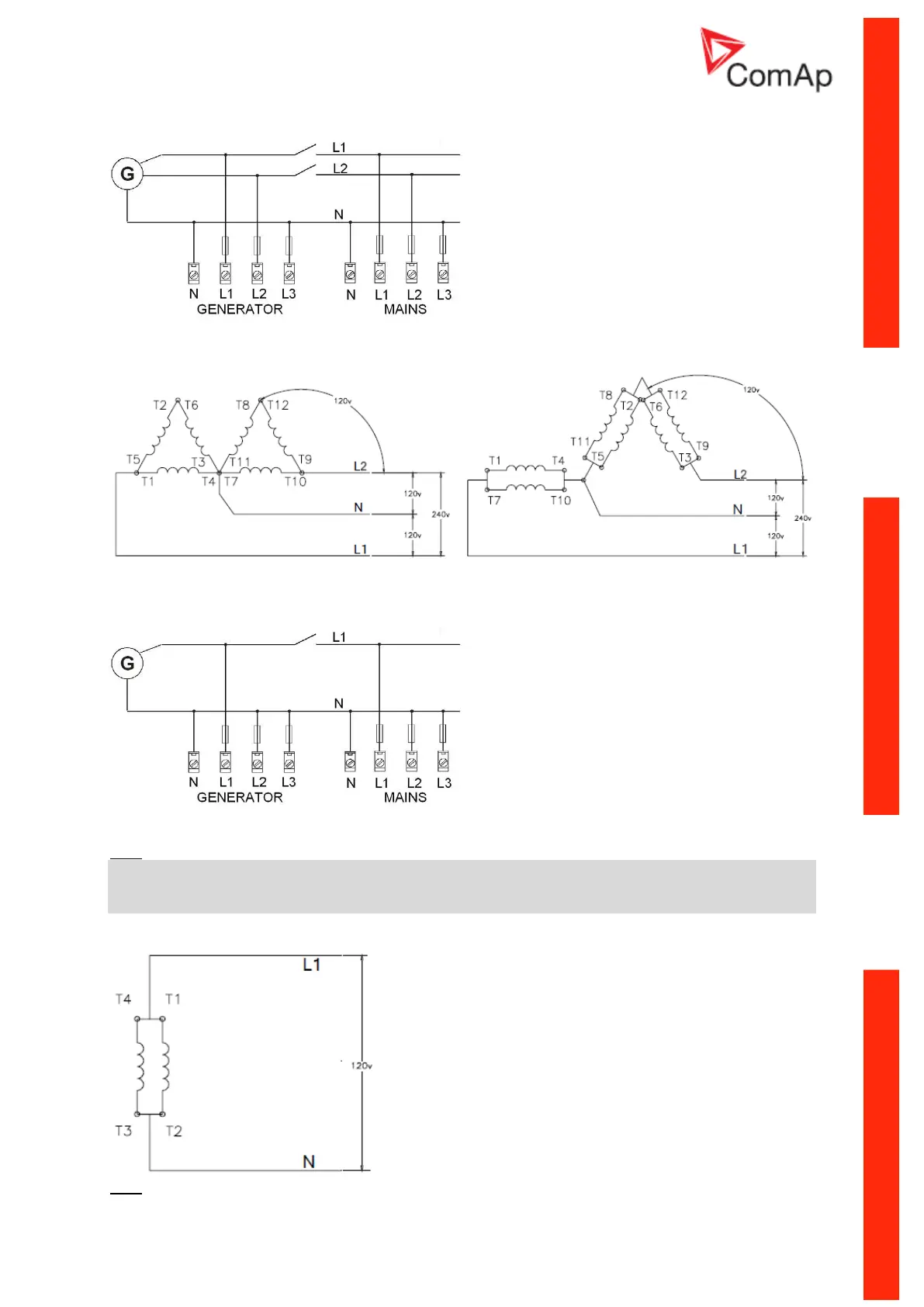

ConnectionType: Split Phase
Split Phase
– DOUBLE DELTA Connection – ZIG ZAG (DOG LEG) Connection
ConnectionType: Mono Phase
Single-phase measurement – 1PH
Hint:
There has been a change in wiring of monophase at voltage terminals between firmware IL-NT1.4 and
IL-NT1.5! Picture above shows connection for IL-NT 1.5. Wiring for older firmwares is described in
older IL-NT manuals, line L1 was connected to all three terminals L1,L2 and L3.
Mono Phase – MONOPHASE Connection
Hint:
