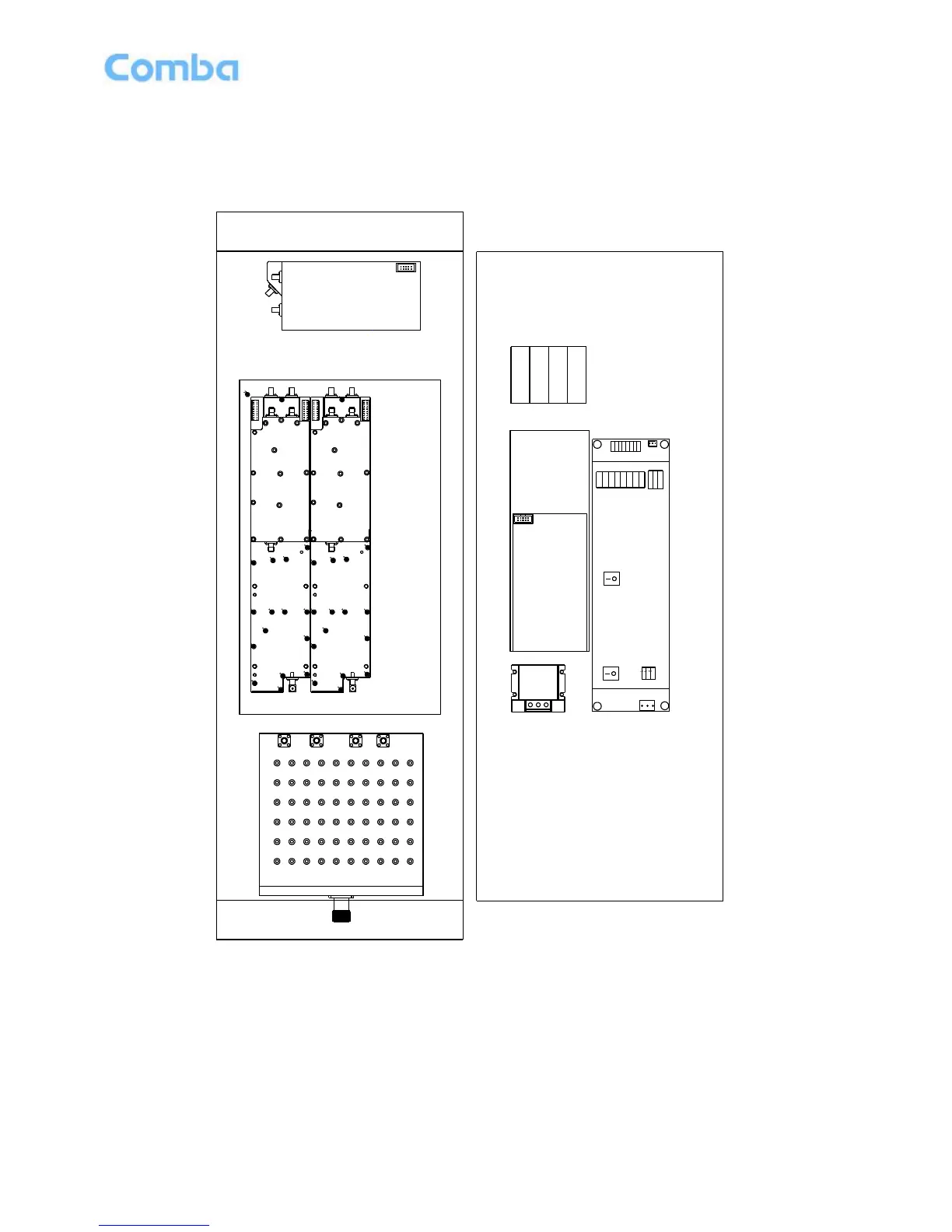

2.4 EQUIPMENT INTERNAL LAYOUT DIAGRAM
The internal layout for RU is shown below:
RX1 RX2
TX2
TX1
Li-ion Battery
GND
IN OK
OUT OK
28V+ JK+
BAT2+ BAT2-
JK-
9V+ 9V-
28V-
Optical TX/RX Module
800MHz LNA
1900MHz LNA
800MHz PA
1900MHz PA
MCU
PSU
Arrestor
Combiner
Figure 8: RU Layout Diagram
