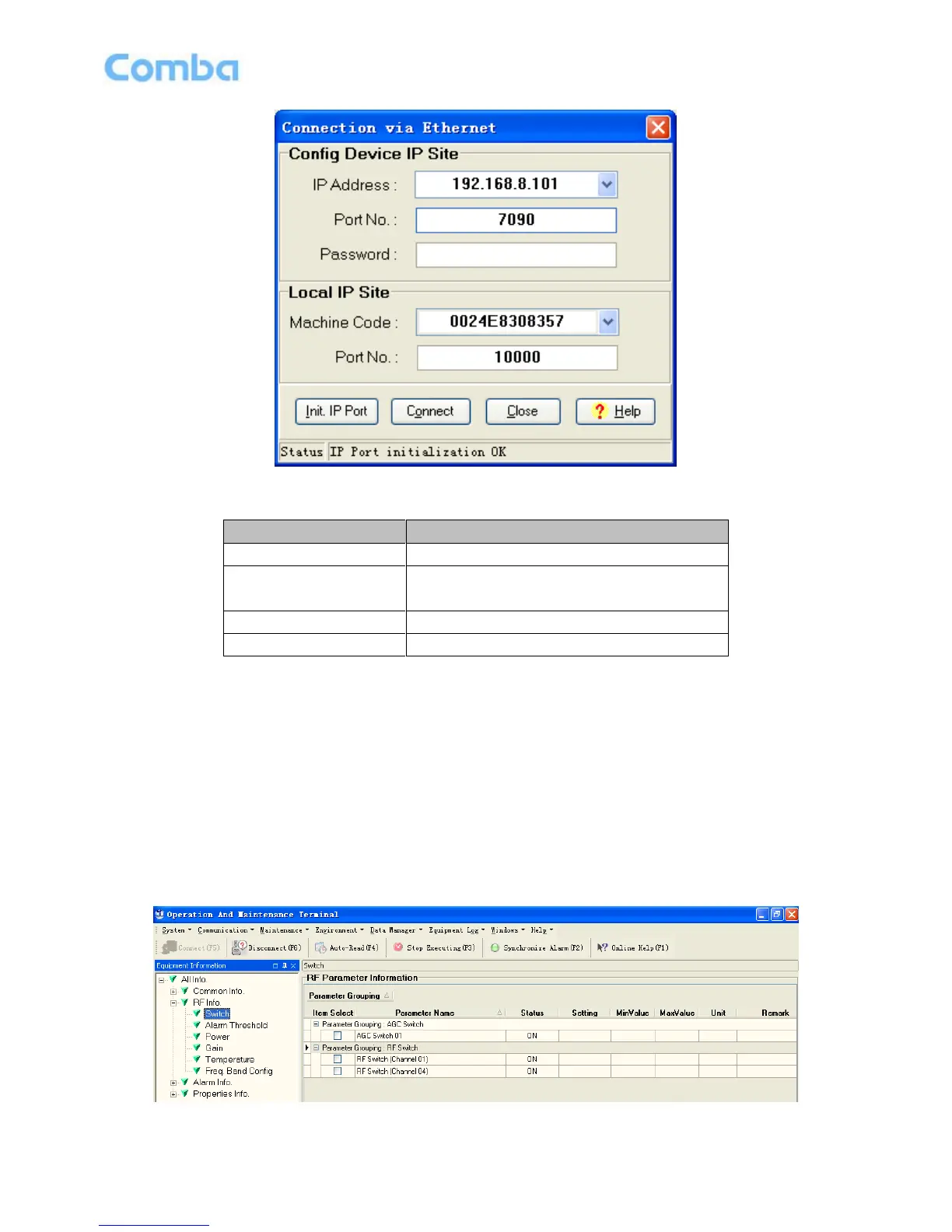

Figure 28: Connection via Ethernet
Table 10: IP Setting Quick Look-up Table
Items
Default Value
PC IP Address
192.168.8.X (X=1~100 or 102~254)
Device IP Site Port
NO.
7090 (defaults)
PC Subnet Mask
255.255.255.0
Repeater IP Address
192.168.8.101
Input the IP address and the Port No.and click “Connect”, it will enter into the main window of OMT.
5.2 RF INFORMATION
It is recommended to configure the following RF parameters for the first installation.
Switch
Switch is to enable/disable power for internal modules. When user checks and sets non-RF parameters,
such as checking physical antenna connection, switching off will disable equipment power temporarily to
protect PA in operation.
Figure 29: MU Switch
