Comelit SIMPLEBUS 2 - 2-Door Video System Installation and Standby Voltage

GROUP S.P.A.
30
FT SB2 24
10
A Max B Max C Max
1 mm
2
(Ø 1.2 mm AWG 17)
200 m
(650 feet)
200 m
(650 feet)
60 m
(195 feet)
0,5 mm
2
(Ø 0.8 mm AWG 20)
200 m
(650 feet)
0,2 mm
2
(Ø 0.5 mm AWG 24)
150 m
(495 feet)
80 m
(260 feet)
40 m
(130 feet)
0,28 mm
2
(Ø 0.6 mm AWG 23)
150 m
(495 feet)
100 m
(325 feet)
40 m
(130 feet)
0,5 mm
2
(Ø 0.8 mm AWG 20)
100 m
(325 feet)
120 m
(390 feet)
40 m
(130 feet)
1 mm
2
(Ø 1,2 mm AWG 17)
150 m
(495 feet)
120 m
(390 feet)
40 m
(130 feet)
80 m
(260 feet)
120 m
(390 feet)
30 m
(100 feet)
1,5 mm
2
(Ø 1,4 mm AWG 15)
100 m
(325 feet)
150 m
(495 feet)
40 m
(130 feet)
5801
5701
1
2
3
4
5
6
1214/2G
4888
1216
1395
A Max
B Max
C Max
Comelit Art. 4577
Comelit Art. 4576-4578
UTP5 cat. 5
Installatie 2 video-entreepanelen Powercom en spanningsindicatie van een systeem in de ruststand.
Impianto 2 porte video con pulsantiera Powercom e indicazioni tensioni di impianto a riposo.

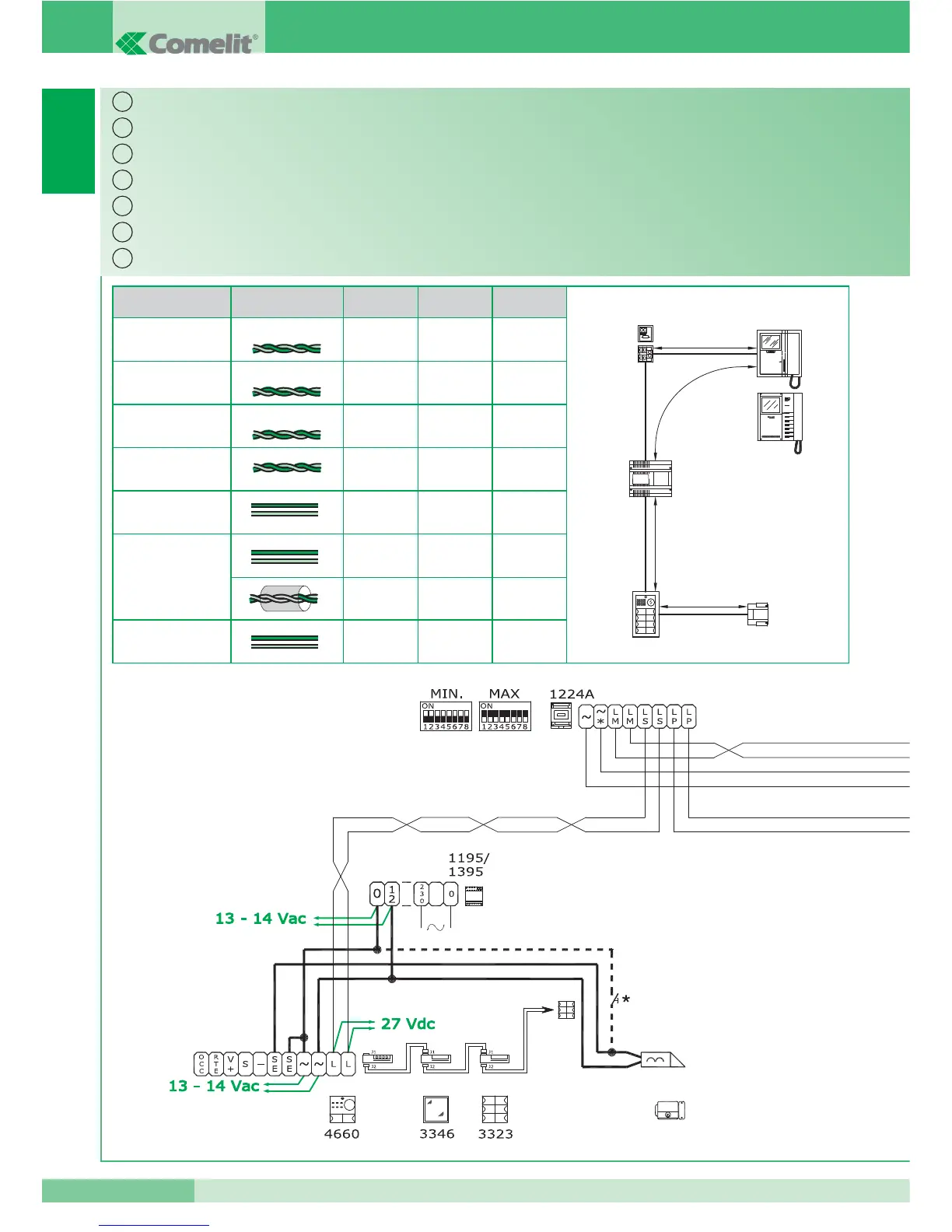

System with 2 Powercom entrance panels and voltage indicator of unit on stand-by.
Installation 2 portes vidéo avec plaque de rue Powercom et indication tensions d'installation au repos.
Anlage 2 Video-Türen mit Tastatur Powercom und Spannungsangaben der Anlage in Stand-by.
Instalacion 2 puertas vídeo con caja de pulsadores Powercom e indicación tensiones con la instalación en reposo.
Videosystém - tablo Powercom 2 vchody - hodnoty napetí v režimu Stand-by.
IT
EN
FR
NL
DE
ES
CZ
