Appendix A - Silicagel replacement instruction
Breather’s silicagel replacement instruction for hidraulic
closing
1. Unscrews the two A2 screws of the hose clamp on the
air breather bottom part.
2. Remove the breather’s oil pocket and empty it.
3. Leave these parts unassembled .
4. Unscrew the n. 3 screws of the upper cup and remove it.
5. Remove the gasket which is placed on the cross
6. Turn the breather upside down and empty it.
7. Keep the breather upside down and blow inside it
with compressed air to remove dust and/or all silicagel
crystals.
8. Fill the breather up with the same quantity of silicagel.
9. Put back the gasket on the cross.
Breather’s silicagel replacement instruction for
mechanical closing
1. Unscrew the n. 3 screws of the upper cup and remove it.
2. Remove the gasket which is placed on the cross.
3. Turn the breather upside down and empty it.
4. Keep the breather upside down and blow inside it
with compressed air to remove dust and/or all silicagel
crystals.
5. Fill the breather up with the same quantity of silicagel.
6. Place back the gasket on the cross.
7. Screw in the upper cap with the n. 3 screws.
This document is issued by means of a computerized system.
The digitally stored original is electronically approved. The
approved document has a date entered in the `Approved'-field.
A manual signature is not required.
We reserve all rights in this document and in the information
contained therein. Reproduction, use or disclosure to third
parties without express authority is strictly fobidden.
F
E
D
C
B
8765432
A
1 109 11 12
G
H
1 2 3 4 5 6 7 8 9 10 11 12
A
B
C
D
E
F
G
H
DRAWING SHEET ISO 5457:1999-A2T
200 5
180 3
97
G 1/2"
97
G 1/2"
140±3
3/3 2
A
Development
NE-1086
SHEETITERREVSTATUSDOCUMENT ID
ITABB-9AAE306693
GUARNIZIONI NBR-40°C
RESPONSIBLE DEPARTMENT
COMEM CONVENTIONAL BREATHERS
COMEM
TITLE / SUPPLEMENTARY TITLERESPONSIBLE COMPANY
Component Drawing-
PROJECT IDWORK ORDER IDBASED ON DOC IDDOCUMENT KINDAPPROVED ON
- -Diego Boro
APPROVED BYREVIEWED BYCREATED BY
© COPYRIGHT ALL RIGHTS RESERVED
97
G 1/2"
This document is issued by means of a computerized system.
The digitally stored original is electronically approved. The
approved document has a date entered in the `Approved'-field.
A manual signature is not required.
We reserve all rights in this document and in the information
contained therein. Reproduction, use or disclosure to third
parties without express authority is strictly fobidden.
F
E
D
C
B
8765432
A
1 109 11 12
G
H
1 2 3 4 5 6 7 8 9 10 11 12
A
B
C
D
E
F
G
H
DRAWING SHEET ISO 5457:1999-A2T
G
L1
D
D
L
H
D1
F
100
21
70
= =
14
R
E
1/3 2
A
Development
NE-1086
SHEETITERREVSTATUSDOCUMENT ID
ITABB-9AAE306693
GUARNIZIONI NBR-40°C
RESPONSIBLE DEPARTMENT
COMEM CONVENTIONAL BREATHERS
COMEM
TITLE / SUPPLEMENTARY TITLERESPONSIBLE COMPANY
Component Drawing-
PROJECT IDWORK ORDER IDBASED ON DOC IDDOCUMENT KINDAPPROVED ON
- -Diego Boro
APPROVED BYREVIEWED BYCREATED BY
© COPYRIGHT ALL RIGHTS RESERVED

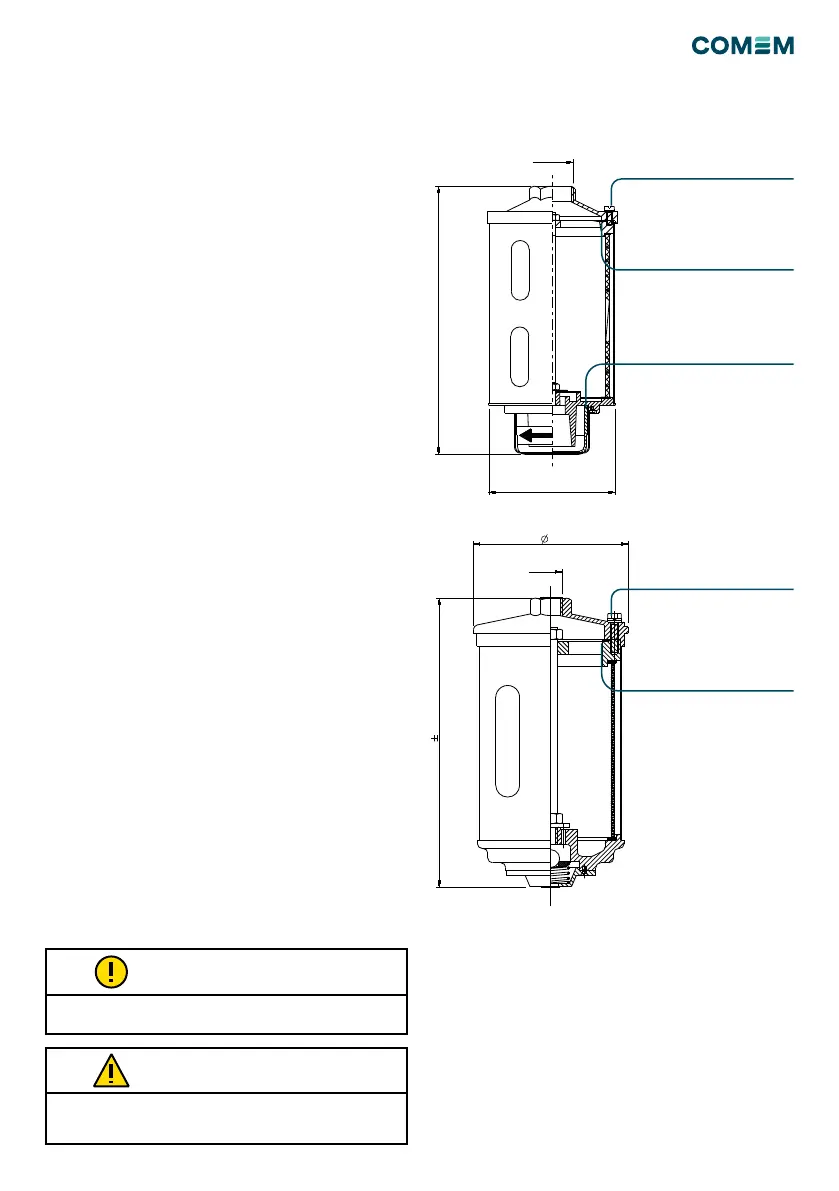

View "A"
