COVER series MZ – User manual
COMEX S.A.

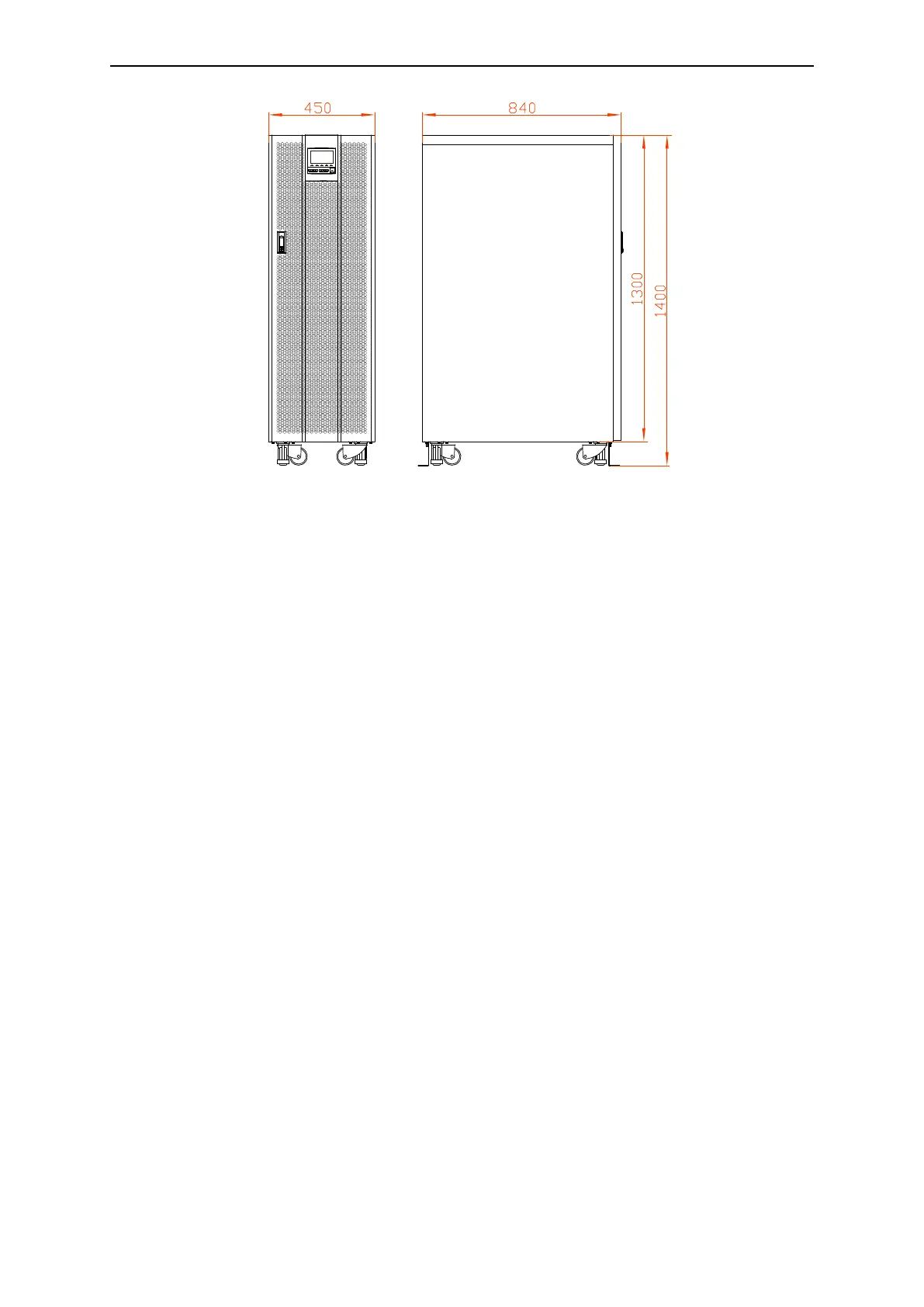

Figure 2-4 The front / side view of the MZ 80K UPS
2.4.3. Service space
There are no ventilation openings on the side walls of the power supply, therefore no free space
is required from the side for ventilation purposes. However, for access to the device from each
side, it is recommended to keep min. 50 cm of service space.
It is required to provide adequate space from the front of the power supply for easy operation
and the possibility of drawing cold air from the environment. Recommended space from the
front 80 cm. Due to the required access to the back of the power supply and the free air blow
and circulation, the recommended space from the back of the power supply is 50 cm.
