COVER series MZ – User manual
COMEX S.A.

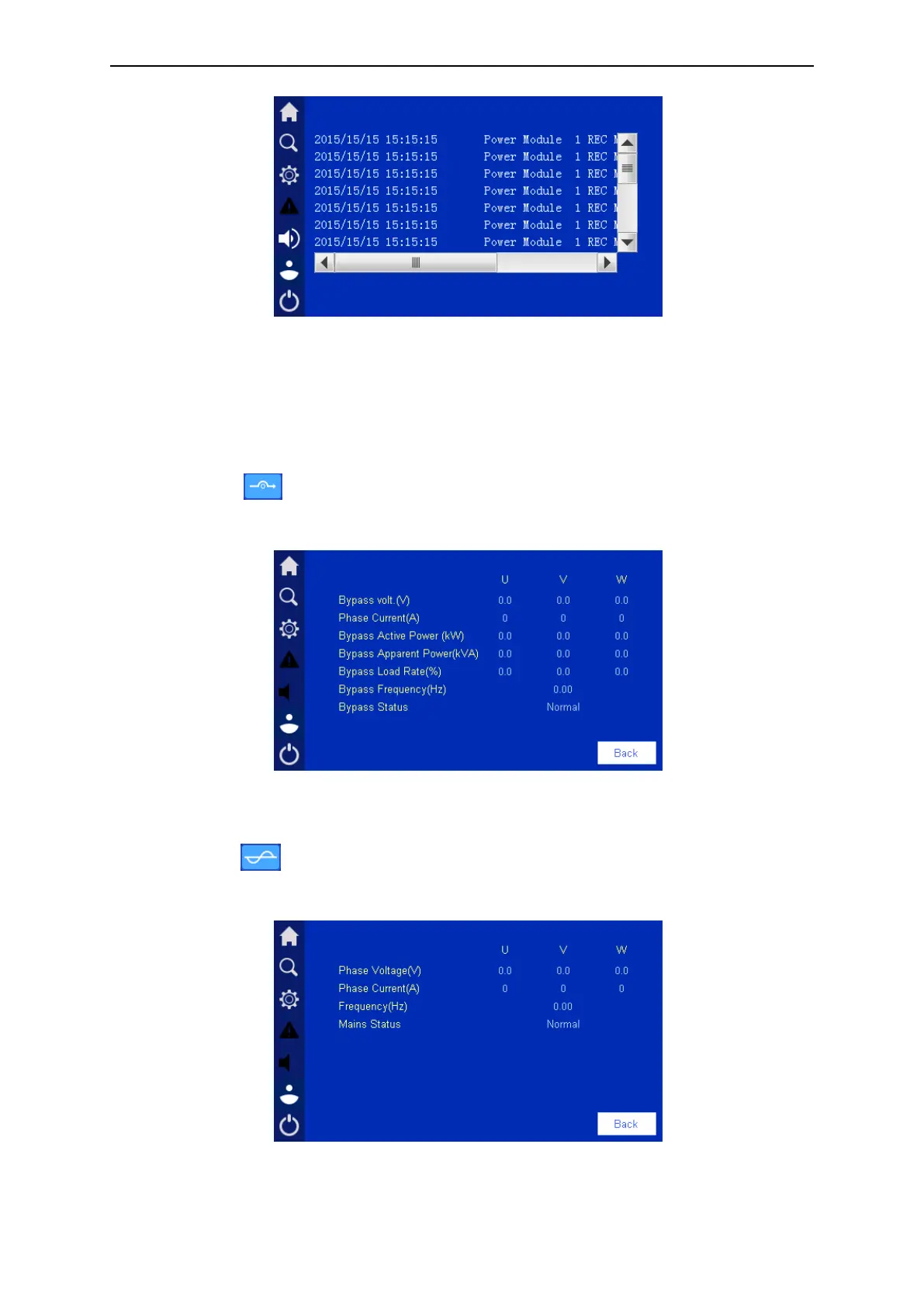

Figure 5-14 Window recorded error / failure
5.3. Reading work parameters
5.3.1. Power supply to bypass track
Clicking the icon on the main page of the display, it allows you to go to the preview of
power supply parameters of the bypass. Available parameters are described in the display
picture below:
Figure 5-15 Information on the bypass power supply
5.3.2. Power supply to the rectifier's track
Clicking the icon on the main page of the display, allows you to go to the preview of the
power supply parameters of the rectifier circuit. Available parameters are described in the
display picture below:
Figure 5-16 Information about powering the rectifier track
