2.6. Power cords
The main factors that influence the selection of wires are the supply voltage, the current, and
the room temperature and cable installation conditions.
The system power cords must be selected in accordance with applicable regulations at the place
of installation and be consistent with the following description:
The input power supply cables must be matched to the maximum input current and the
maximum battery charging current indicated in the table below, taking into account the power
rating of the power supply and the AC input voltage.
The output and bypass cables must be matched to the rated output current given in the table,
taking into account the power rating of the power supply and the AC output voltage.
Battery cables must be matched to the discharge current of the battery at the voltage at the
end of discharge, given in the table, taking into account the power rating of the PSU.
The terminal strip for connecting the power / supply wires is located on the front of the power
supply. On the strip, screw-eye connections are used.
The cable connection is located on the bottom of the power supply shown in Figure 2-7.

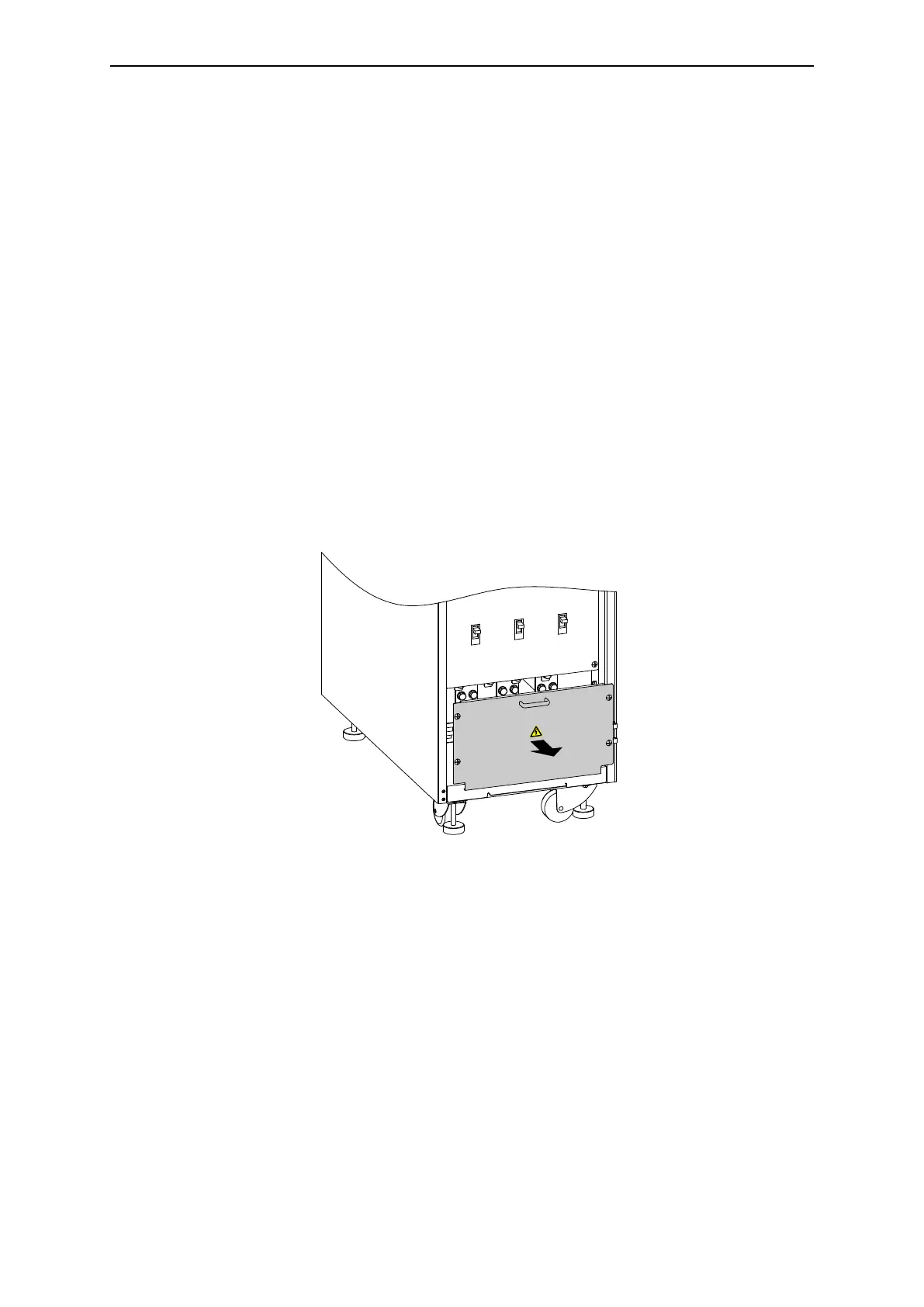

Figure 2-7 View of the front wall of the power supply and the place where the wires are connected
