5. LCD panel operation
The following chapter describes the functions and capabilities of the operator panel in the
power supply, including key functions and available information from the level of the LCD touch
screen.
5.1. Introduction
The UPS control panel with the LCD display is located on the front panel of the UPS. The LCD
display provides the user with full access to the control of the operating status, switching
between operating modes as well as the control of work parameters and event recording. The
following is the appearance of the home page of the display and the meaning of individual icons
that may appear on it.

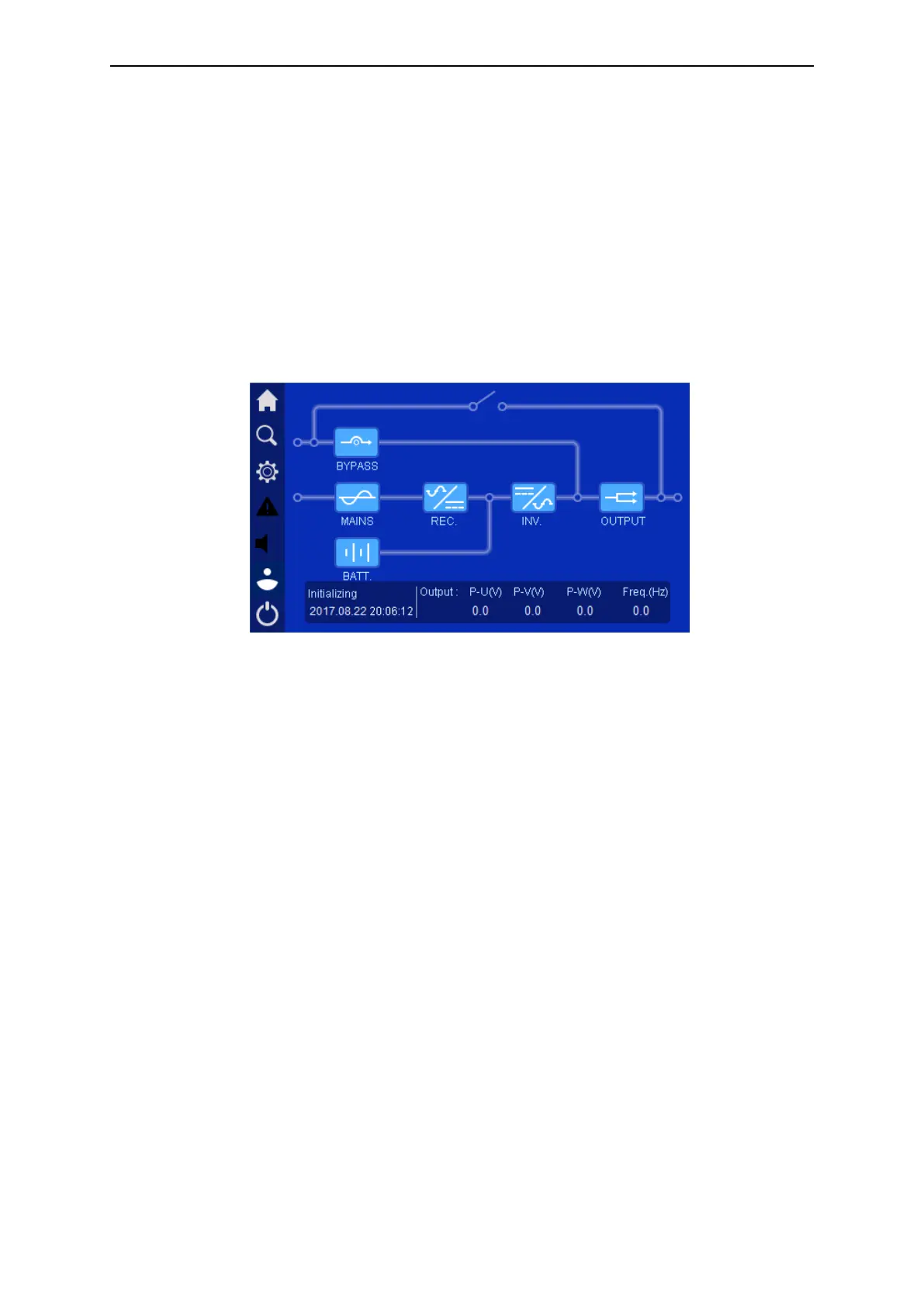

Figure 5-1 Touch display
Table 5-1 Description of symbols used on the power supply's operation panel
