Installation

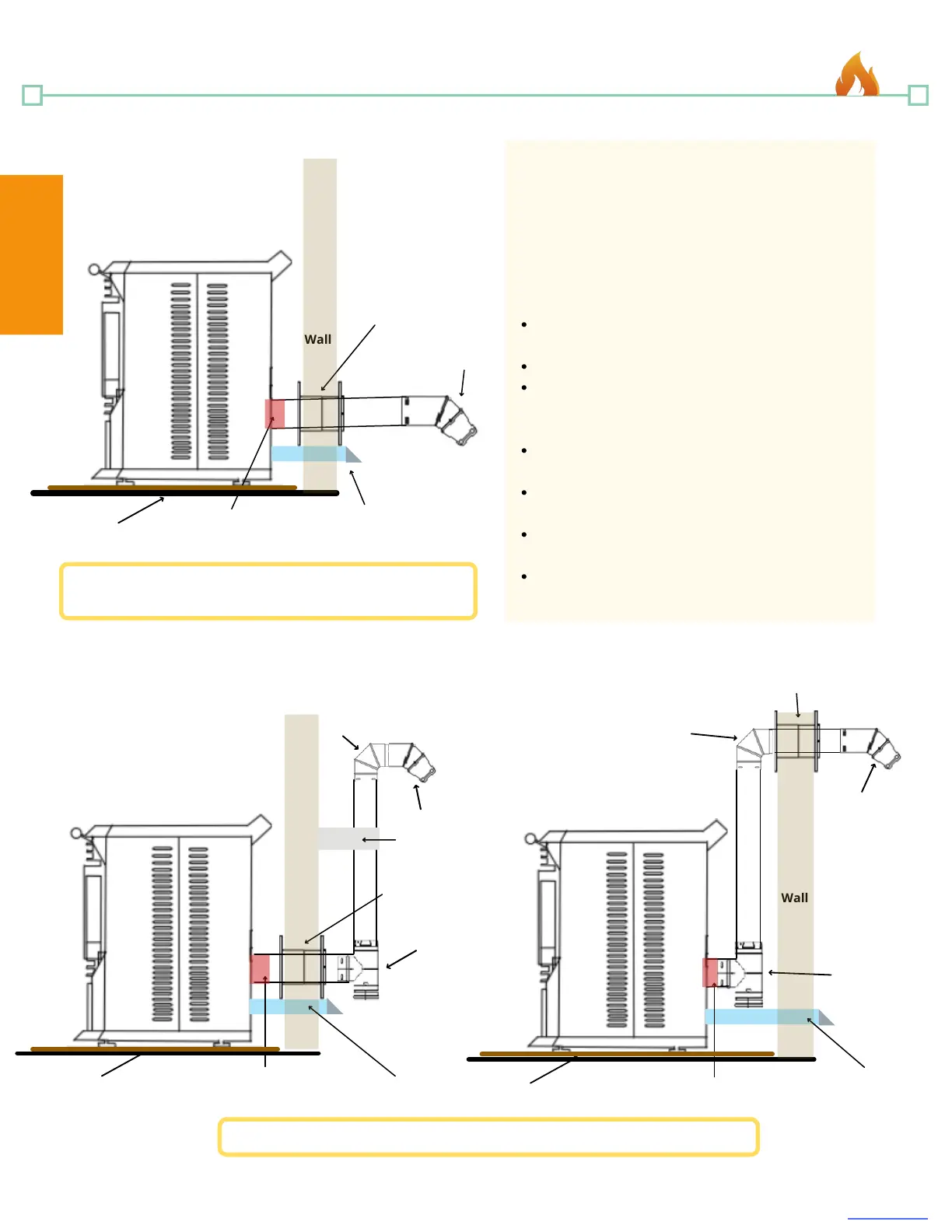

Simple Horizontal Installation
Installation
Exhaust cap
Exhaust cap
Exhaust cap
Wall
Clean-out Tee
Clean-out Tee
Wall Thimble
Wall Thimble
90° Elbow
90° Elbow
Wall
Wall strap
Floor Protection
Floor Protection
Simple Vertical Installation (preferred)
Wall Thimble
Wall
Floor Protection
Appliance Adapter
Appliance Adapter
Appliance Adapter Air Intake
Air Intake
Air Intake
The stove must be permanently attached to the
floor.
Stove must have an outside air source.
Stove must be electrically grounded to the steel
chassis of the mobile home, unless grounded
or GFCI power outlets are provided.
All vertical chimney vents must have wall
supports.
All exhaust systems must have a spark
arrestor.
Check with local building officials to see if other
codes may apply.
Structural integrity of the floor, wall and
ceiling/roof must be maintained.
Mobile Home Installation
Installation in a mobile home should be in
accordance with the manufactured home and
safety standard (HUD), CFR 3280, Part 24. This
stove must be vented to the outside. In addition to
the standard installation instructions, the following
requirements are mandatory for installation in a
mobile home:
Notice: Excessive embers/sparks can exit exhaust cap if
less than 4 ft of venting is used with no vertical rise.
Notice: For Canada, the installation must conform to CAN/CSA-B365
