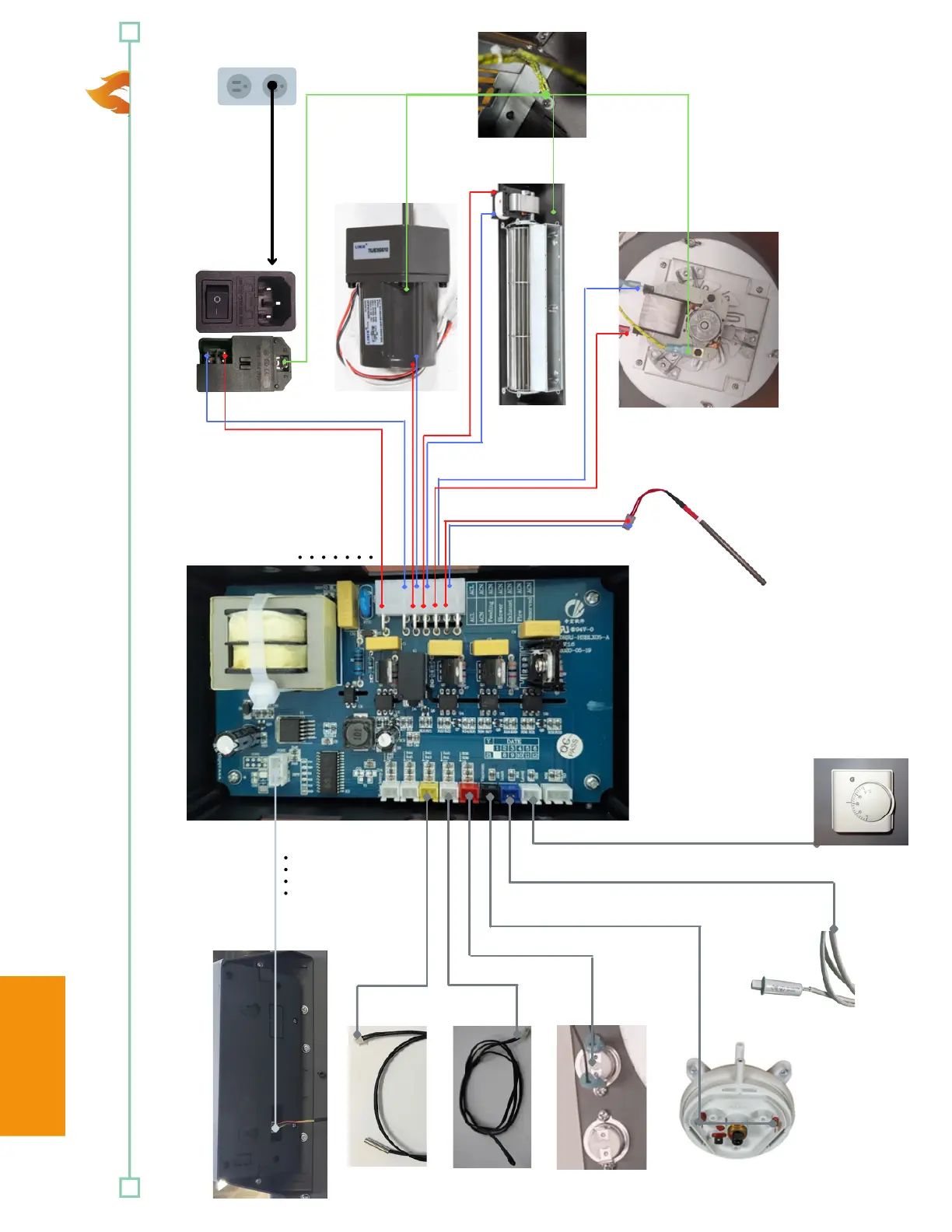

Comfort Bilt HP21 - Wiring Diagram

Wiring Diagram
Wiring Diagram
120V Power Outlet
3-prong Power Cable
Power Switch Assembly Block
Fuse
Chassis Bonding Point
Back
Front
Main Motherboard / Circuit Board
4-wire Data Cable
TX
RX
VCC
GND
Hot (ACL) Common (ACN) Auger (Feeding) Blower Fan (Blower) Combustion Fan (Exhaust) Igniter (Fire) N/A (Reserved)
Wiring Harness
Control Panel
Auger
Blower Fan
Combustion Fan
92C Overheat Sensor
Room Temperature Sensor
Proof of Fire Sensor
Vacuum Pressure Sensor
Igniter
Hopper Lid Switch
Optional
Remote
Thermostat
