Note that the machine components are heavy.
Please place it on a stable platform before installation to prevent accidents and avoid causing
harm to person and objects.

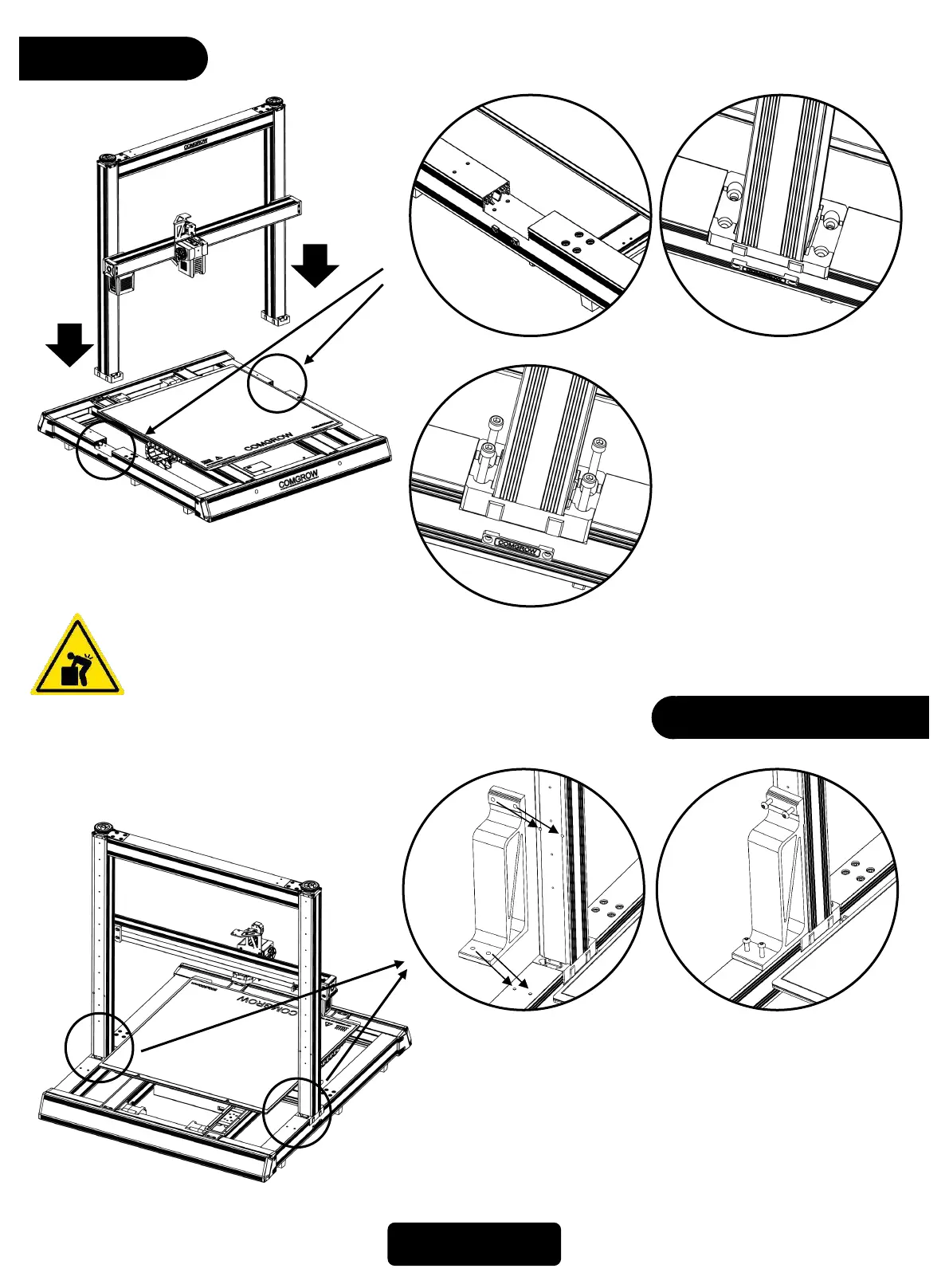

1. Install the gantry frame
into the grooves on the
left and right ends of
the base. Use four
M5X35 screws to
secure each side,
totaling eight screws.
The extruder kit should face the front
of the machine.
1
3
4
2
1. Install the support base on the back of the machine,
at the connection point between the gantry frame
and the base. Use four M5X18 screws on each
side, totaling eight screws.
The support base is not left or right-specific.
Gantry
Support Base
04
