Comm-Tec DaisyNET-TX - System Settings and Updates

Page 15 Vers. 1.0
※ Setting Instruction:

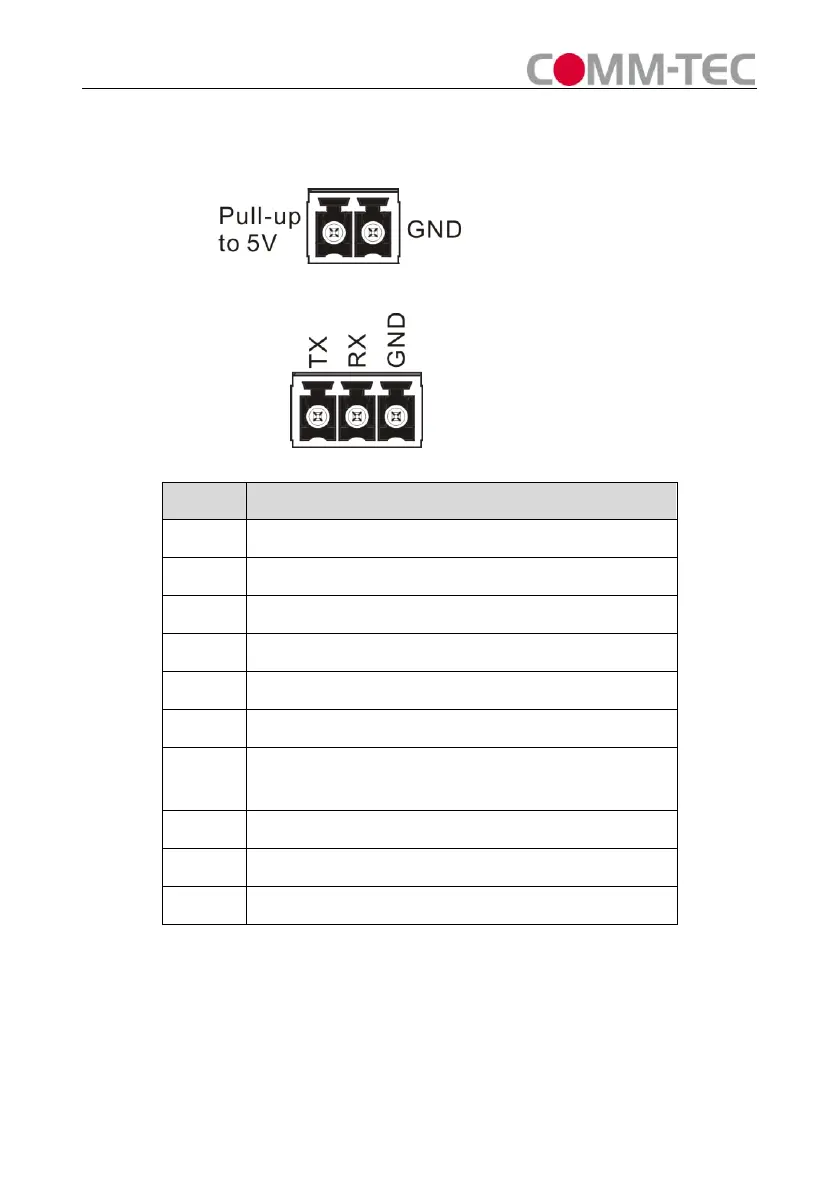

1. Pin definition of extend port for “ShowMe”
2. Pin definition of RS232 Port
3. EDID and Update Switcher Instruction of DaisyNET-TX
#
Function
0
1080P stereo (Using Embedded EDID) (note1)
1
1080P 5.1ch (Using Embedded EDID) (note1)
2
1080P 7.1ch(Using Embedded EDID) (note1)
3
1080P 3D stereo (Using Embedded EDID) (note1)
4
1080P 3D 5.1ch (Using Embedded EDID) (note1)
5
1080P 3D 7.1ch (Using Embedded EDID) (note1)
6
Using the specified EDID (Can upload EDID data to
DaisyNET-TX via RS232/RS485) (note2)
7
Upgrade for HDBT RX chip (note3)
8
Upgrade for HDBT TX chip (note4)
9
Upgrade for MCU (note5)
