AMIGA 1000 ASSEMBLY LEVEL REPAIR

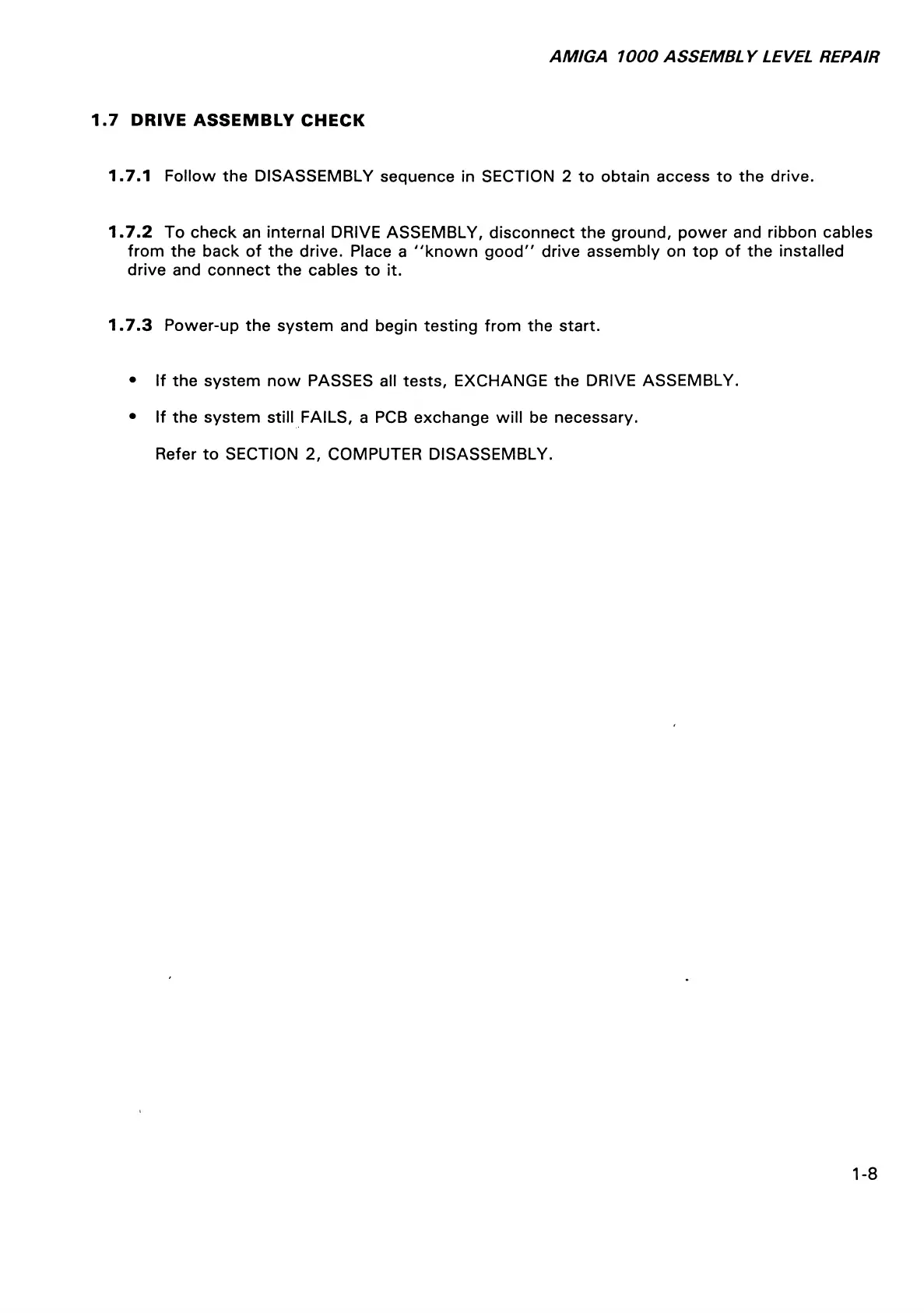

1.7 DRIVE ASSEMBLY CHECK
1.7.1 Follow the DISASSEMBLY sequence in SECTION 2 to obtain access to the drive.
1.7.2 To check an internal DRIVE ASSEMBLY, disconnect the ground, power and ribbon cables
from the back of the drive. Place a "known good" drive assembly on top of the installed
drive and connect the cables to it.
1.7.3 Power-up the system and begin testing from the start.
• If the system now PASSES all tests, EXCHANGE the DRIVE ASSEMBLY.
• If the system still FAILS, a PCB exchange will be necessary.
Refer to SECTION 2, COMPUTER DISASSEMBLY.
1-8
