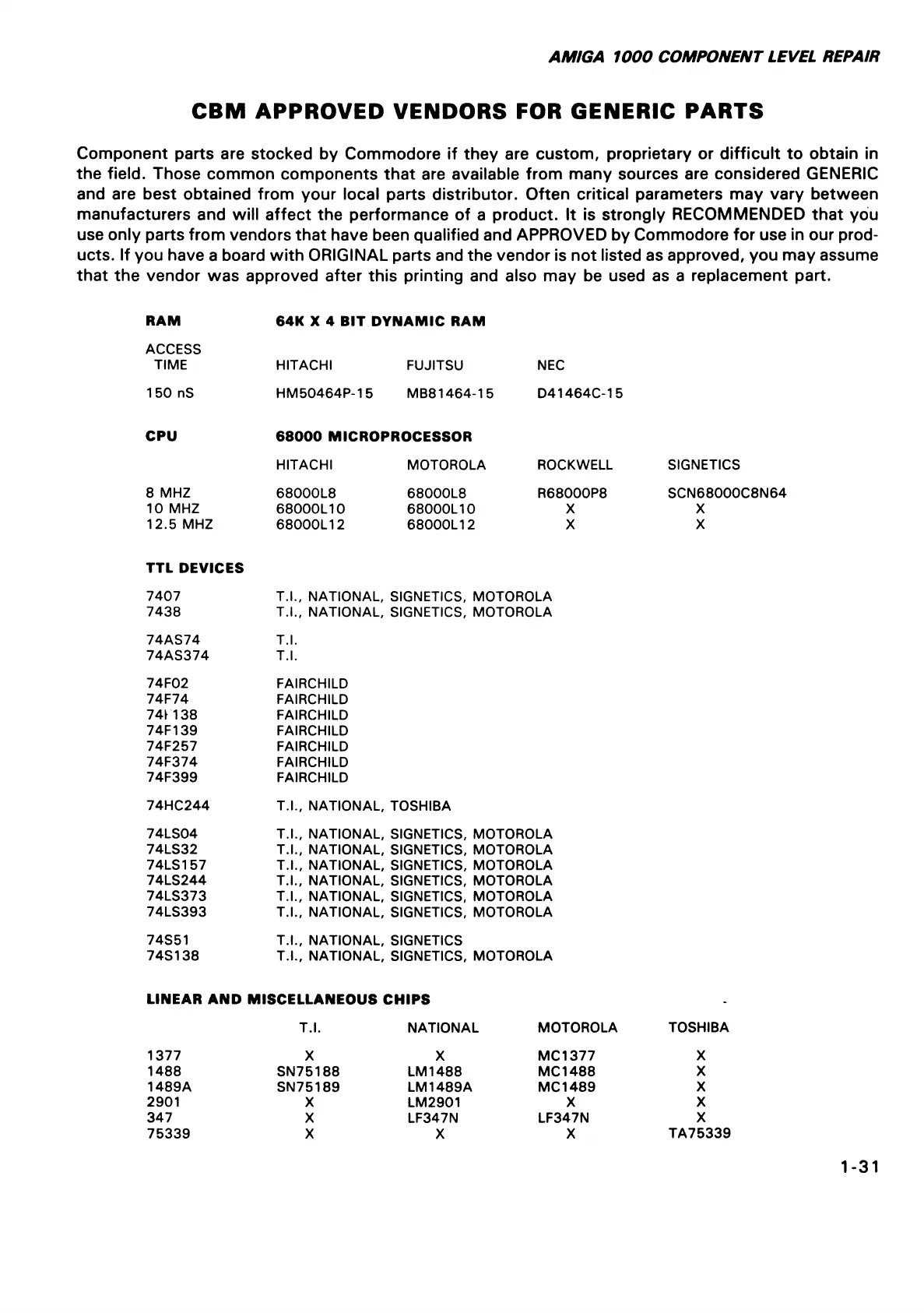

AMIGA 1000 COMPONENT LEVEL REPAIR
CBM APPROVED VENDORS FOR GENERIC PARTS
Component parts are stocked by Commodore if they are custom, proprietary or difficult to obtain in
the field. Those common components that are available from many sources are considered GENERIC
and are best obtained from your local parts distributor. Often critical parameters may vary between
manufacturers and will affect the performance of a product. It is strongly RECOMMENDED that you
use only parts from vendors that have been qualified and APPROVED by Commodore for use in our prod
ucts. If you have a board with ORIGINAL parts and the vendor is not listed as approved, you may assume
that the vendor was approved after this printing and also may be used as a replacement part.
RAM
ACCESS
TIME
150 nS
64K X 4 BIT D YNAM IC RAM
HITACHI FUJITSU
HM50464P-1 5 MB81464-1 5
NEC
D41464C-1 5
CPU
68000 M ICRO PRO CESSO R
HITACHI
MOTOROLA ROCKWELL SIGNETICS
8 MHZ
10 MHZ
12.5 MHZ
68000L8 68000L8 R68000P8
SCN68000C8N64
68000L10 68000L10
X
X
68000L12 68000L12 X
X
TTL DEVICES
7407 T.I., NATIONAL, SIGNETICS, MOTOROLA
7438 T.I., NATIONAL, SIGNETICS, MOTOROLA
74AS74 T.l.
74AS374 T.L
74F02
74F74
7 4 H 3 8
74F139
74F257
74F374
74F399
FAIRCHILD
FAIRCHILD
FAIRCHILD
FAIRCHILD
FAIRCHILD
FAIRCHILD
FAIRCHILD
74HC244 T.I., NATIONAL, TOSHIBA
74LS04
74LS32
74LS157
74LS244
74LS373
74LS393
T.I., NATIONAL,
T.I., NATIONAL,
T.I., NATIONAL,
T.I., NATIONAL,
T.L, NATIONAL,
T.I., NATIONAL,
SIGNETICS, MOTOROLA
SIGNETICS, MOTOROLA
SIGNETICS, MOTOROLA
SIGNETICS, MOTOROLA
SIGNETICS, MOTOROLA
SIGNETICS, MOTOROLA
74S51 T.I., NATIONAL, SIGNETICS
74S138 T.I., NATIONAL, SIGNETICS, MOTOROLA
LINEAR AN D M ISCELLAN EO U S C H IPS
1377
T.l.
X
NATIONAL
X
MOTOROLA
MC1377
TOSHIBA
X
1488
SN75188 LM1488 MC1488
X
1489A
SN75189
LM1489A
MC1489
X
2901
X
LM2901
X
X
347
X LF347N LF347N
X
75339 X
X X
TA75339
