Commodore Amiga - Power Supply

1-20
T40
This drawing is provided for reference ONLY. It does not imply the serviceability of the Amiga Power Supply. It is the
policy of Commodore Business Machines to REPLACE a defective power supply due to the unique parts used by the
OEM supplier of the unit. UL requirements specify that EXACT replacement parts must be used.

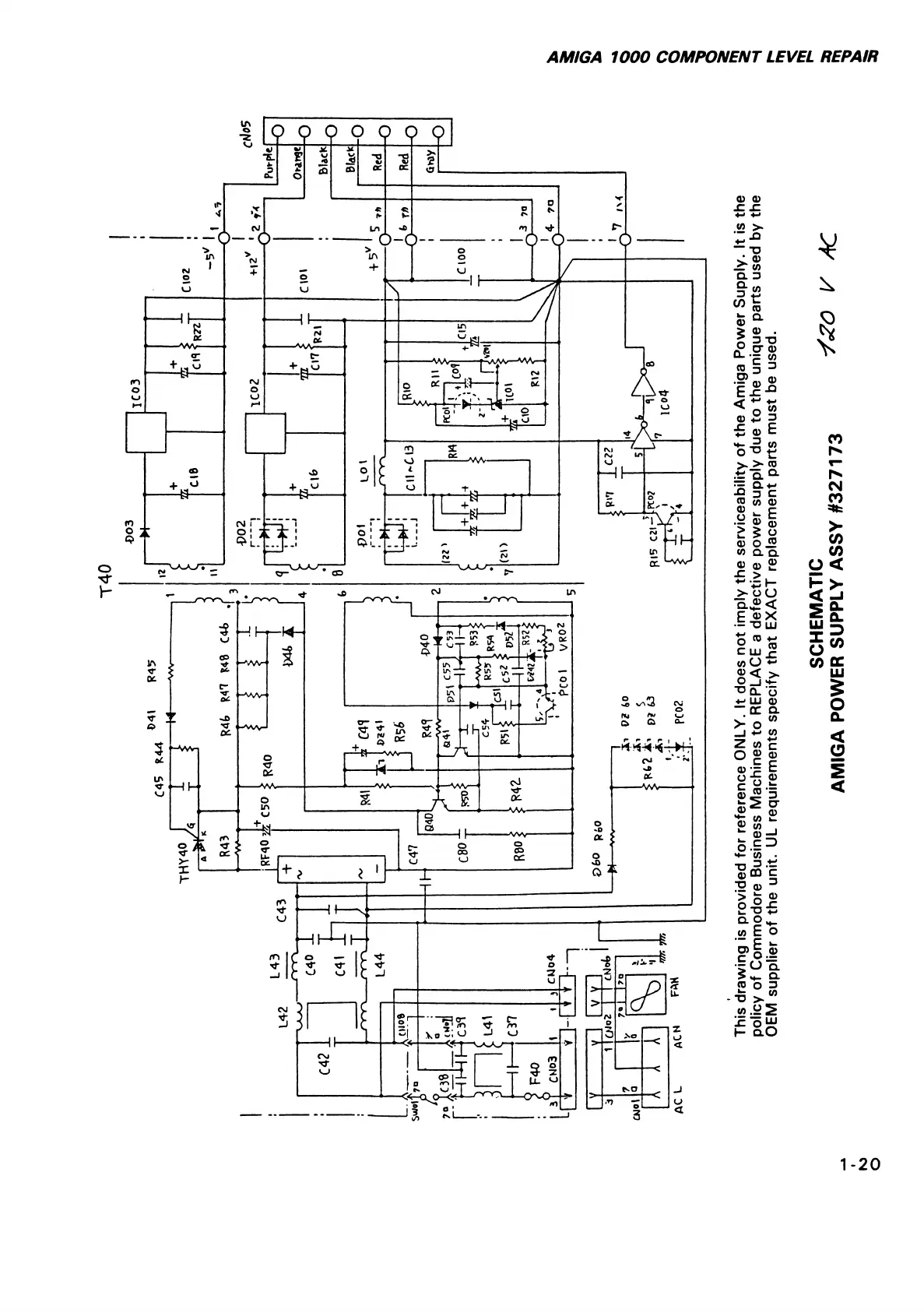

SCHEMATIC
AMIGA POWER SUPPLY ASSY #327173
AMIGA 1000 COMPONENT LEVEL REPAIR
