AMIGA 1000 COMPONENT LEVEL REPAIR

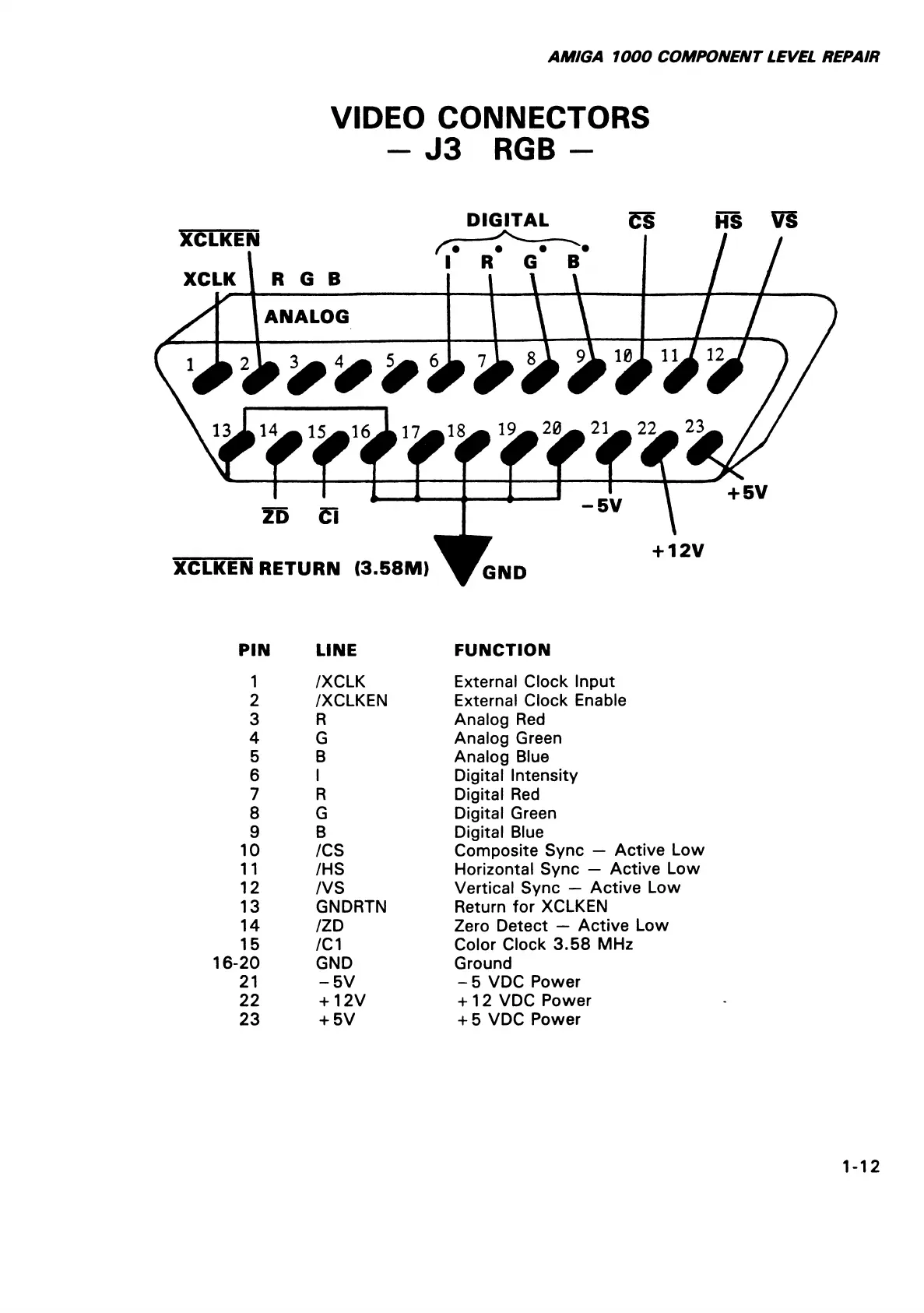

VIDEO CONNECTORS
- J3 RGB -
D IG ITAL £ § HS V 5
PIN LINE FUNCTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16-20
21
22
23
/XCLK
/XCLKEN
R
G
B
I
R
G
B
/CS
/HS
/VS
GNDRTN
/ZD
/Cl
GND
- 5V
+ 12V
+ 5V
External Clock Input
External Clock Enable
Analog Red
Analog Green
Analog Blue
Digital Intensity
Digital Red
Digital Green
Digital Blue
Composite Sync — Active Low
Horizontal Sync — Active Low
Vertical Sync — Active Low
Return for XCLKEN
Zero Detect — Active Low
Color Clock 3.58 MHz
Ground
- 5 VDC Power
+ 12 VDC Power
+ 5 VDC Power
1-12
