AMIGA 1000 COMPONENT LEVEL REPAIR

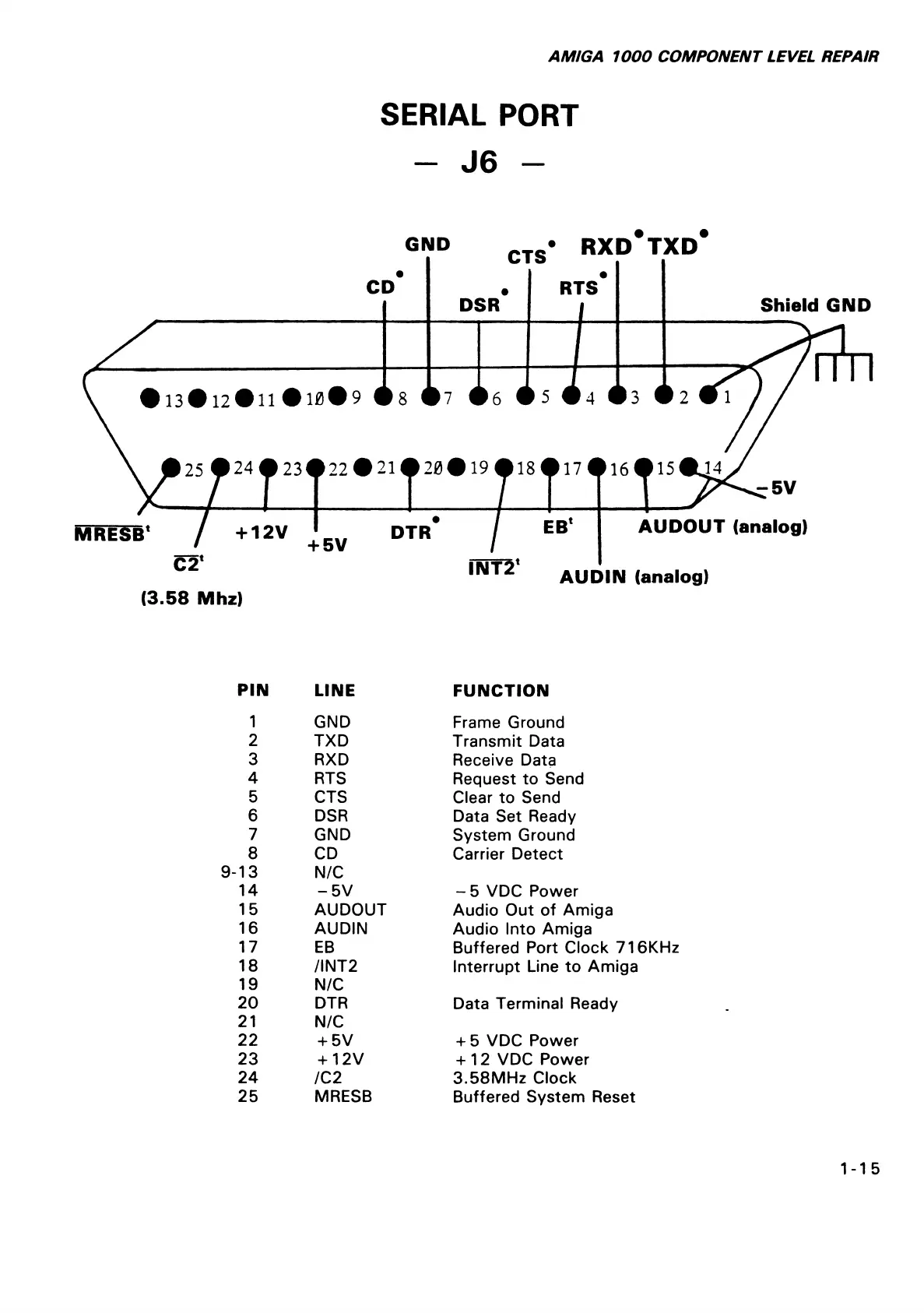

SERIAL PORT
- J6 -
PIN
LINE
FUNCTION
1
GND
Frame Ground
2
TXD
Transmit Data
3
RXD
Receive Data
4
RTS Request to Send
5
CTS
Clear to Send
6
DSR Data Set Ready
7 GND
System Ground
8 CD
Carrier Detect
9-13
N/C
14 - 5V
- 5 VDC Power
15 AUDOUT
Audio Out of Amiga
16 AUDIN
Audio Into Amiga
17
EB
Buffered Port Clock 716KHz
18 /INT2
Interrupt Line to Amiga
19
N/C
20 DTR
Data Terminal Ready
21
N/C
22
+ 5V
+ 5 VDC Power
23 + 12V
+ 12 VDC Power
24
IC 2
3.58MHz Clock
25 MRESB Buffered System Reset
1-1 5
