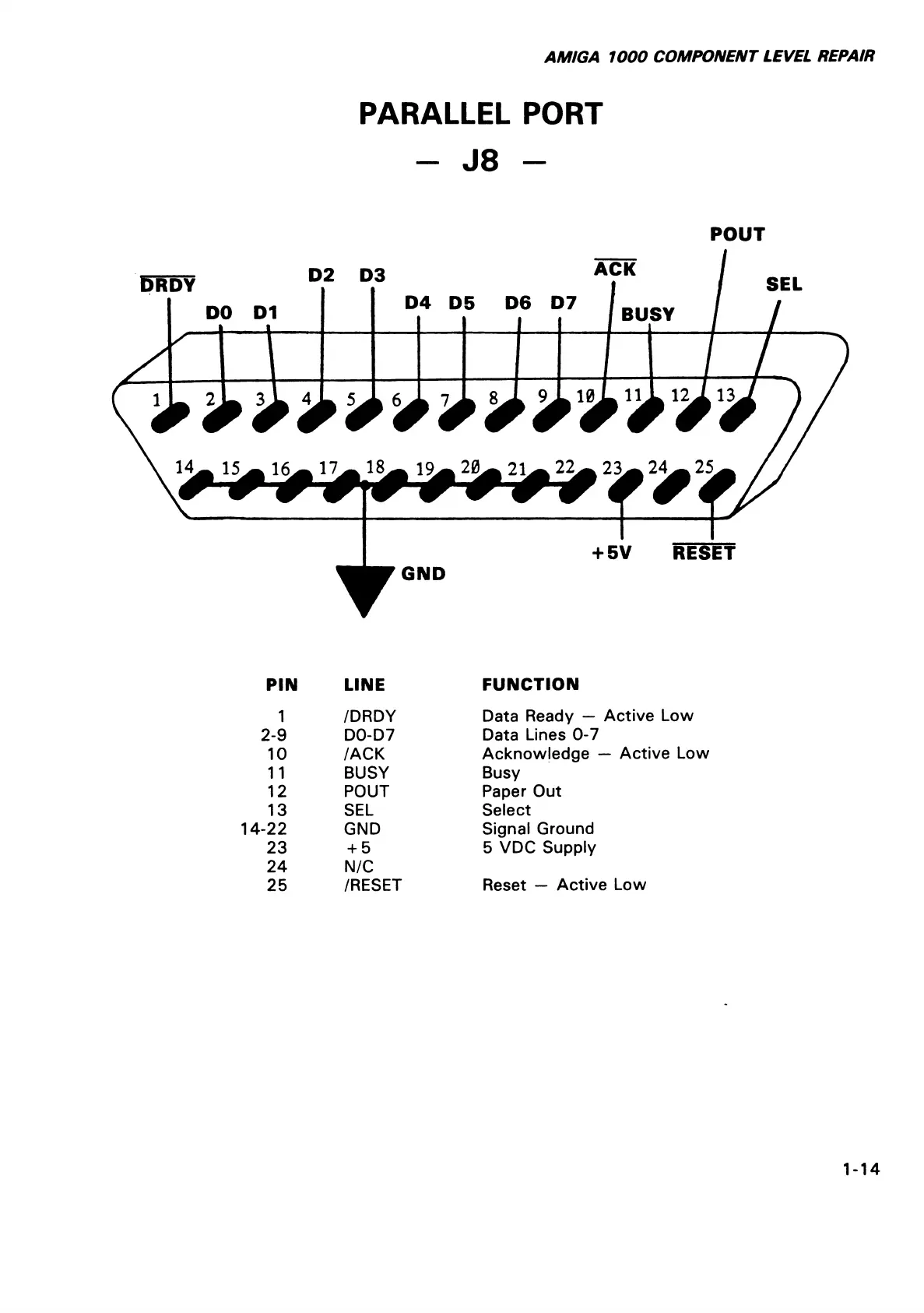

AMIGA 1000 COMPONENT LEVEL REPAIR
PARALLEL PORT
- J8 -
POUT
PIN LINE
FUNCTION
1 /DRDY
Data Ready — Active Low
2-9
D0-D7
Data Lines 0-7
10 /ACK
Acknowledge — Active Low
11
BUSY Busy
12 POUT
Paper Out
13
SEL
Select
14-22 GND
Signal Ground
23
+ 5
5 VDC Supply
24
N/C
25
/RESET
Reset — Active Low
1-14
