AMIGA 1000 ASSEMBLY LEVEL REPAIR
1.10.1 Turn system OFF.
1.10.2 Remove RAM EXPANSION COVER from front of computer.
1.10.3 Insert RAM EXPANSION CARTRIDGE A1050.
Install the cartridge straight onto the card edge connector.
Be certain it is secure.
1.10.4 Replace RAM EXPANSION COVER.
1.10.5 Power ON.
1.10.6 Insert the diskette labeled KICKSTART into the internal drive.
At this time, the screen should turn white as the system loads the disk. The drive activity
light will flash briefly and the drive access sounds should be heard. After approximately 30
seconds and some screen changes, the system should display a hand holding a diskette
labeled WORKBENCH.
• If the hand holding the diskette labeled KICKSTART REAPPEARS, re-seat the diskette and
RETRY. If after 3 or 4 retries, the system still does not accept the KICKSTART diskette, try
a DIFFERENT COPY of the disk.
• If-the disk still WILL NOT LOAD, refer to 1.7 DRIVE ASSEMBLY CHECK
OR
• If the drive was previously tested as OK, EXCHANGE the RAM EXPANSION CARTRIDGE and
RETRY.
1.10.7 Remove the KICKSTART disk.
1.10.8 Insert the diskette labeled WORKBENCH into the internal drive.
At this time, the screen will turn white for approximately 2 seconds and then display the
boot-up message while continuing to load from the disk.
• If the hand holding the diskette labeled WORKBENCH REAPPEARS, re-seat the diskette and
RETRY. If after 3 or 4 retries, the system still does not accept the WORKBENCH diskette,
try a DIFFERENT copy of the disk.
• If the disk STILL WILL NOT LOAD, refer to 1.7 DRIVE ASSEMBLY CHECK.
OR
• If the drive was previously tested as OK, EXCHANGE THE RAM EXPANSION CARTRIDGE
and RETRY.
When loading is complete, the screen will be blue with the WORKBENCH DISK ICON in the
upper right hand corner. The TITLE BAR message will be:
Amiga Workbench Version 1.0 429928 free memory.

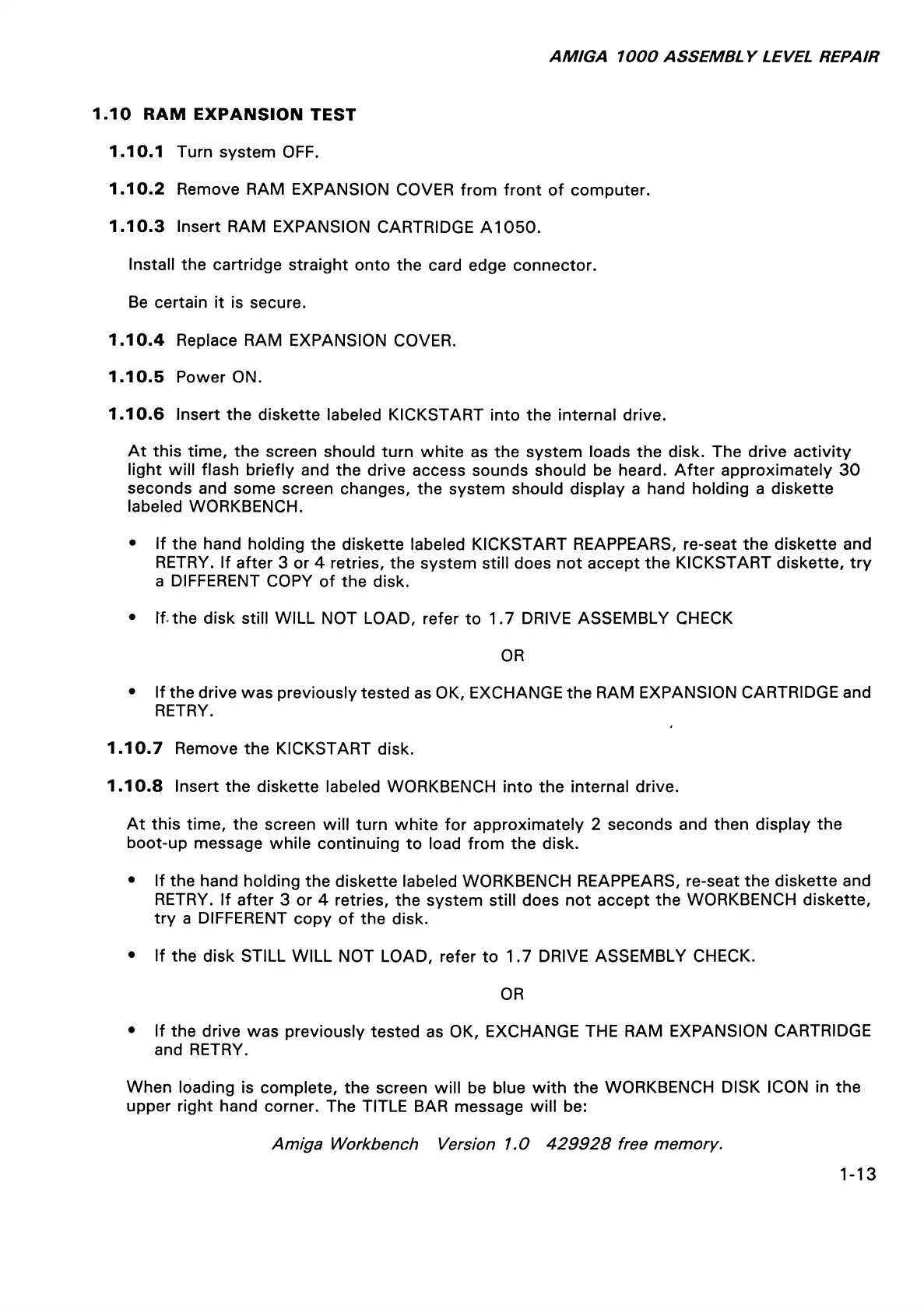

1.10 RAM EXPANSION TEST
1-13
