AMIGA 1000 ASSEMBLY LEVEL REPAIR
SECTION 1. SET-UP & TESTING
1.1 ASSEMBLY OVERVIEW
ASSEMBLY OVERVIEW

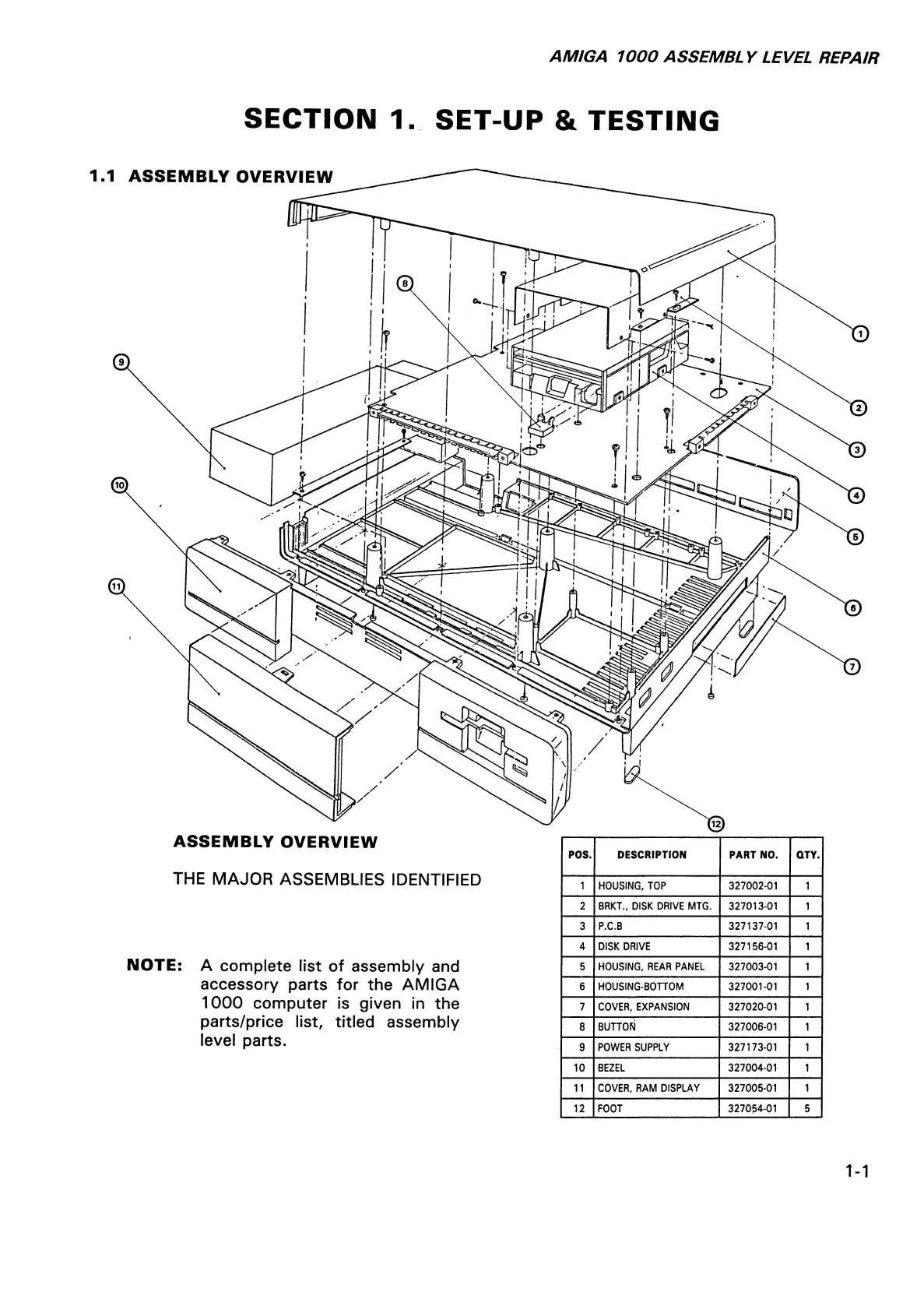

THE MAJOR ASSEMBLIES IDENTIFIED
NOTE: A complete list of assembly and
accessory parts for the AMIGA
1000 computer is given in the
parts/price list, titled assembly
level parts.
POS. DESCRIPTIO N
PART NO. QTY.
1
HOU SING, TOP 327002-01
1
2
BRKT., D ISK DRIVE MTG. 327013-01
1
3 P.C.B
327137-01 1
4 D ISK D RIVE 327156-01 1
5
HOU SING, REAR PANEL 327003-01
1
6
HOUSING-BO TTO M 327001-01
1
7
COVER, EXP A N SIO N 327020-01 1
8 BUTTON 327006-01
1
9 PO W ER SUPPLY
327173-01
1
10 BEZEL
327004-01 1
11
COVER, RAM D ISPLAY 327005-01 1
12 FOOT
327054-01
5
1-1
