4. Pole Mounting (115 mm max. pole diameter)
Page 6 M0153AEA_Inst_CMAX-LHM2 Installation Guide for CMAX-LHM2 Antennas
4. Pole Mounting (115 mm max. pole diameter)
Optionally, a pole-mounting kit can be ordered separately from CommScope (ID
7814722). The recommended pole diameter for this mounting kit is 60 - 115 mm.

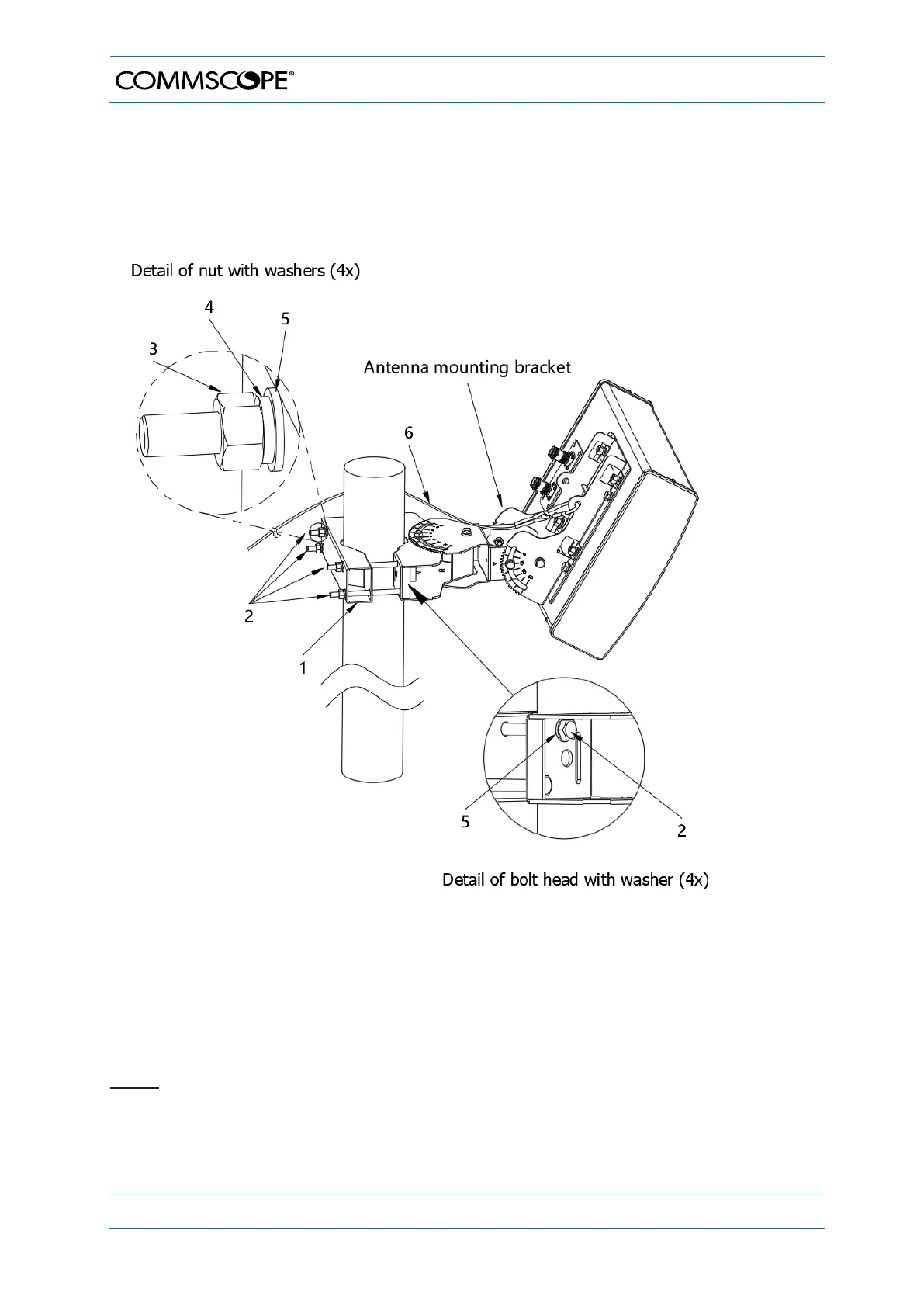

To mount an antenna to a pole using this kit, proceed as follows:
1. Insert four M8x200(2) bolts and four filled-corner washers (5) into the antenna
mounting bracket (see bolt head for details).
2. Insert the pole mounting bracket into these four bolts and place the washers
& spring washers (4 & 5) and the M8 nuts (3) over each bolt (detailed
illustration).
3. Tighten the four M8 nuts observing the specified torque of 27 Nm.
Note:
This installation method is applicable to the CMAX-LHM2-series antenna (CMAX-
LHM2-30-I53, CMAX-LHM2-3030-I53, CMAX-LHM2-22-I53, CMAX-LHM2-60-I53).
