5.5. Outdoor Installation
Note: For outdoor use, the plugs must be removed from the drain hole.
NOTICE: For the top and bottom of the antenna, please observe the arrow
markings on the back. The antenna must be installed with the bottom facing the
ground, otherwise water may seep into the antenna and damage it.
Remove the plugs from the drain holes at the bottom of the antenna with a knife

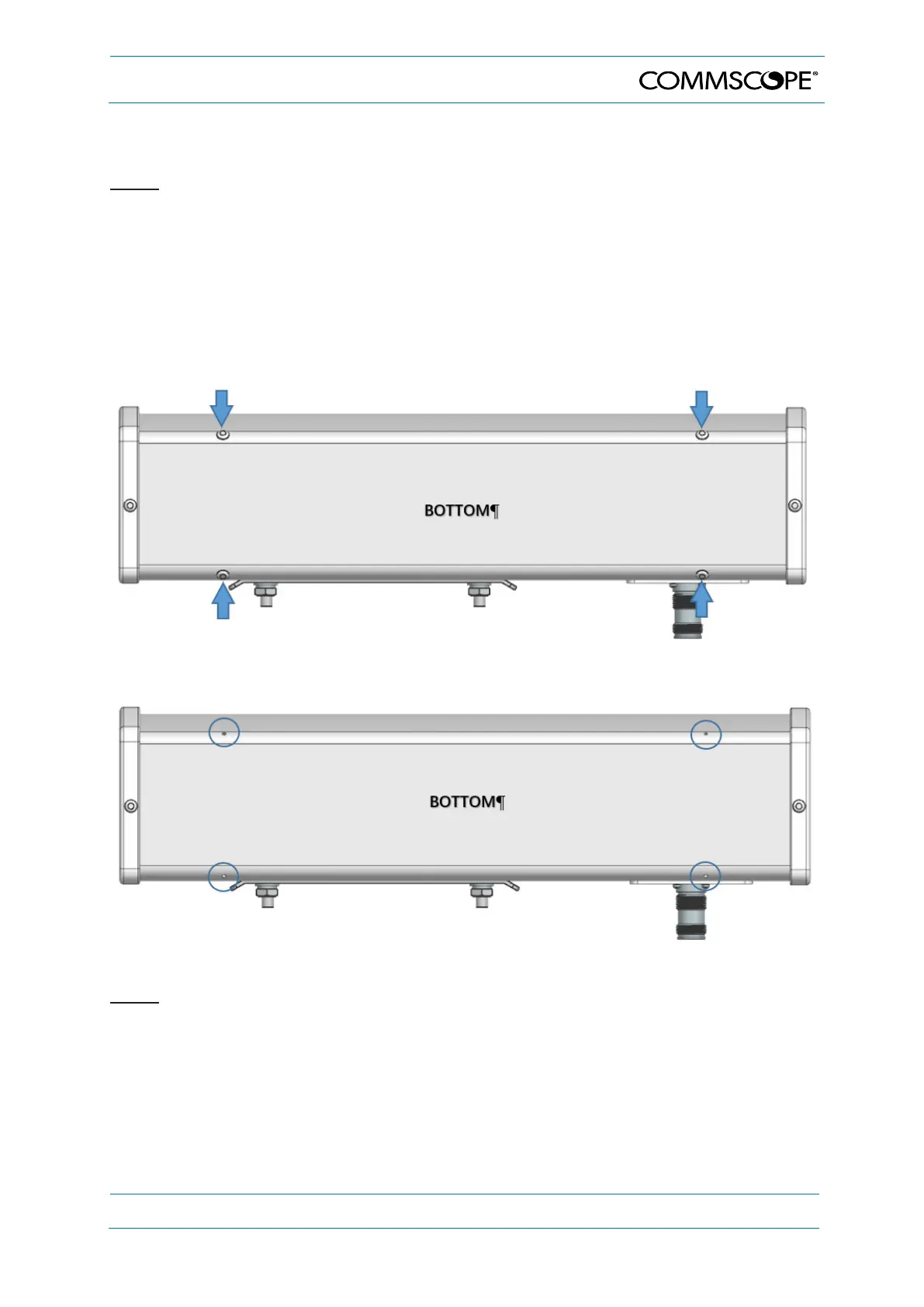

or a flat screwdriver. The figure below indicates the location of the drain holes,
design and/or size of the antenna may be different.
Note:
CMAX-LHM2-30-I53, CMAX-LHM2-22-I53, and CMAX-LHM2-60-I53 antenna
drainage hole layout is similar to the figure above. The figure above is for
reference only. Verify the exact locations with the actual antenna model you have.
