MT Series DryLine
®
Dehydrator User Manual
7
MT Series System configuration diagram Basic
This configuration shows proper hook up for sys-
tems when only a single waveguide is required in
the system.
CAUTION!
Do not operate the Dehydrator with the
system isolation valves closed or with the
Remote Sense line disconnected. Serious
damage to the wave guide due to over
pressure can occur.
* Note! To provide extra over pressure protection a
secondary pop-off valve may be added at this point
that is closely matched to the maximum system
safe pressure. See specication page for options
available
MT
Dehydrator
Remote Pressure
Sense Line
Isolation
Shut-off
Valves
Dehydrator Output Line
Primary Large
Wave Guide
*

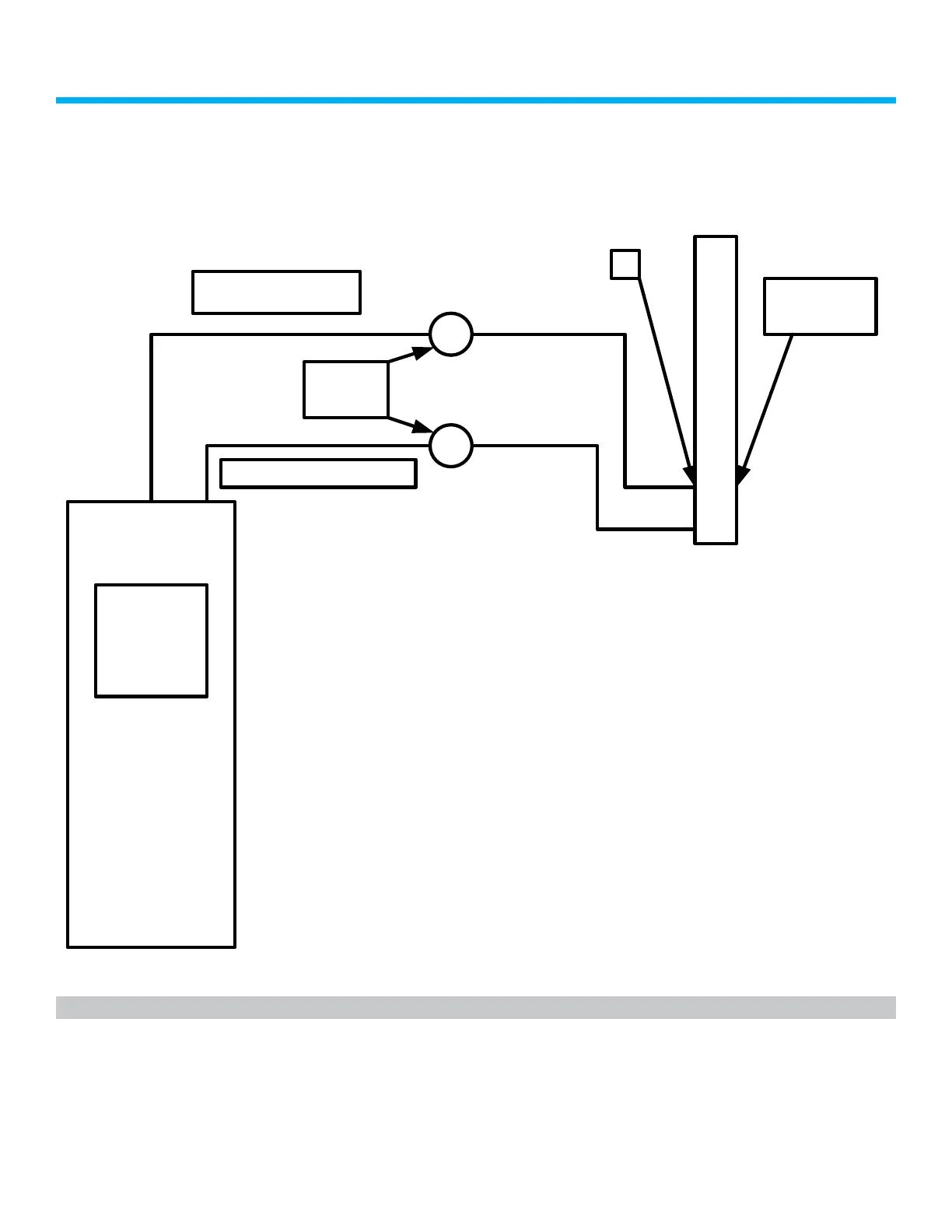

Figure 2 — MT Series System conguration diagram Basic
