WCS-2 and WCS-4 Subrack Overview
Slot and Card Assignment Rules for Switching CANs
Figure 3 lists the card installation rules for a WCS-4 or WCS-2 Subrack configured in the GUI to function as a
Switching CAN, in which case the CAN will be connected to a WIN.

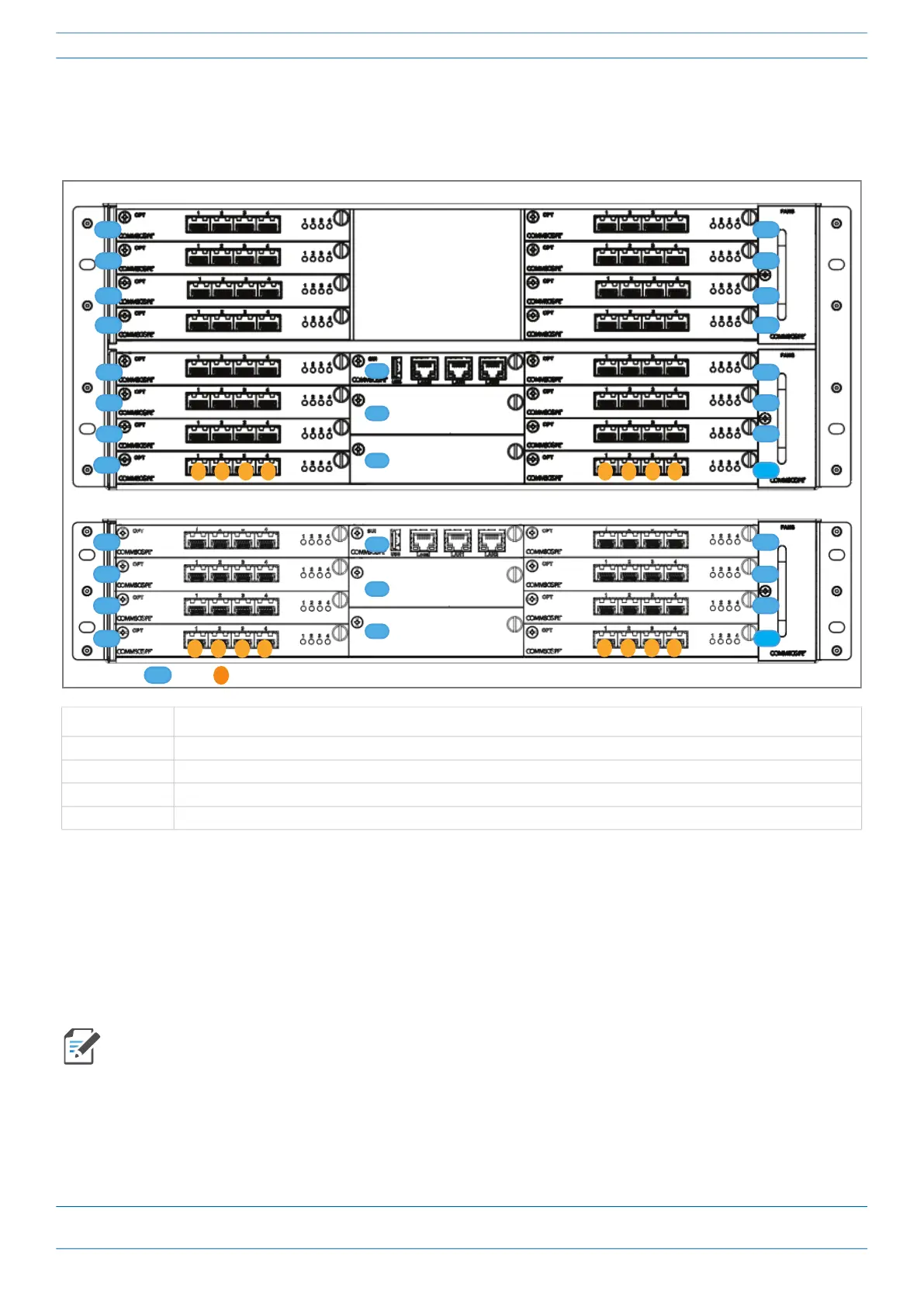

Figure 3. Supported Slot and Card Installations for Switching CANs
The following additional rules apply to a Switching CAN.
• You cannot directly connect APs to a Switching CAN; connect the APs to a TEN that then connects to the
Switching CAN.
• You cannot install a CAT, AUT, RFD, or CDD Card in a Switching CAN.
Card Slot Supported Card Type
L1 - L8 Install an OPT Card to connect to a TEN.
M1 - M2 Not supported/used.
M3 Install a SUI Card for network connectivity.
R1 - R8 Install an OPT Card to connect to a WIN.
For information on how to configure the WCS Subrack as a Switching CAN in the ERA software, refer to
the ERA configuration guide for Software Version 2.5 or later; see "Accessing ERA Series User
Documentation” on page 83.
