CommScope WCS-2 User Manual

ERA® WCS and e-POI Subracks and Power Supply Unit Installation Guide M0201ABK_uc
Page 34 © June 2021 CommScope, Inc.

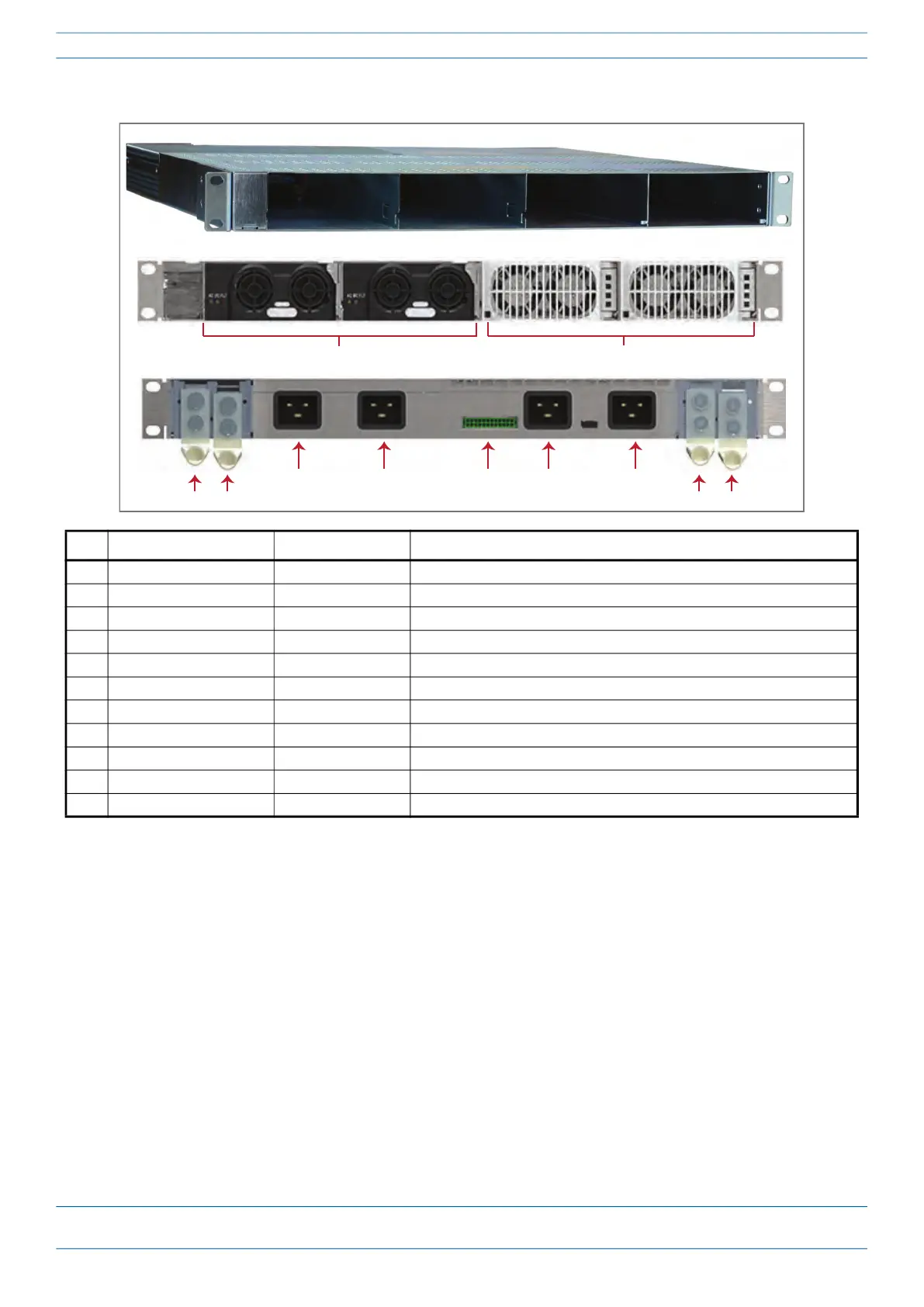

Power Supply Unit Subrack and Rectifier Modules
The following graphic and table identify the PSU modules and connectors.
Ref # Component Device Function
1 12 Vdc Rectifier Module Power module Provides 12 Vdc power to the WCS and e-POI Subracks.
2 57 Vdc Rectifier Module Power module Provides remote power over Cat6A for the AP and its connected devices.
3 57Vdc Output Power terminal Provides the connection point for the Positive (Red Wire).
4 GND Output Power terminal Provides the connection point for the RTN Negative (Black Wire).
5 AC Input (IEC 60320 C19) Power connector Provides the AC connection point for the for 57 Vdc Rectifier Module Slot 4.
6 AC Input (IEC 60320 C19) Power connector Provides the AC connection point for the for 57 Vdc Rectifier Module Slot 3.
7 Rectifier control connector 24 pin-terminal block Provides the connection point for the WCS.
8 AC Input (IEC 60320 C19) Power connector Provides the AC connection point for the for 12 Vdc Rectifier Module Slot 2.
9 AC Input (IEC 60320 C19) Power connector Provides the AC connection point for the for 12 Vdc Rectifier Module Slot 1.
10 12Vdc Output Power terminal Provides the connection point for the Positive (Red Wire).
11 GND Output Power terminal Provides the connection point for the RTN Negative (Black Wire).
Rear Panel
3 4 10 11
7 8 965
Power Supply Subrack - Unpopulated
Front Panel - Populated
12
