ERA® WCS and e-POI Subracks and Power Supply Unit Installation Guide M0201ABK_uc
Page 72 © June 2021 CommScope, Inc.
Install and Connect the Subrack Cards

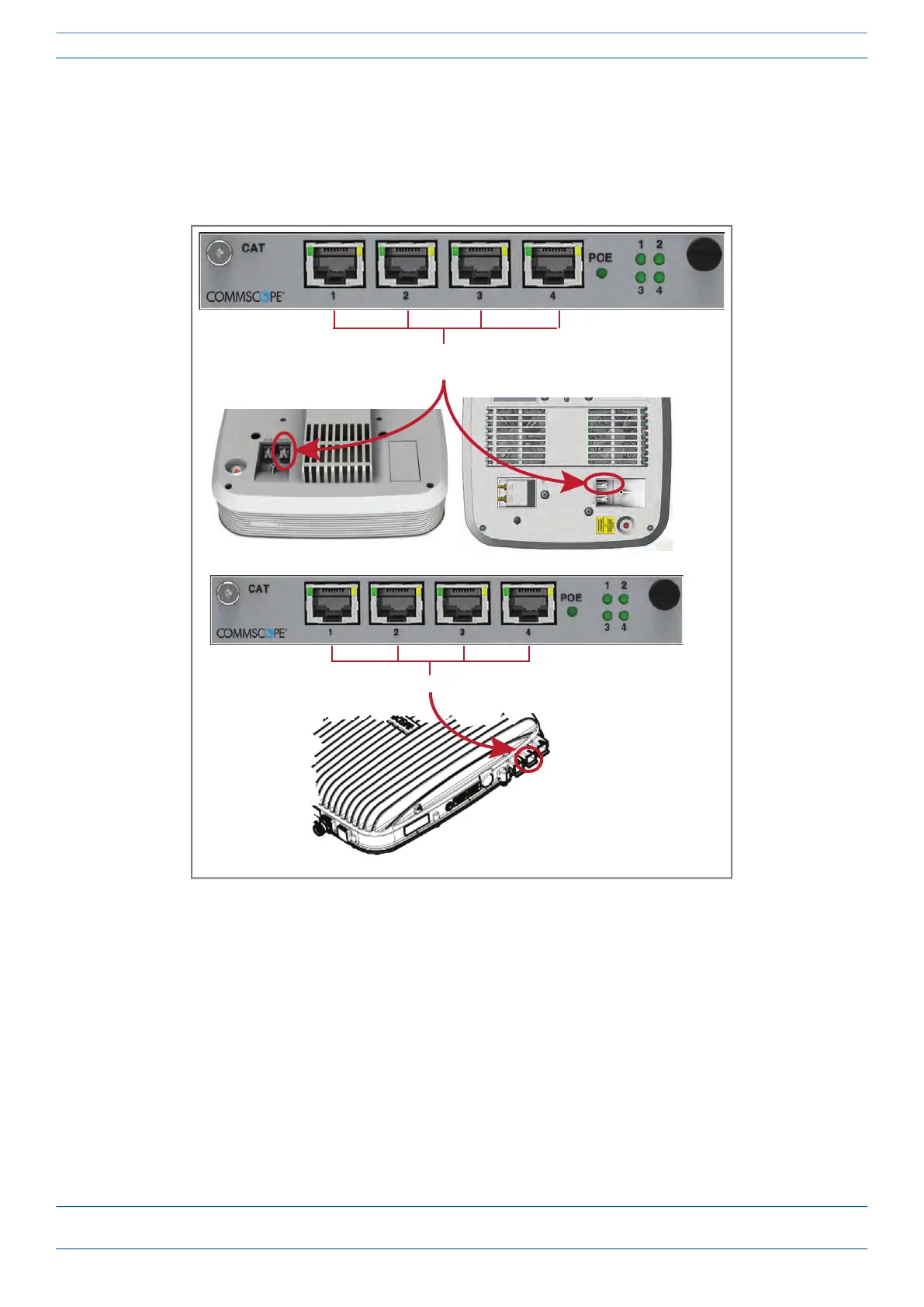

2 Use 23 AWG (minimum) Cat6A cables to connect up to four APs to the CAT Card as described below and
as shown in the graphic below. When making this connection, observe the cabling rules identified in
"Cat6A Cables and Connectors” on page 32.
• UAP, UAP-N25, UAP-X, and UAP-XN25—connect the CAT Card port to the UAP Main port.
• Copper CAP L—connect the CAT Card port to the CAP L RJ-45 port.
3 Use a testing device that provides an integrated test for Cat6A to make sure the Cat6A connections meet
the requirements listed in "Cat6A Cables and Connectors” on page 32.
UAP, UAP-N25
UAP-X
CAT Ports 1 - 4 to/from CAP L RJ-45 connector
CAP L with Copper Interface
Can use CAT Ports 1 -4 to/from UAP Main port on Primary UAP,
but limited to three cascades
