D SERIES Ceiling Loudspeakers Installation and Operation Manual Page 17

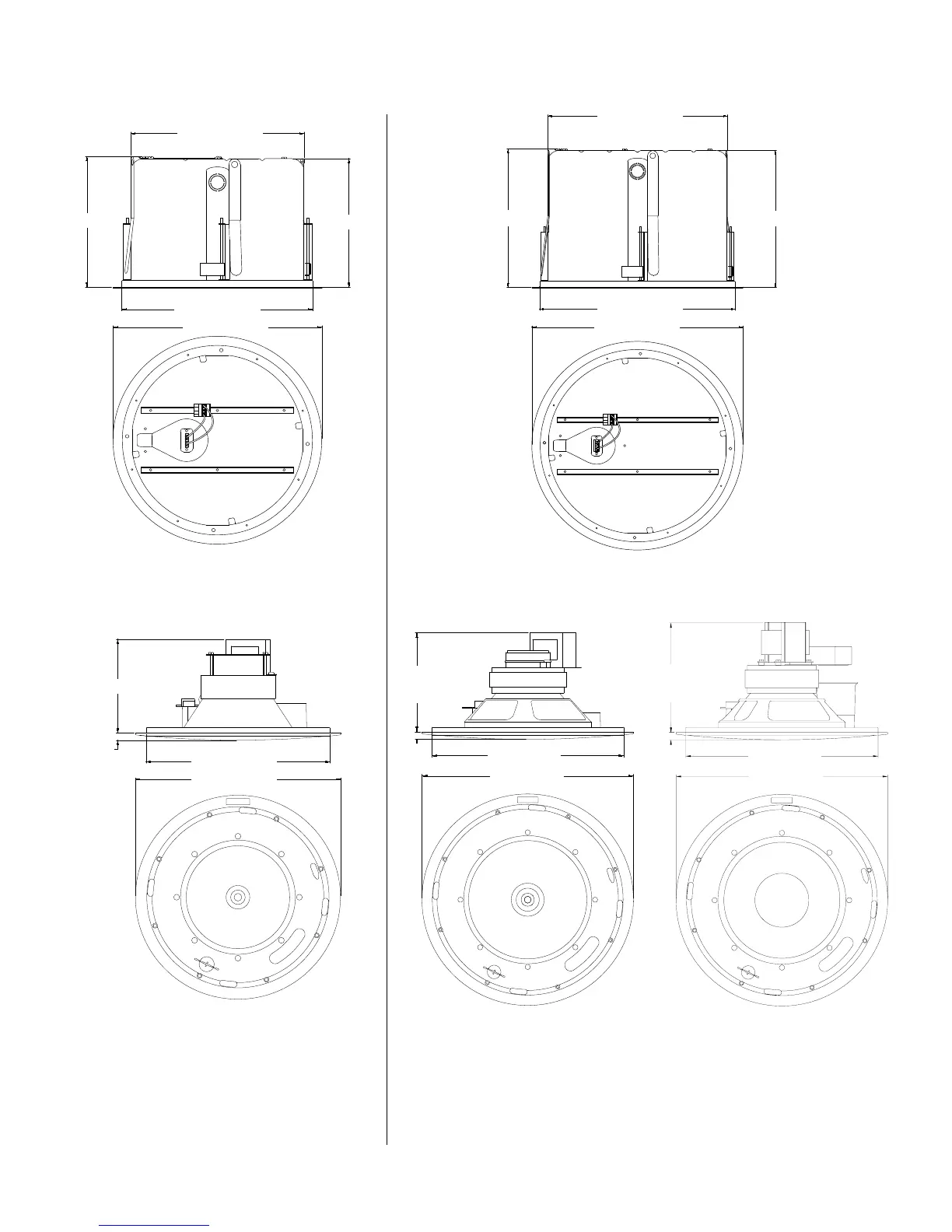

Figure 24. D8 Back can dimensions Figure 26. D10 and D10SUB Back can dimensions
Figure 25. D8 Loudspeaker dimensions Figure 27. D10 (left) and D10SUB (right) Loudspeaker dimensions
Note: The D10SUB loudspeaker uses the same D10 back can as the
D10 loudspeaker.
Ø11.85" (301)
Ø13.209" (335.5)
6.067" (154.1)
0.473" (12)
Ø13.819" (351)
Ø15.197" (386)
7.157" (181.8)
.523"
(13.3)
Ø13.819" (351)
Ø15.197" (386)
7.886"
(200.3)
.523"
(13.3)
Ø10.827" (275)
Ø11.969" (304)
Ø13.051" (331.5)
8.205" (208.4)
8.071" (205.0)
Drawings / Dimensions (continued)
Ø12.795" (325)
Ø13.937" (354)
Ø15.039" (382)
9.977" (253.4)
9.843" (250)
