Community oers helpful optional accessories that are not included with the
basic packages. Please be sure to order these parts separately if you need
them.
Retrofit rings are available in two types for various loudspeaker group sizes.
The Face Adapter Ring allows you to place the D SERIES loudspeaker alone in
a non-Community made back can. The Can Adapter/Trim Ring allows you to
mount an entire D SERIES loudspeaker assembly with its Community back can
in a larger non-Community back can or to mount the loudspeaker assembly
into an existing but over-size ceiling cutout hole. If you’re performing a retrofit,
you will want to order the type of adapter you need in the size suitable for the
loudspeaker. As suggested by its name, the Can Adapter ring can be used as
a Trim Ring. When used as a trim ring, white rubber hole plugs (included) fill
the 4 countersink indents intended for mounting the ring to an existing larger
industry back can.
A New Construction Bracket is available for installing loudspeakers in new
construction before drywall or plaster is put in place. The drywall typically is
cut with a router-type tool or laser guided cutter. The bracket hole will serve
as a cutout guide.
The D SERIES 48" Tile Rails are available to support the D SERIES ceiling
loudspeakers in larger 4 ft (1219mm) long tiles. They are installed in the same
way as the 24" rails included with the ceiling loudspeakers and can be used
with all sizes of the C-ring support plates.
Optional Accessories

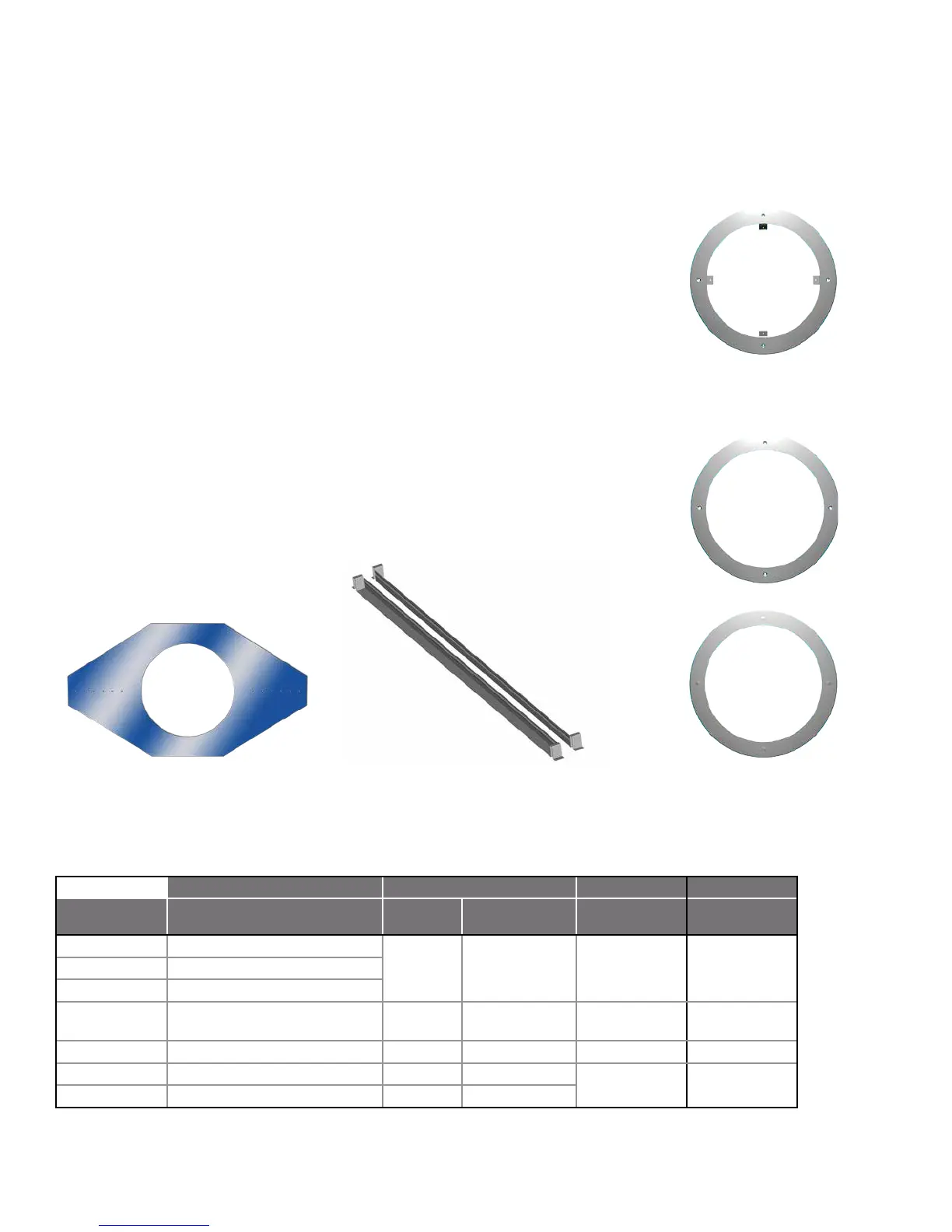

Figure 28. Optional Accessories
Can Adapter/Trim Ring
(without and with screw hole plugs)
Face Adapter Ring
New Construction Bracket 48" Tile Rails (1 pair)
part number D-RAIL48-PR
Ceiling Loudspeaker Packages Adapter Rings Brackets
Size Assembled Face
Can Adapter/
Trim
New
Construction
Black Grille
4.5" Low Profile D4LP
D45-FAR D45-CATR D45-NCB D45-GRL-B4.5" D4
5" D5
6.5" D6
D6-FAR
D6-FAR-B
D6-CATR
D6-CATR-B
D6-NCB -
8" D8 – – D8-NCB D8-GRL-B
10" D10 – –
D10-NCB D10-GRL-B
10" Subwoofer D10SUB – –
Note: All sizes are listed. Some models share a common back can or accessory bracket/ring, as indicated in the chart.
