1101/1201 Technical Manual
07/19/02 Page 12 1201 - JULY 19 '02
4. Connections
4.1 Removing Connectors from the SPU.

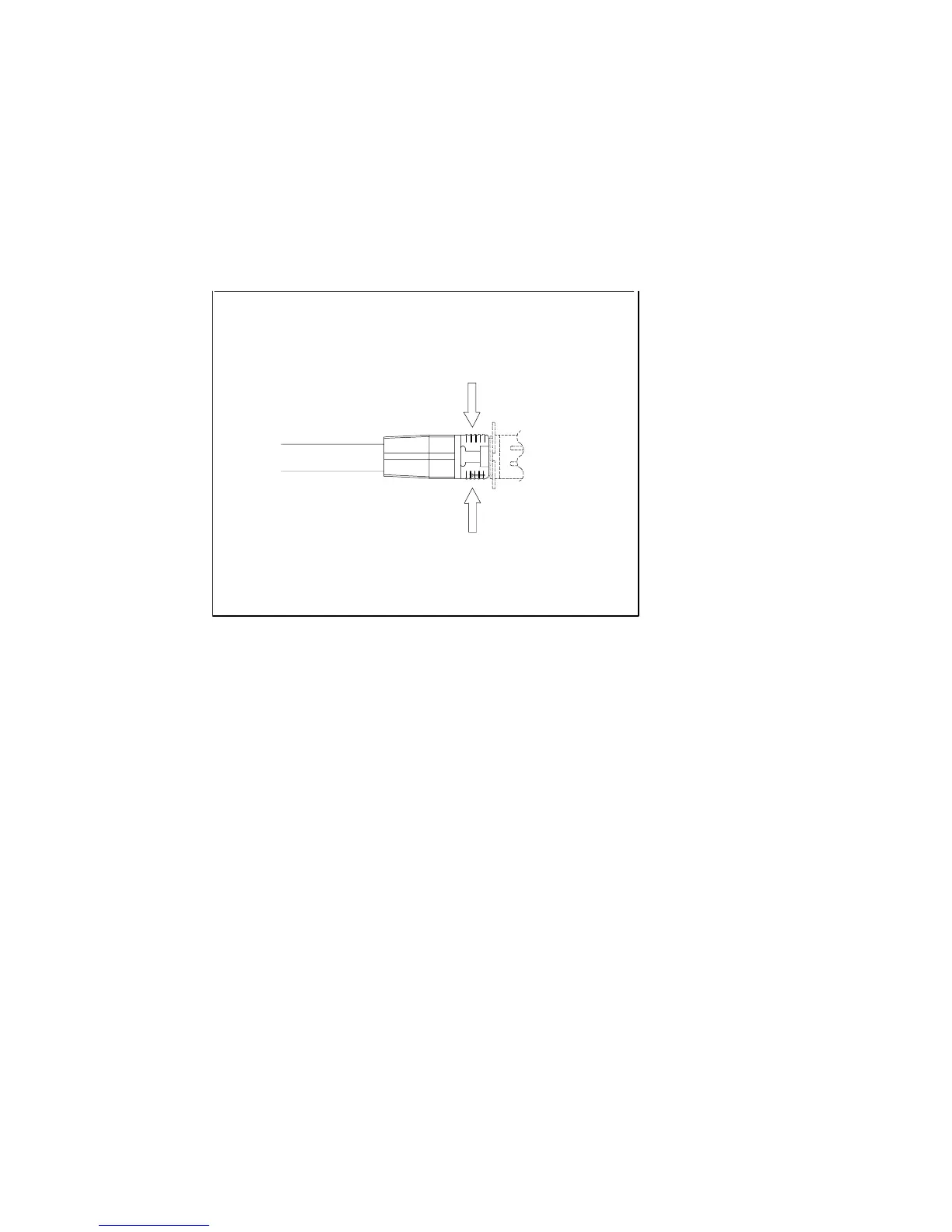

Figure 2 Removing Connectors
To remove the connectors from the receptacles on the back of the SPU, just squeeze the finger
grip cross-stripes to flex the plastic sides and unlock the tabs. While you are squeezing the sides
slide the connector off. This is the same for both sizes.
