ComNav 1201 - Compass and Serial Data connections to SPU

1101/1201 Technical Manual
07/19/02 Page 16 1201 - JULY 19 '02
4.5 Compass and Serial Data connections to SPU

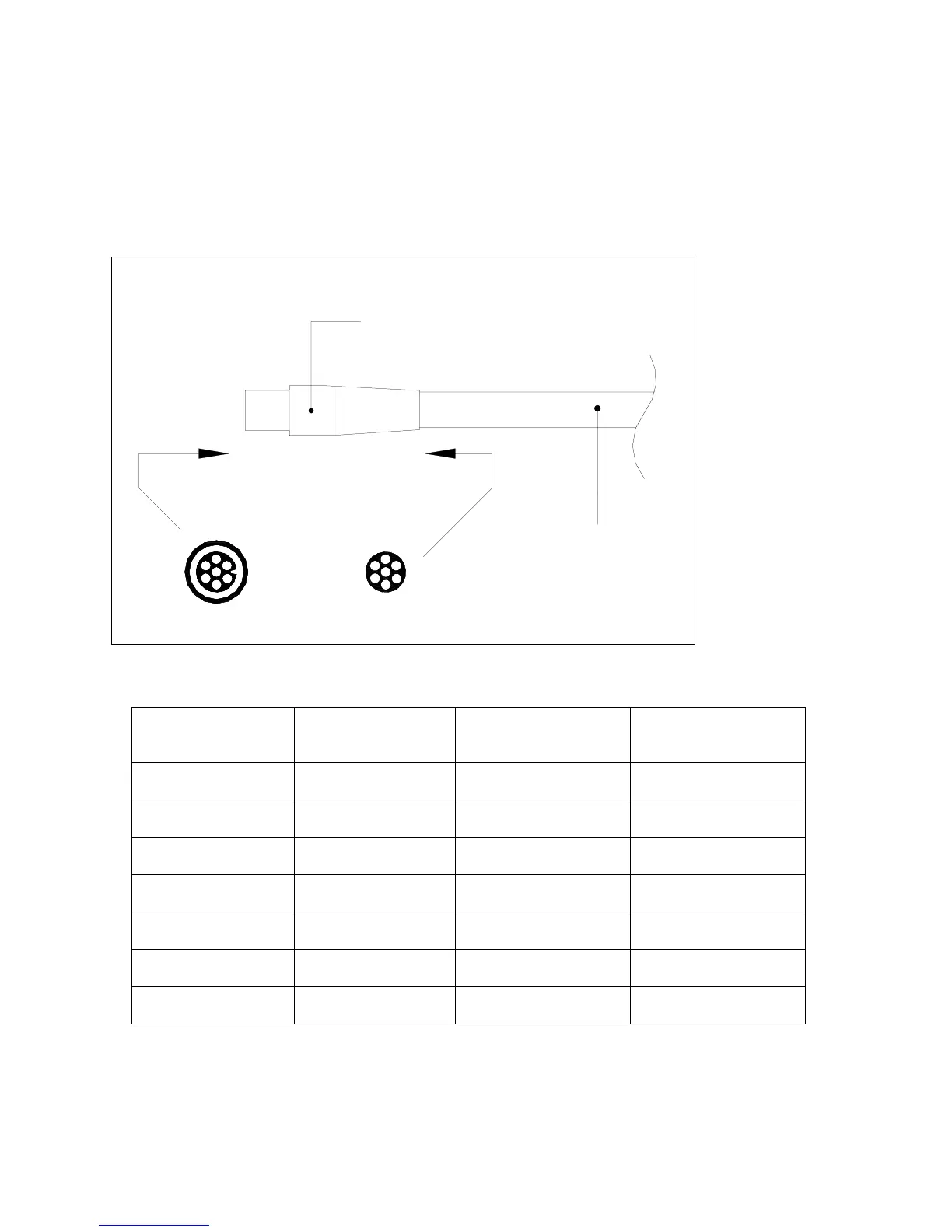

Figure 6 Compass and Serial Data Connector
WIRE COLOUR VIKING
CONNECTOR PIN #
SIGNALS TO/FROM
COMPASS
SIGNALS FROM
SERIAL DATA OUT
BLUE 1 Sine AD-10-S CLK
RED 2 13.6 KHz N/C
BLACK 3 13.6 KHz N/C
SHIELD 4 Ground GND
WHITE 5 Reference NMEA ‘B’
YELLOW 6 Cosine AD-10-S DATA
GREEN 7 +12 Volts NMEA ‘A’
6
5
3
4
2
7
1
View along Arrow
Direction
40ft (12.3 meters)
6 +1 conductor cable
Com Nav P.N. 40858
Plug with B ackshell
7 Pin Black
Com Nav P.N. 40830
7 Fem ale Pins,
Com Nav P.N. 40214
3
7
1
4
5
6
2
