Annex with technical documentation
A190-930TX_EN_03_ 2009-02-06 67

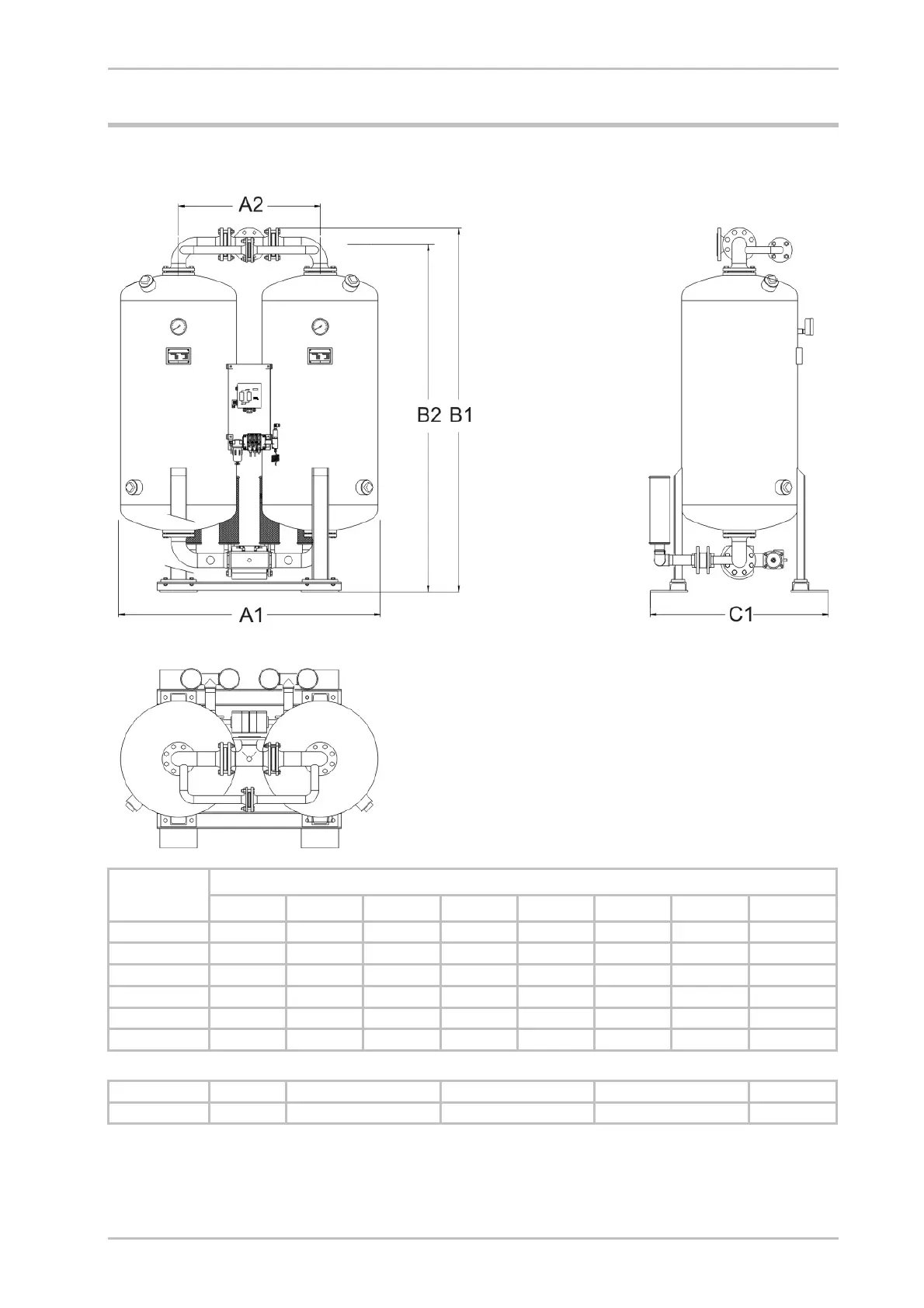

Dimensional drawings
A190-930TX
Type A...TX
Dimensions
190 250 320 390 490 630 770 930
A1
1060 1270 1350 1350 1600 1875 1904 2155
A2
600 740 740 870 870 1000 1000 1160
B1
2080 2120 2160 2210 2247 2385 2640 2816
B2
1990 2027 2065 2108 2127 2275 2530 2713
C1
840 900 990 1040 1100 1200 1250 1304
Weight (Kg)
640 765 955 1095 1300 1590 1950 2850
Connection
Inlet
DN 50 DN 65 DN 80 DN 100 DN 125
Outlet
DN 50 DN 65 DN 80 DN 100 DN 125
