4
AC input
220-240V AC at 50Hz
DC input
12V or 24V DC
4.5m or less
2.1mm2 (AWG14)
4.6m and over
3.3mm2 (AWG12)
For optimum performance and efficiency,
it is important that the appliance has a reliable
15A fuse protected DC supply in good condition.
Direct connection to the battery is recommended
and reduces the risk of voltage dropping to the
appliance.
It is recommended that the correct sized
Automotive Electrical Cable is used for the
direct connection and that this includes a
15A fuse; do not use resettable circuit breakers.
It is important that the correct cable size is
used for the installation of the DC supply as
over distance the voltage can decrease if the
incorrect sized cable is being used.
POWER REQUIREMENTS
The Fridge/Freezer is designed to operate on
AC and DC voltage inputs.
DISTANCE CABLE GAUGE FOR DC INPUT
DC CONNECTION
The unit is equipped with an electronic control
system that will prevent polarity reversal. In the
event that the battery connection is reversed the
unit will not start or operate.
The power inlet socket is fitted with a 15A fuse
for protection.
Plug the DC power cable into the DC voltage
socket on the rear and then connect to the
cigarette lighter or a suitable DC power source.
AC CONNECTION
The unit is equipped with a multi-voltage
power supply with priority circuit for
connecting to an AC voltage source of 100–240V.
The power supply automatically switches to
mains operation, if the device is connected
to a 100–240V AC mains, even if the 12/24V
connection cable is still attached.
The power inlet socket is fitted with a 3.15AL
250V Glass Fuse for protection.
Plug the AC power cable into the AC voltage
socket on the rear and then connect to a suitable
AC power source.

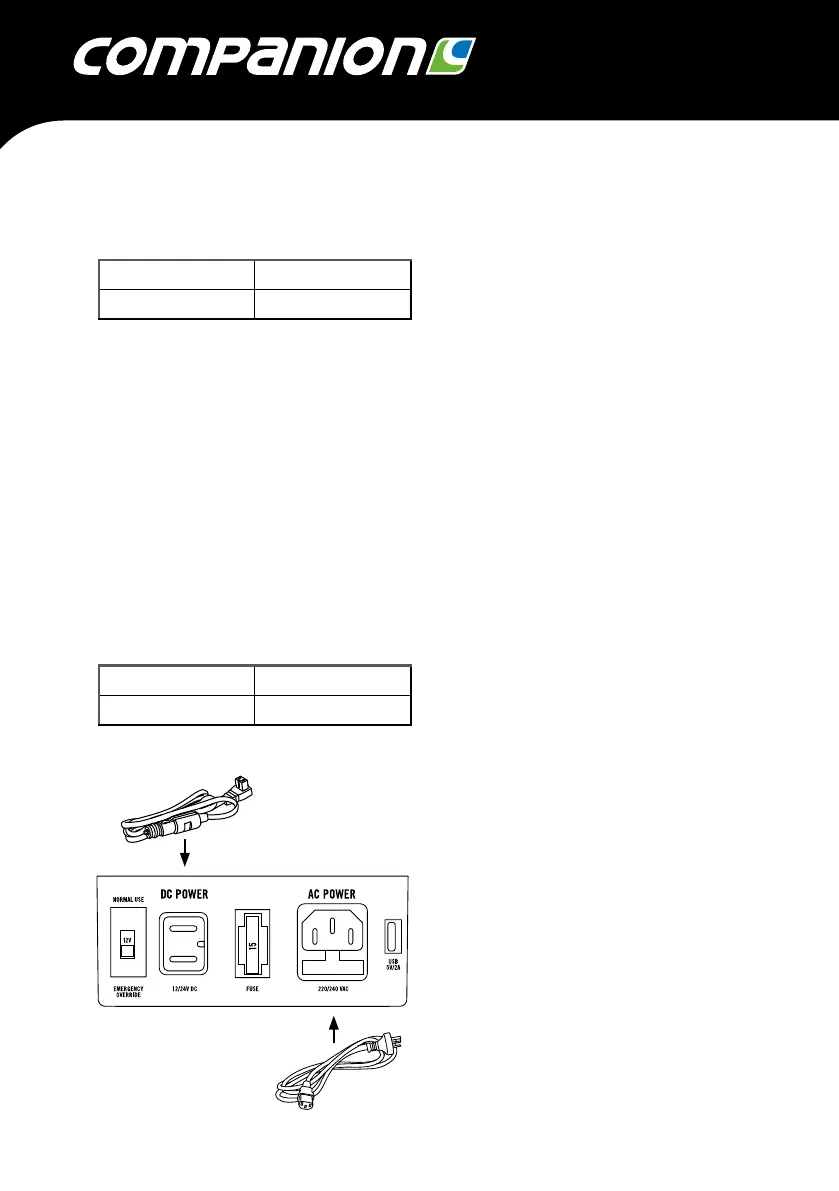

DC POWER CABLE
AC POWER CABLE
