with the appropriate slots.
2. Slide the rear panel down and forward, and secure with the two screws
using a Torx T-15 screwdriver.
Chapter 5.7 Options Cover
To remove the options cover, complete the following steps:
1. Remove the rear panel (Section 5.6).

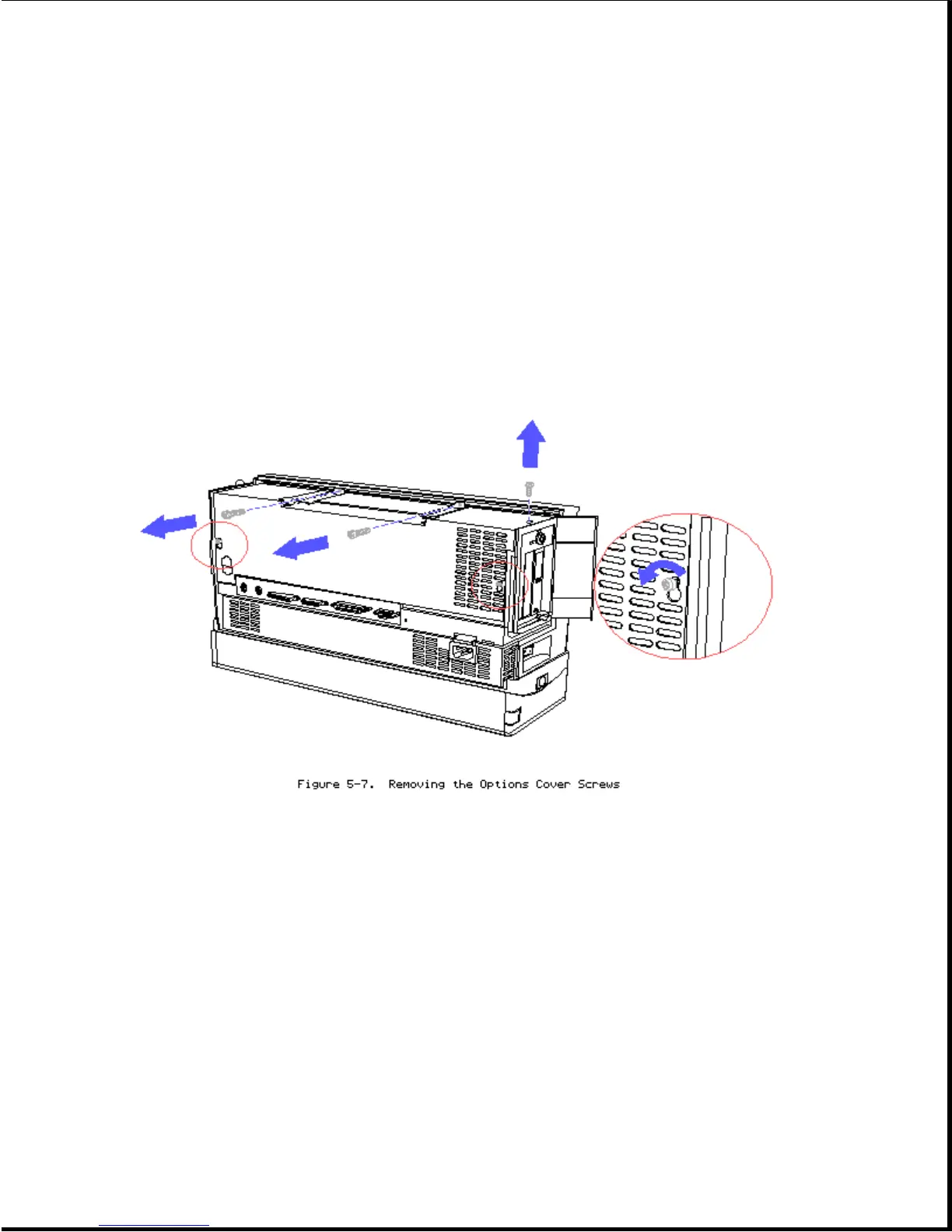

2. Using a Torx T-15 screwdriver, remove three screws from the top of the
options cover (Figure 5-7).
3. Loosen two slotted screws (Figure 5-8).
4. Lift the options cover off of the slotted screws (Figure 5-8).
