Chapter 5.16 Keylock
To remove the keylock, complete the following steps:
1. Remove the rear panel (Section 5.6).
2. Remove the options cover (Section 5.7).

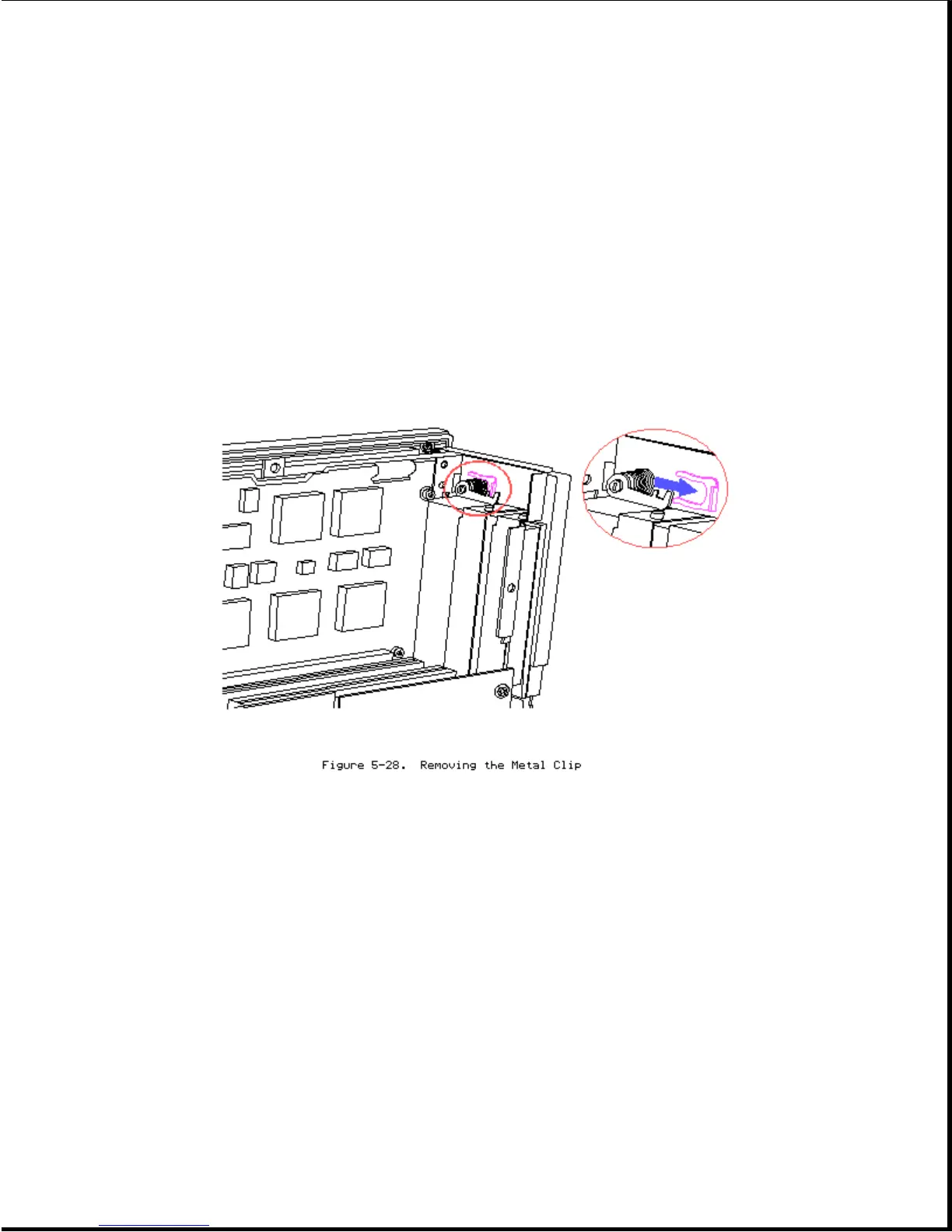

3. Using a flathead screwdriver, remove the metal clip securing the keylock
(Figure 5-28).
4. Pull the keylock out of the computer (Figure 5-28).
