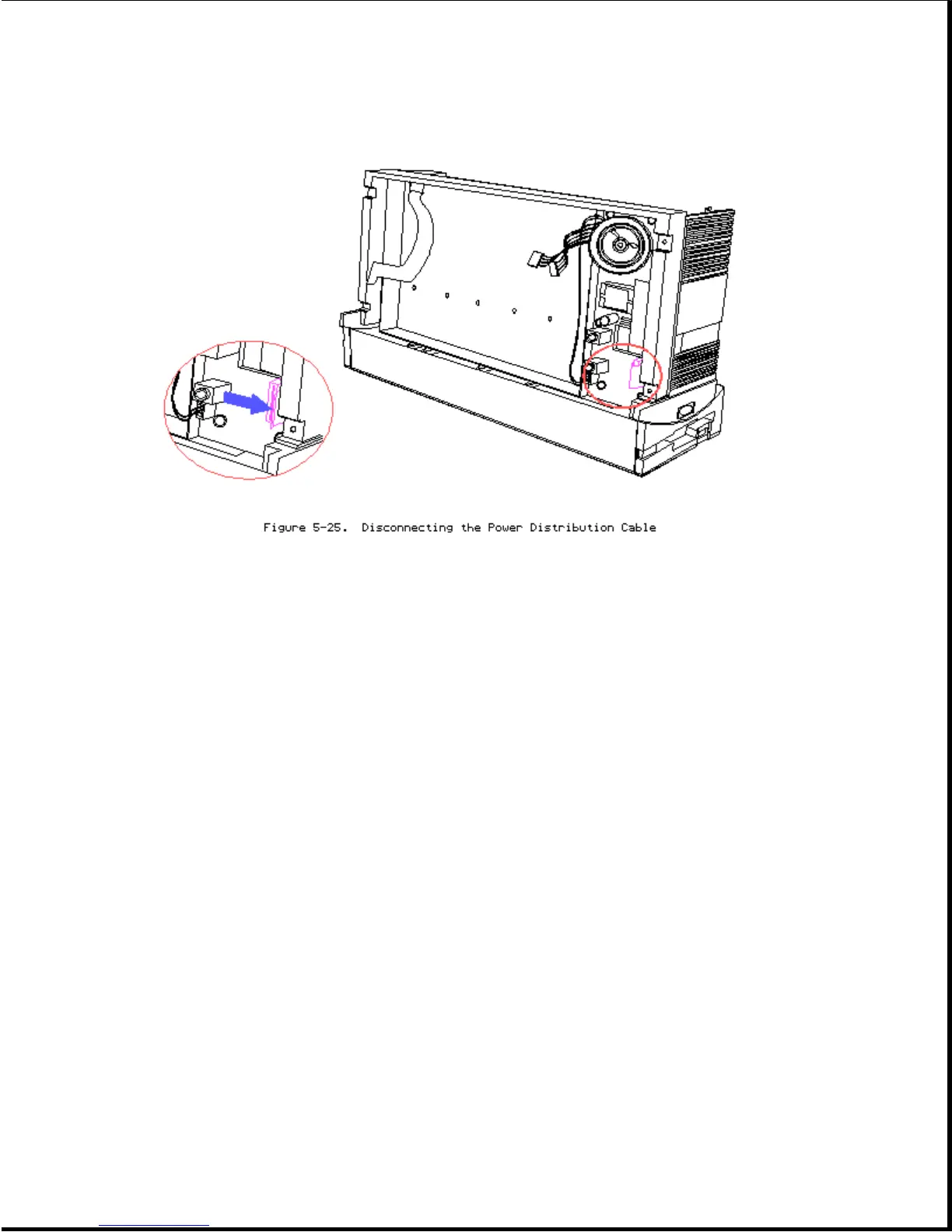

on the display inverter board (Figure 5-25).
4. Turn the computer around and remove the rear panel (Section 5.6).
5. Remove the options cover (Section 5.7).
6. Remove the video board (Section 5.8).
7. Remove the processor board (Section 5.8).
8. Remove the power supply (Section 5.9).
9. Remove the fan assembly (Section 5.10).
10. Remove the I/O board (Section 5.11).
11. Remove the base panel (Section 5.12).
12. Carefully disconnect the diskette drive cable, fixed disk drive cable,
and power cable (Figure 5-26).
