Appendix C.1 Connector Pin Assignments

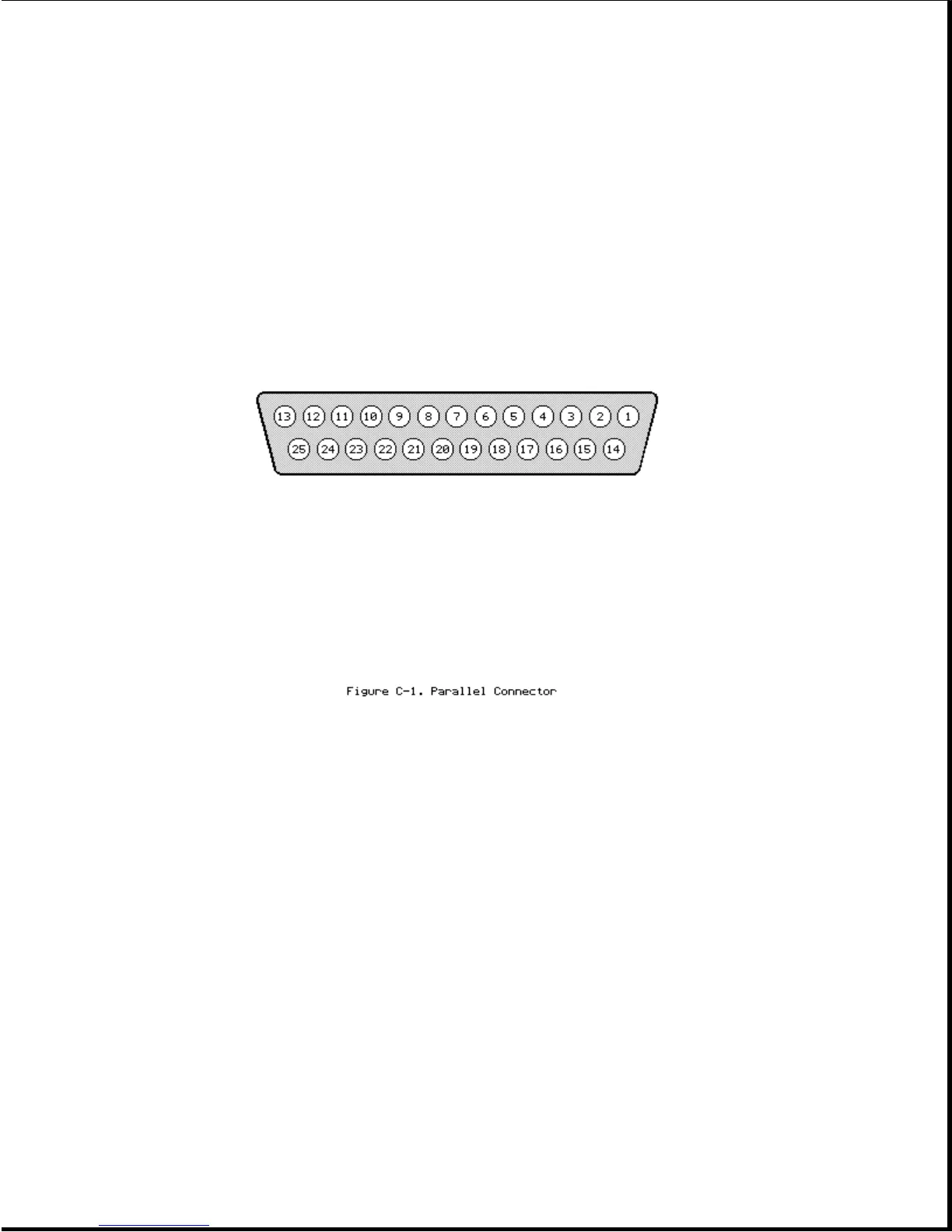

Parallel Connector
C-1. Parallel Connector Pin Assignments
===========================================================================
Pin Signal Pin Signal
===========================================================================
1 Strobe * 13 Select
2 Data Bit 0 14 Auto Linefeed *
3 Data Bit 1 15 Error *
4 Data Bit 2 16 Initialize Printer *
5 Data Bit 3 17 Select In *
6 Data Bit 4 18 Ground
7 Data Bit 5 19 Ground
8 Data Bit 6 20 Ground
9 Data Bit 7 21 Ground
10 Acknowledge * 22 Ground
11 Busy 23 Ground
12 Paper Out 24 Ground
25 Ground
---------------------------------------------------------------------------
* Active low
===========================================================================
