Chapter 3.10 Removing The Hard Drive
To remove the hard drive, follow these steps:
1. Remove the battery pack (Section 3.4).
2. Remove the display bezel (Figures 3-5 and 3-7).
3. Remove the CPU cover (Section 3.5).
4. Remove the keyboard (Section 3.6).

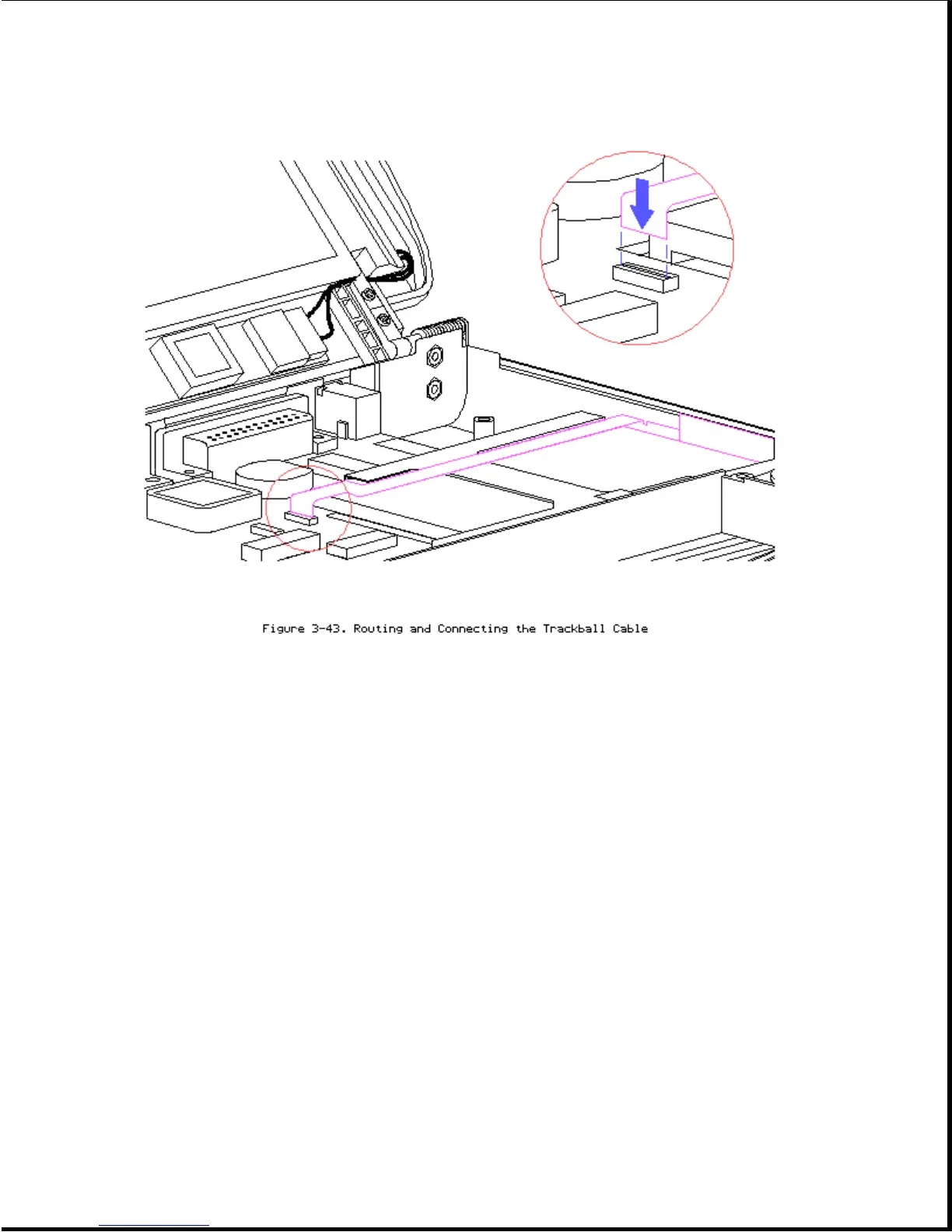

5. Disconnect the trackball cable from the system board, but do not remove
the trackball cable assembly completely (Section 3.9).
6. Remove the hard drive and bracket assembly from the system chassis by
gently sliding the hard drive bracket horizontally off the system board
connector (Figure 3-44).
IMPORTANT: Do not pull up on the hard drive before the system board
connector and drive connector are disengaged.
7. After the connectors separate, lift the hard drive and the bracket
straight up and out of the computer (Figure 3-44).
