Cables and Connectors

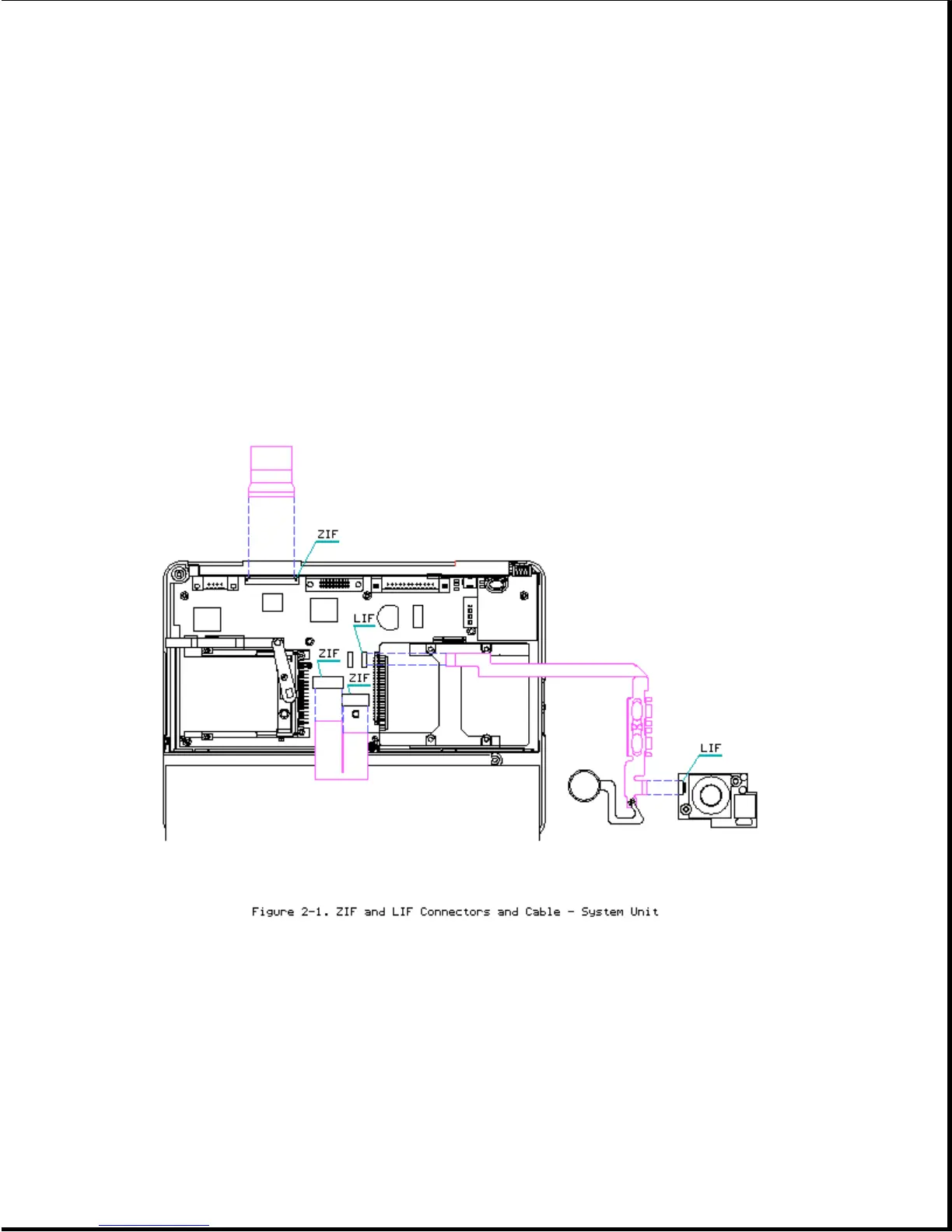

Most cables used throughout the unit are flex cables (Figures 2-1, 2-2,
2-3). These cables must be handled with extreme care to avoid damage. Apply
only the tension required to seat or unseat the cables during insertion or
removal from the connector. Handle cables by the connector or pull tabs
whenever possible. In all cases, avoid bending, twisting, or tearing the
cables, and ensure that cables are placed in such a way that they cannot be
caught or snagged by parts being removed or replaced.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
When servicing these units, ensure that cables are placed in their proper
location during the reassembly process. Improper cable placement can cause
severe damage to the unit.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
