1. Align the slot in the battery pack with the rib inside the computer.
2. Insert the battery pack, with the battery contacts facing to the inside
of the battery compartment.
3. Push firmly on the battery pack until it slides into place.
4. Slide the battery door on until the lock snaps into place.
Chapter 3.5 Removing The Cpu Cover
To remove the CPU cover, follow these steps:
1. Remove the battery pack (Figure 3-2).
2. Turn the computer upside down.

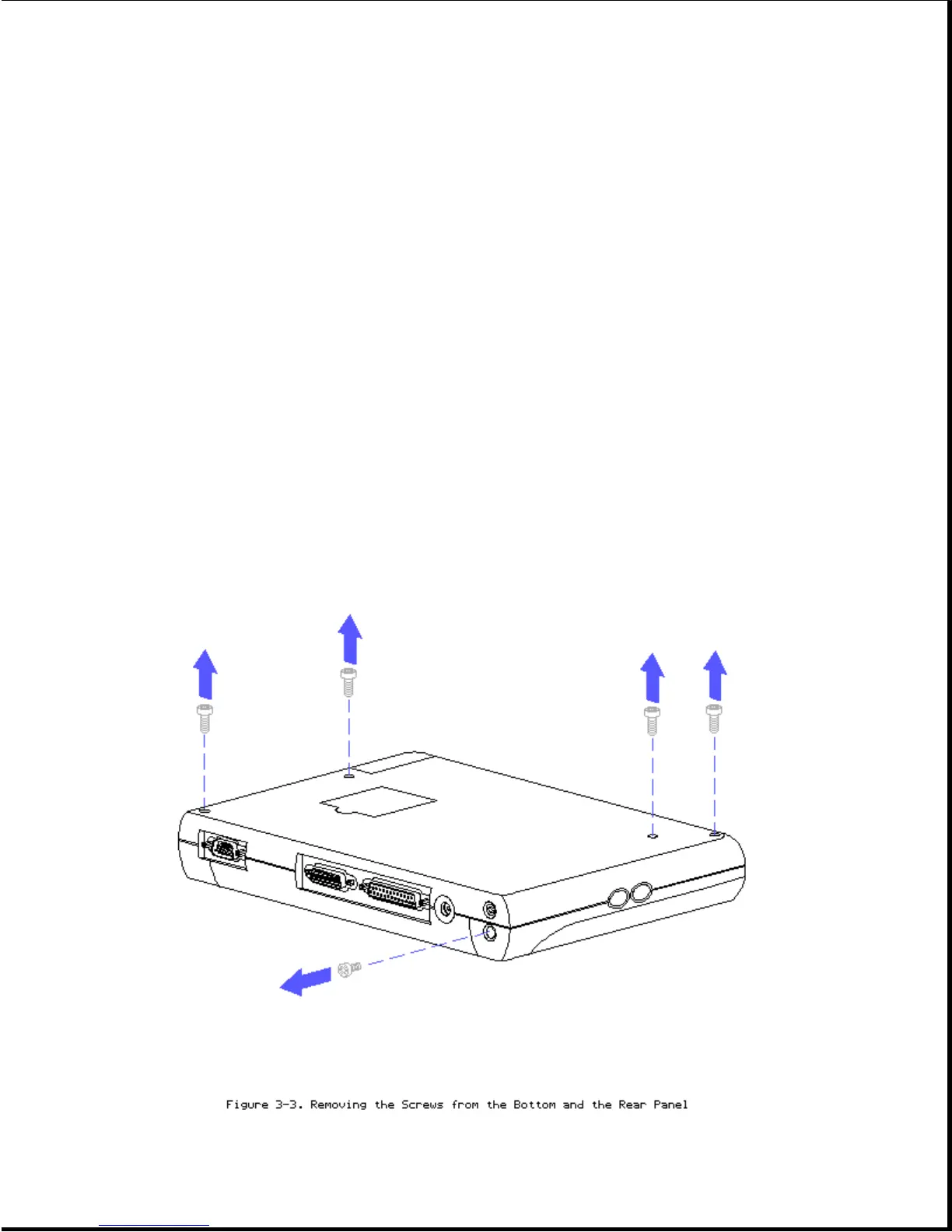

3. Remove the four screws from the bottom of the computer (Figure 3-3).
4. Remove the screw from the clutch on the display enclosure in the rear of
the computer (Figure 3-3).
5. Turn the computer right side up.
