Compaq CONTURA AERO - Chapter 3.7 Removing The VGA Backlit Display

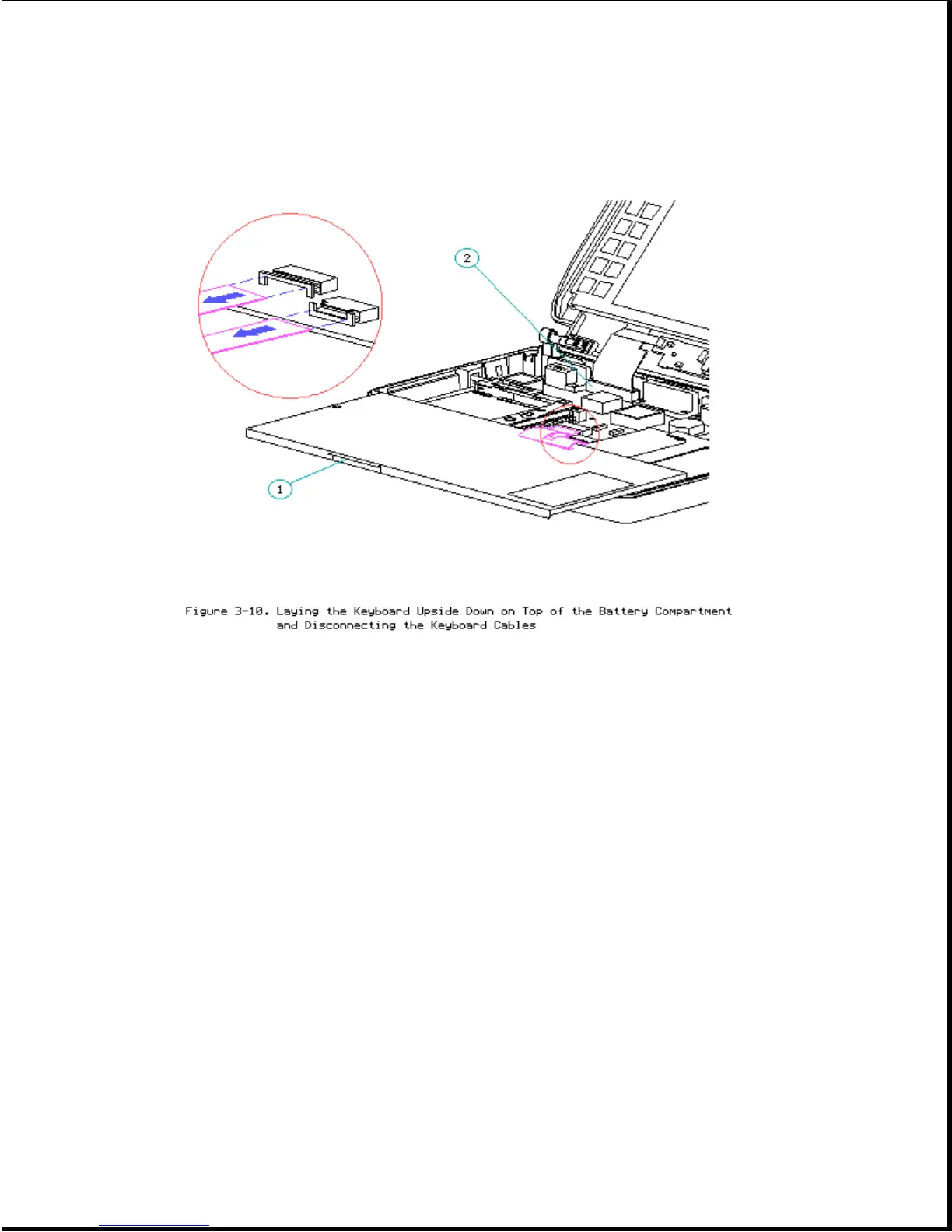

6. Using the Case utility tool, carefully lift up on the two ZIF sliders
one at a time to release the keyboard cables (Figure 3-10).
7. Carefully lift the keyboard out of the computer.
To replace the keyboard, reverse the previous steps.
NOTE: When replacing the keyboard, position the clip on the rear of the
keyboard [1] on top of the display cable ZIF slider [2]
(Figure 3-10).
Chapter 3.7 Removing The VGA Backlit Display
Compaq Contura Aero 4/25 Display
To remove the monochrome VGA backlit display from the Compaq Contura
Aero 4/25 Personal Computer, follow these steps:
1. Remove the battery pack (Section 3.4).
2. Remove the display bezel and the CPU cover (Section 3.5).
