Liquid Crystal Display Panel
To remove the backlit liquid crystal display (LCD) panel, follow these
steps:
1. Remove the display bezel (Section 3.5).

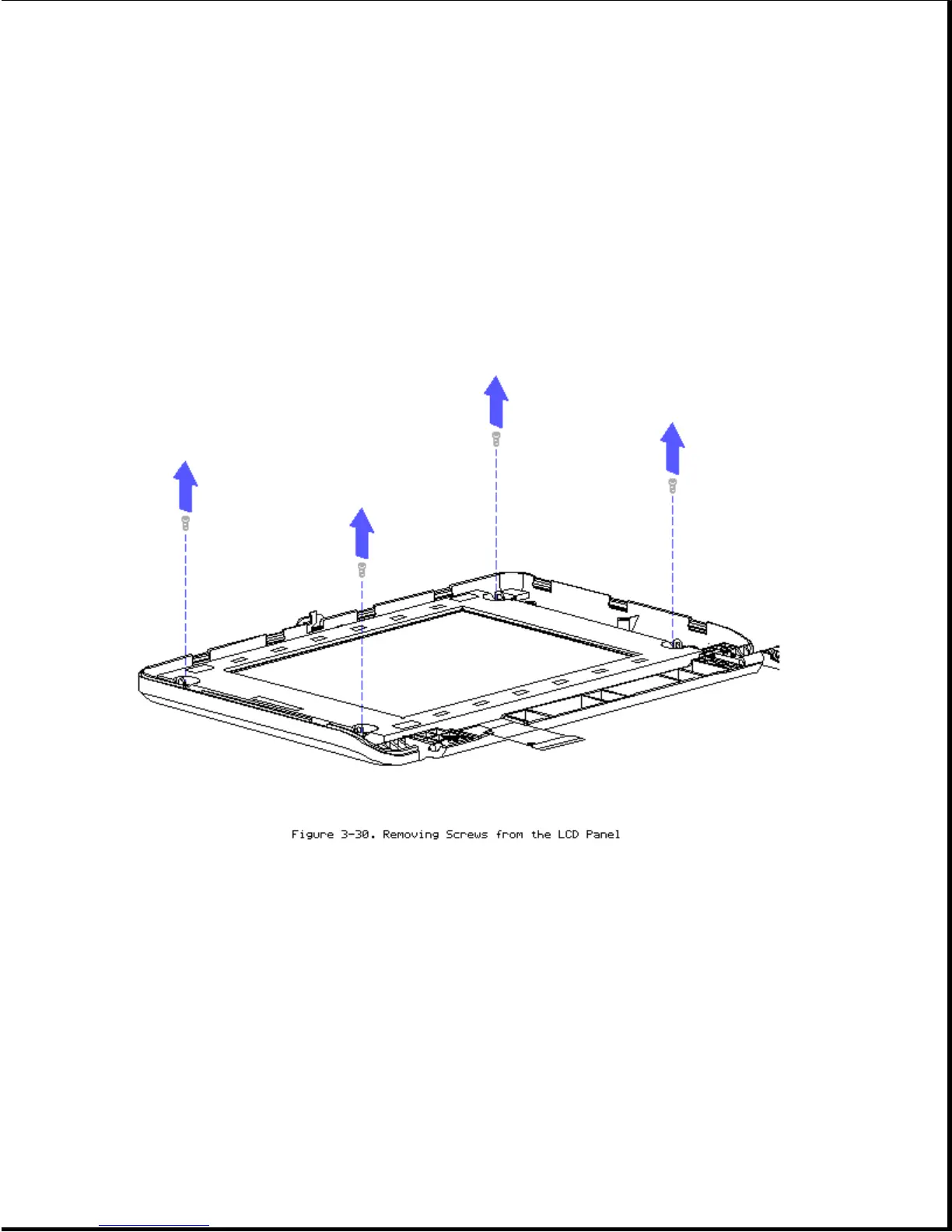

2. Remove the remaining four screws that secure the LCD panel to the
display enclosure and carefully bend back the tabs that secure the
display shield to the LCD panel (Figure 3-30).
3. Carefully rotate the LCD panel to the left and out of the display
enclosure (Figure 3-31).
