To replace the display shield, lay it inside of the display enclosure.

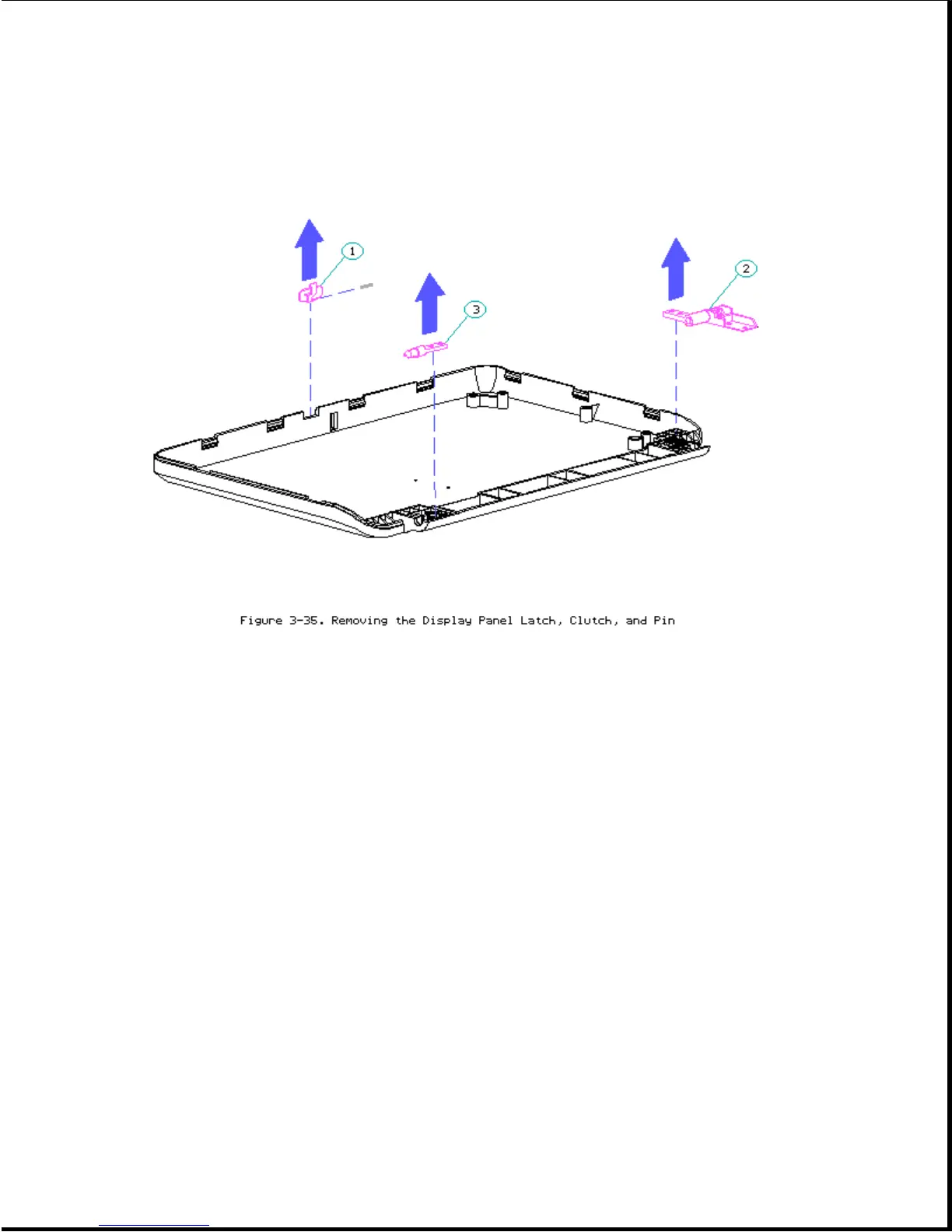

To replace the latch, attach the spring to the latch and snap them into the
display enclosure.
Chapter 3.8 Removing The DC-DC Power Supply
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Before removing the CPU cover, be sure the AC Adapter is unplugged and the
battery pack is removed from the battery compartment. If the battery pack
remains in the battery compartment, it will damage the power supply.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
To remove the power supply, follow these steps:
1. Remove the battery pack (Section 3.4).
2. Remove the display bezel (Figures 3-5 and 3-7).
3. Remove the CPU cover (Section 3.5).
4. Remove the keyboard (Section 3.6).
