Internal Components (Intel 815E Chipset)

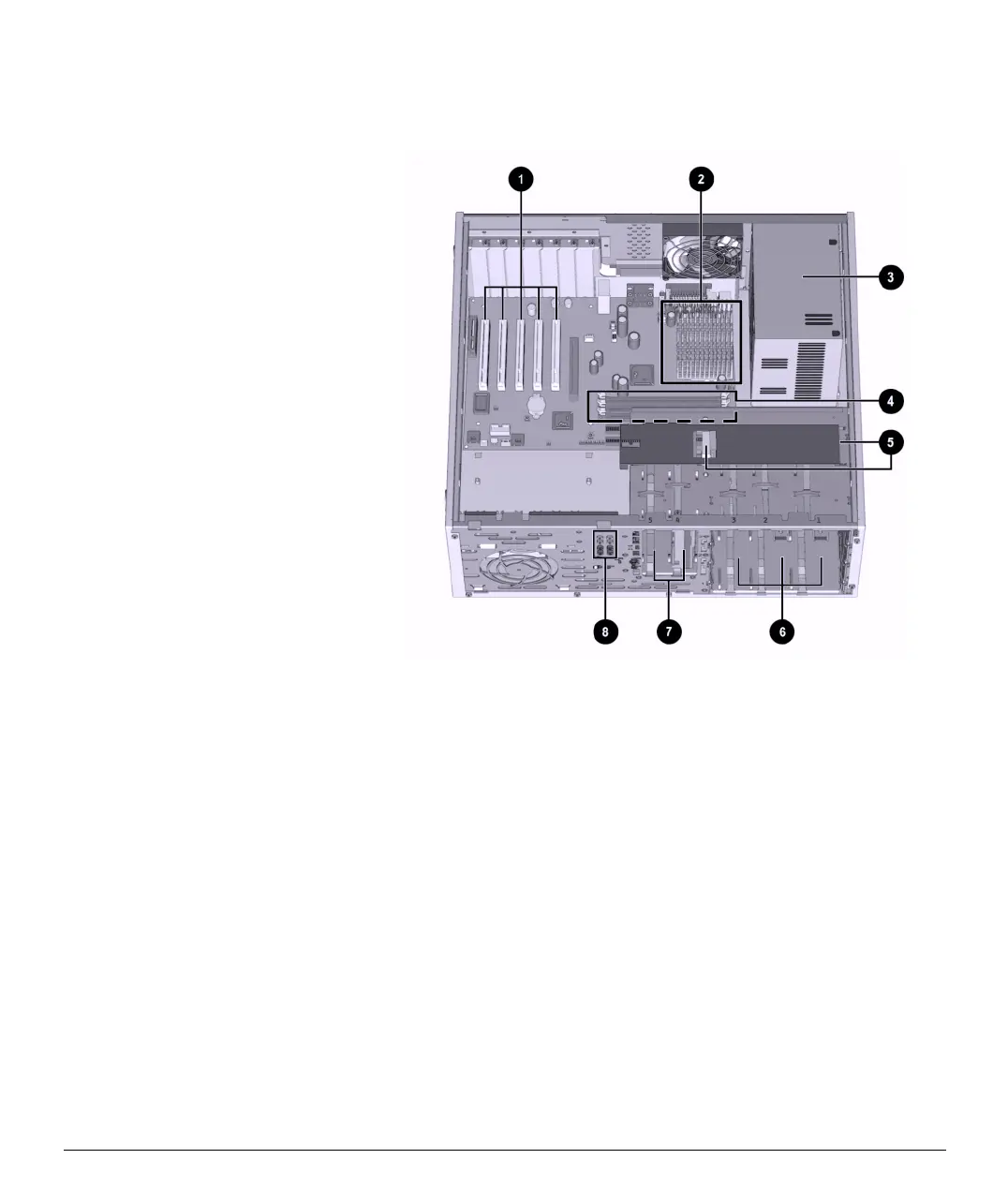

Intel 815E Chipset–Based Internal Components
1 PCI expansion slots
2 Processor
3 Power supply
4 Memory module sockets
5 Drivelocks
6 External drive bays (diskette drive is always in bay 3)
7 Internal hard drive bays (bays 4 and 5)
8 Extra drive mounting screws
✎
The number and position of expansion slots may vary by model, as
shown.
