4. Connect the opposite end of the cables to the appropriate system
board connector.
5. Replace the computer access panel.
6. Reconfigure the computer, if necessary. Refer to Chapter 1,
“Installation Guidelines,” for more information.
Removing a Drive from the Drive Bay
1. Shut down the operating system properly, then turn off the
computer, disconnect the power cord from the power outlet, and
remove the computer access panel.
2. Remove the front bezel.
3. Disconnect the drive power and signal cables and, if it is a
CD-ROM or DVD-ROM drive, disconnect the audio connector.
4. Press drivelock mechanisms (1 or 2) to unlock the drive in the
drive bay.

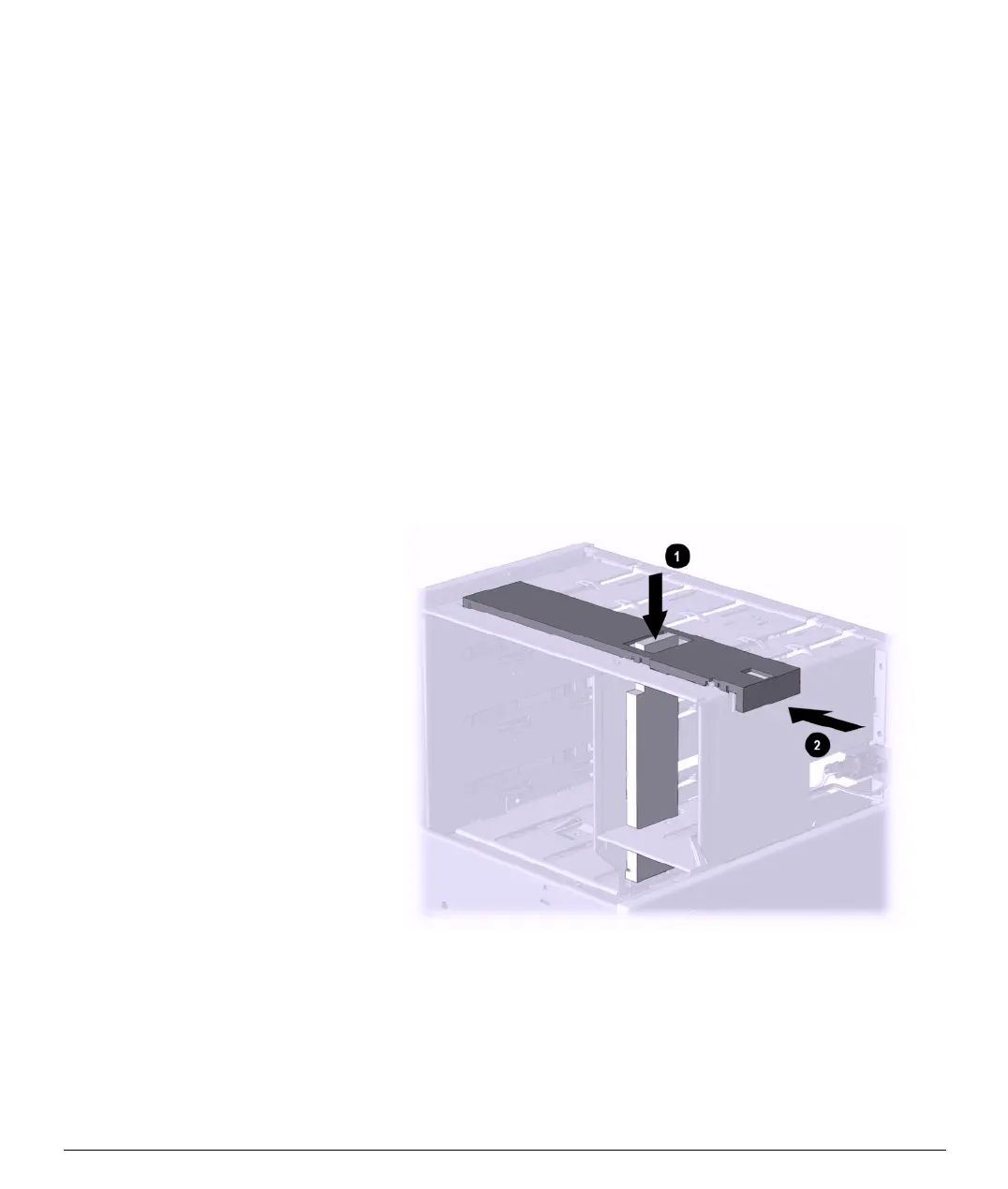

Drivelock 1 Secures the 5.25-Inch Drives in the Desktop and 2 Secures All
Drives in the Minitower (Shown from the Rear of the Chassis)
