Compaq EN Series Hardware Reference Guide

2-14 Hardware Upgrades
Compaq Confidential - Need to Know Required
Writer: Kristen Cover Part Number: 178147-002 File Name: e-UpgradesCMT.doc
Last Saved On: 08/21/00 8:40 AM Last Saved By: Martha Rockecharlie
4. Open both latches of the memory module socket 1, and insert the
memory module into the socket 2.
Begin by installing a module into the socket nearest the
preinstalled module, and install the modules following the
numerical order of the sockets.
A memory module can be installed in only one way. Match the
notch on the module with the tab on the memory socket. Push the
module down into the socket, ensuring that the module is fully
inserted and properly seated 3.

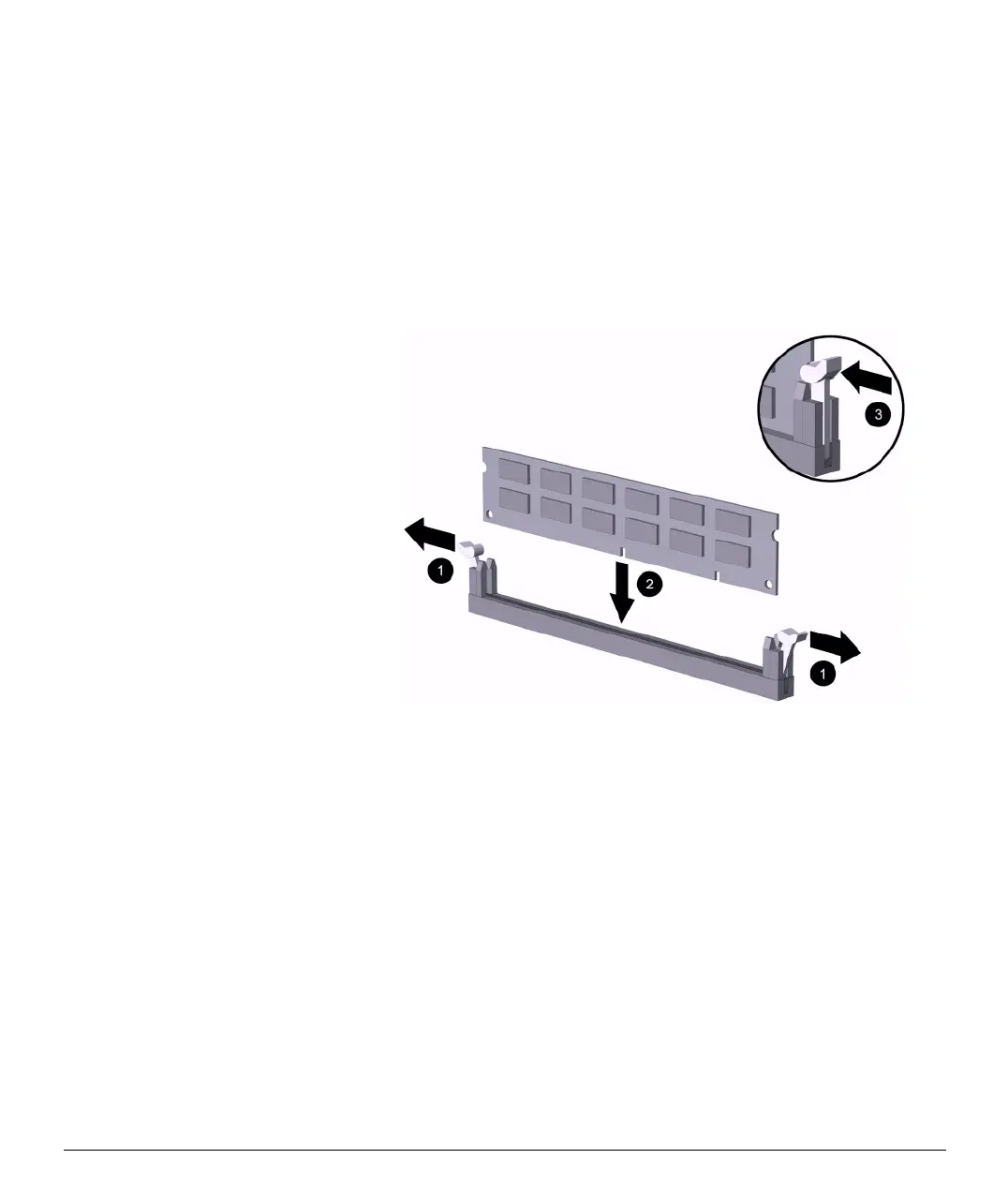

Installing a DIMM
