C-2 Battery Replacement
Compaq Confidential - Need to Know Required
Writer: The Integrity Group Part Number: 123456-001 File Name: f-appc.doc
Last Saved On: 07/26/00 1:01 PM Last Saved By: Martha Rockecharlie
3. Locate the battery and battery holder on the system board, as
shown in the following illustration.

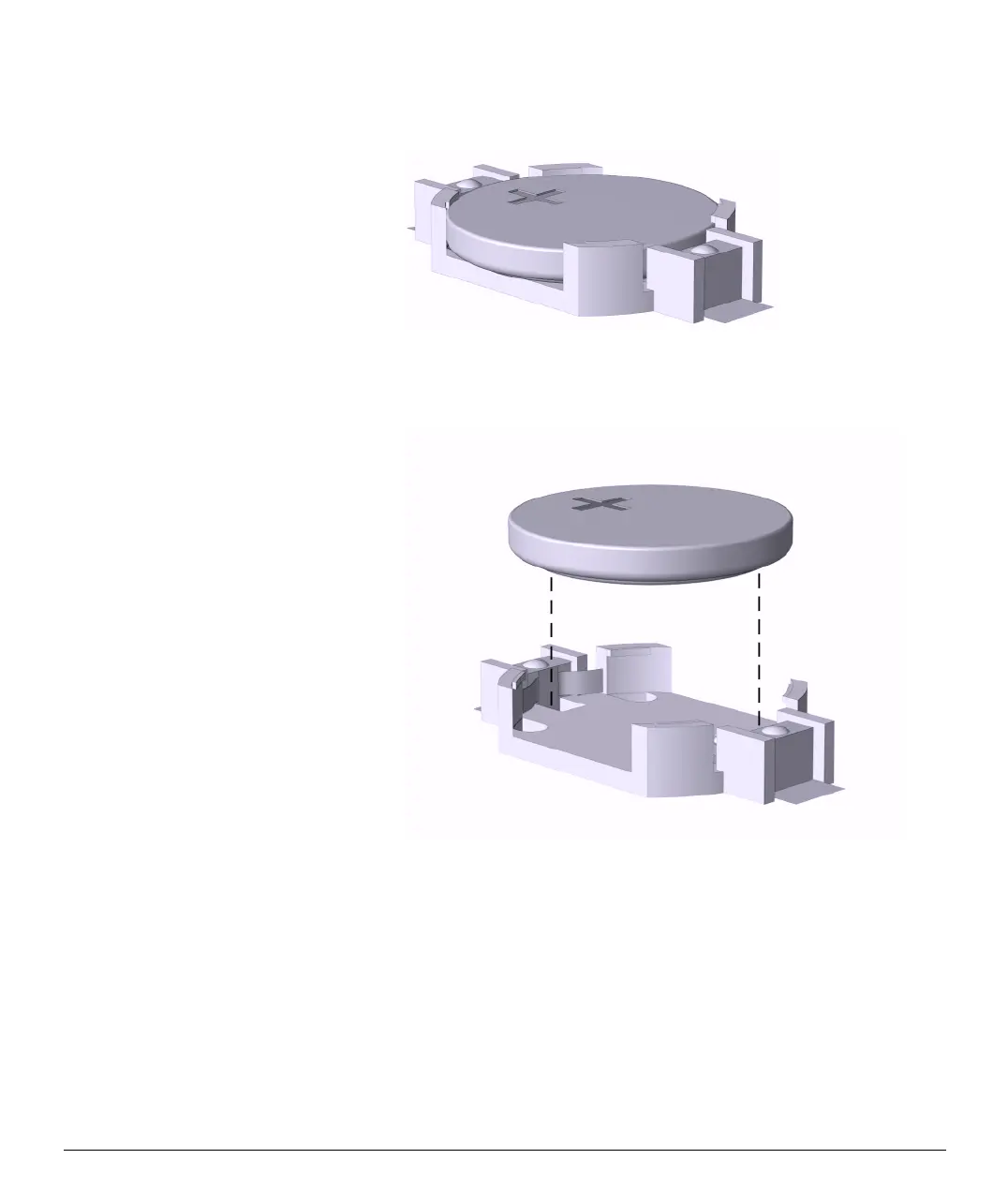

Battery and Battery Holder
4. Lift the battery out of its holder.
Removing the Coin Cell Battery
5. Slide the replacement battery into position, positive side up.
The battery holder automatically secures the battery in the proper
position.
To Next Page
