Compaq Deskpro EP Series of Personal Computers 1-7

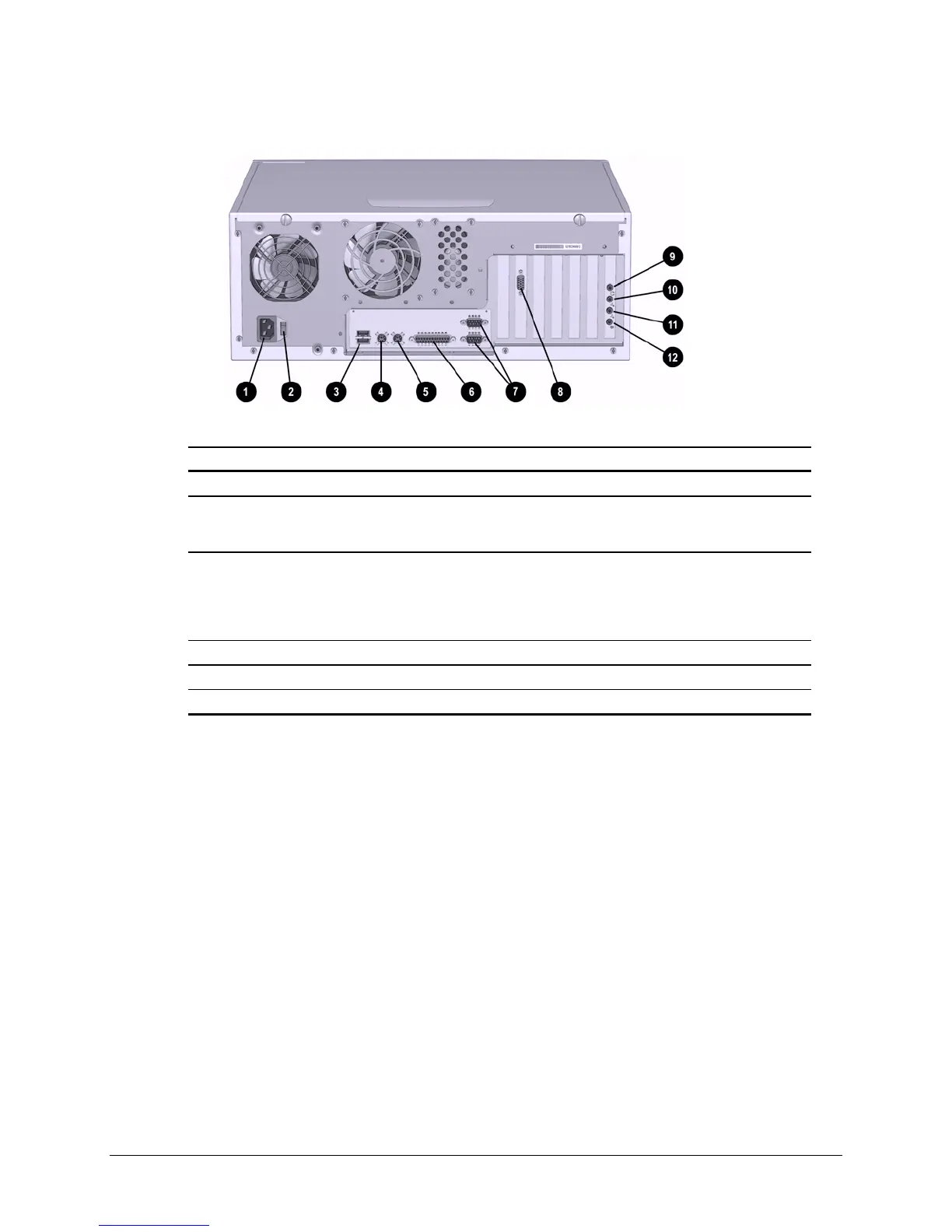

1.4.3 Rear Panel Connectors - 440BX
Rear Panel Connectors - 440BX
Ref. Component Component
1
Power Cord Connector
7
Serial Connectors (2)
2
Voltage Select Switch (switches
voltage between 115V and 230V to
match geographical requirements)
8
Monitor Connector
3
Universal Serial Bus (USB)
Connectors (2) (connects the
computer to any USB peripheral while
the computer is operating; is a fully
functional plug and play connector)
9
Headphone Connector*
4
Keyboard Connector
:
Line-Out Audio Connector*
5
Mouse Connector
;
Line-In Audio Connector*
6
Parallel Port Connector
<
Microphone Connector *
*
Audio features are available on select models only.
