4-12 Removal and Replacement Procedures
4.11 Mass Storage Devices
The Compaq Deskpro EP Series of Personal Computers support up to five drives in
various configurations.

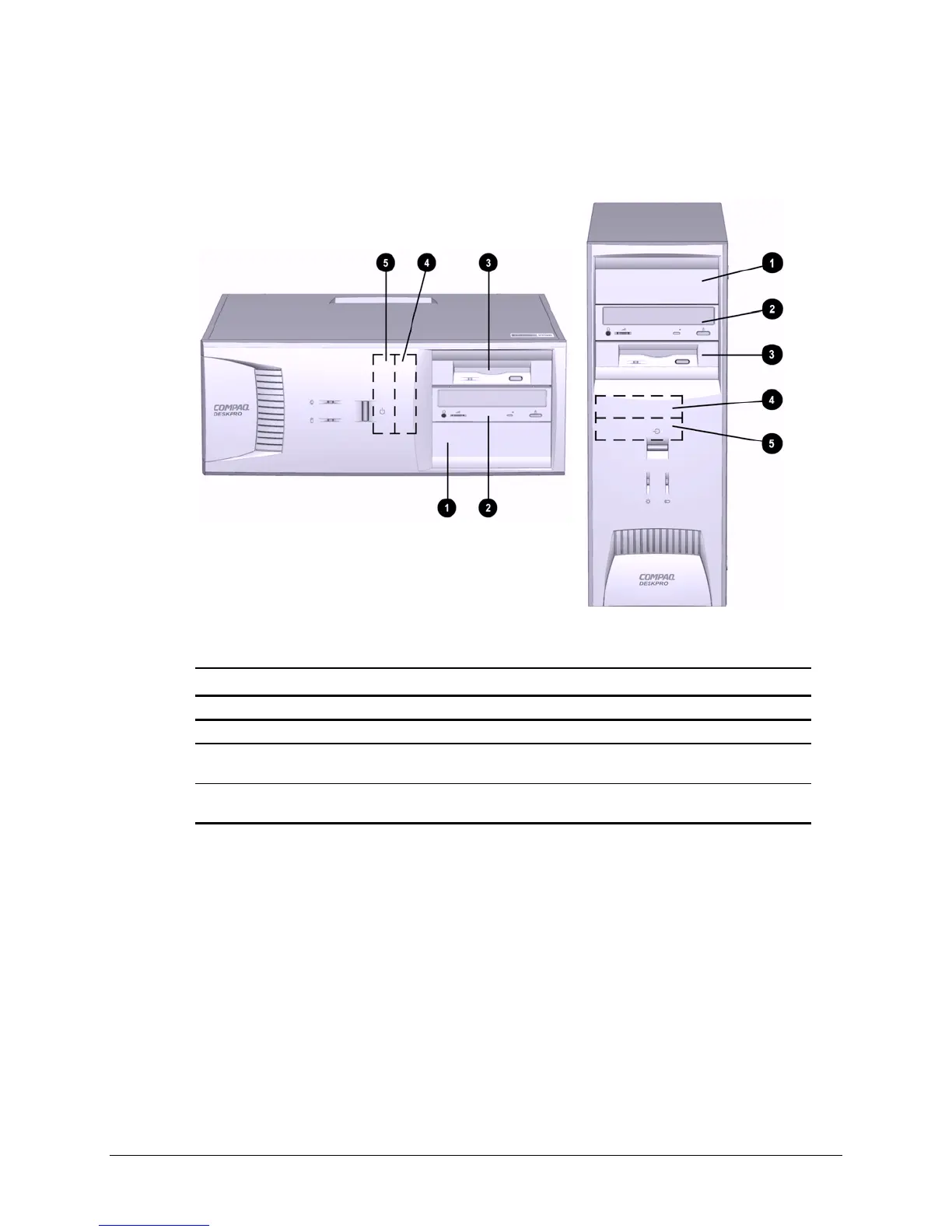

Drive Bay Locations
Drive Positions
Reference Drive Bay Configuration
12
1, 2 Two standard 5.25-inch, half-height bays for optional drives.
3
3
One standard 3.5-inch, 1.44-MB diskette drive mounted with a drive
adapter into a 5.25-inch bay.
45
4, 5
Two standard 3.5-inch drive bays; bay 4 contains the preinstalled
hard drive, bay 5 is available for an optional hard drive.
✎
Drive bay numbers are stamped on the chassis.
To verify the type and size of the mass storage devices installed in the computer, run
Computer Setup.
